Torque Rush X-Link Throttle Body Adapter Harness

Product details

• This X-Link adapter harness is used to adapt OEM 8 Pin GM Truck/SUV harness to GM 90mm Gold Blade, or Nick Williams 6 pin throttle bodies.
• This X-Link will ONLY work with Gold Blade GM throttle bodies or Nick Williams LS throttle bodies.
• Robust, all automotive class construction

• Maintains the independence of the two throttle position sensor signals
• Simple plug-n-play installation

• Works with your original throttle actuator control (TAC) module and pedal assembly

• Allows full throttle blade range to 100% wide open throttle

• Get the full potential out of draw-through superchargers like the Magna Charger Radix or TVS and the Kenne Bell and Whipple twin screws

• Allows use of 90mm electronic throttle on L76, L92, TBSS and FAST intake/induction swaps

• Simplifies L76, L92, LS2 and LS3 engine swaps into these LS1 vehicles

• Less restriction and improved airflow for turbocharged or high output naturally aspirated applications


Compatible with (based on vehicle 3D scans by ICT)

• X-Link works with either truck 87mm (e.g. Trailblazer SS or 08+ truck) or car style (e.g. Corvette) 90mm throttle bodies

Helpful Links

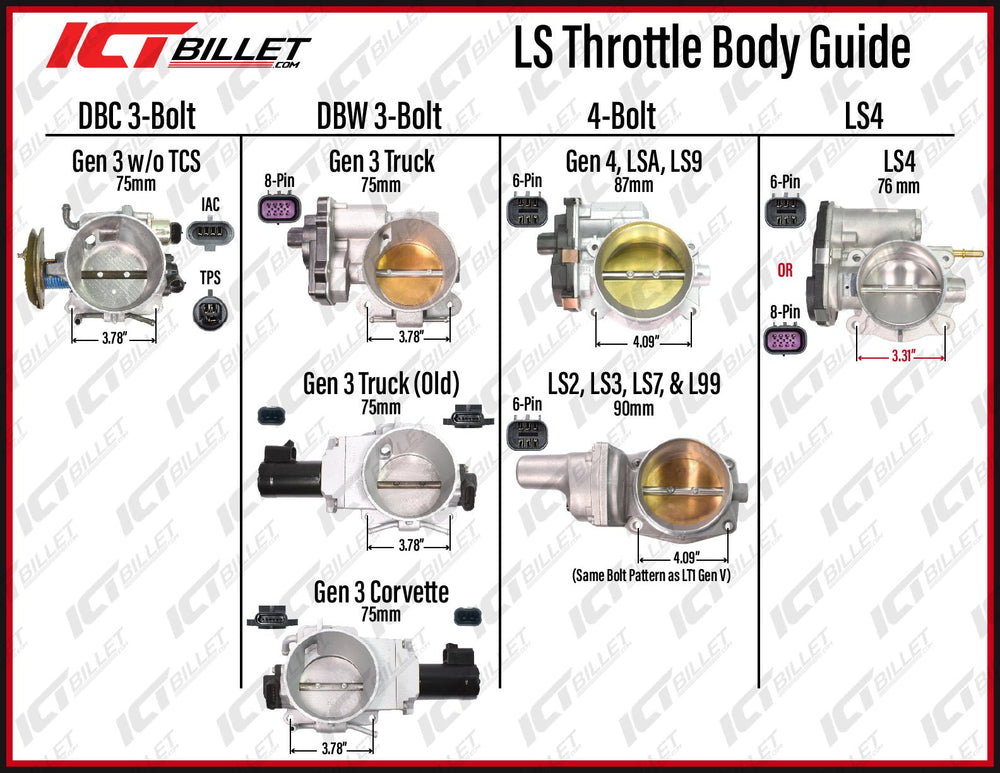

• Throttle Body Guide


Throttle Swap Signal Conversion Module for GM 03-07 full size V8 trucks and Holden
LS1 VZ cars – Connection to a LS4 SS car will permanently damage the X-Link
Use with GM/ACDelco 90mm LS3 or 87mm(Truck/LS9/LSA) gold blade and Nick
Williams LS 103mm, 112mm, or 120mm throttle bodies.
*Aftermarket magnetic sensor throttle bodies are not compatible with the throttle
control system in these vehicles.
