SBC Billet Low Mount Alternator Bracket (use w/ electric water pump)

Price
$48.99
SKU#: 551672E
In stock

Product Description

SBC Billet Alternator Bracket for Electric Water Pump

Will fit with V-belt pulleys

  • Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

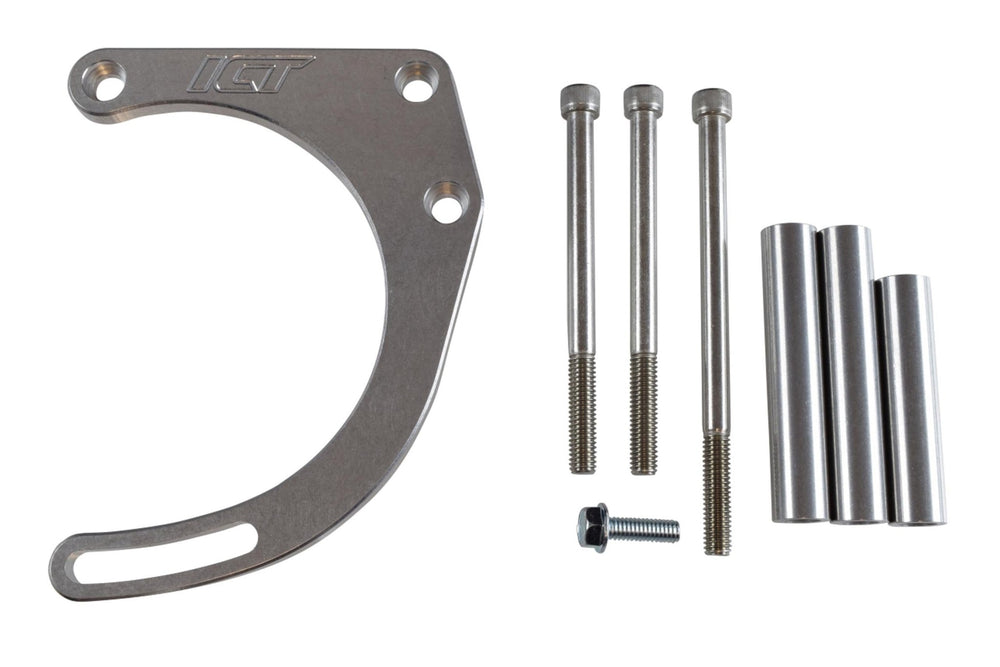

  • Includes: bracket, spacers, and bolts
  • Natural aluminum finish as shown
  • This kit must be used with Long Water Pump Pulleys.
  • Depending on thickness of water pump base, the spacers may need trimmed to fit certain applications

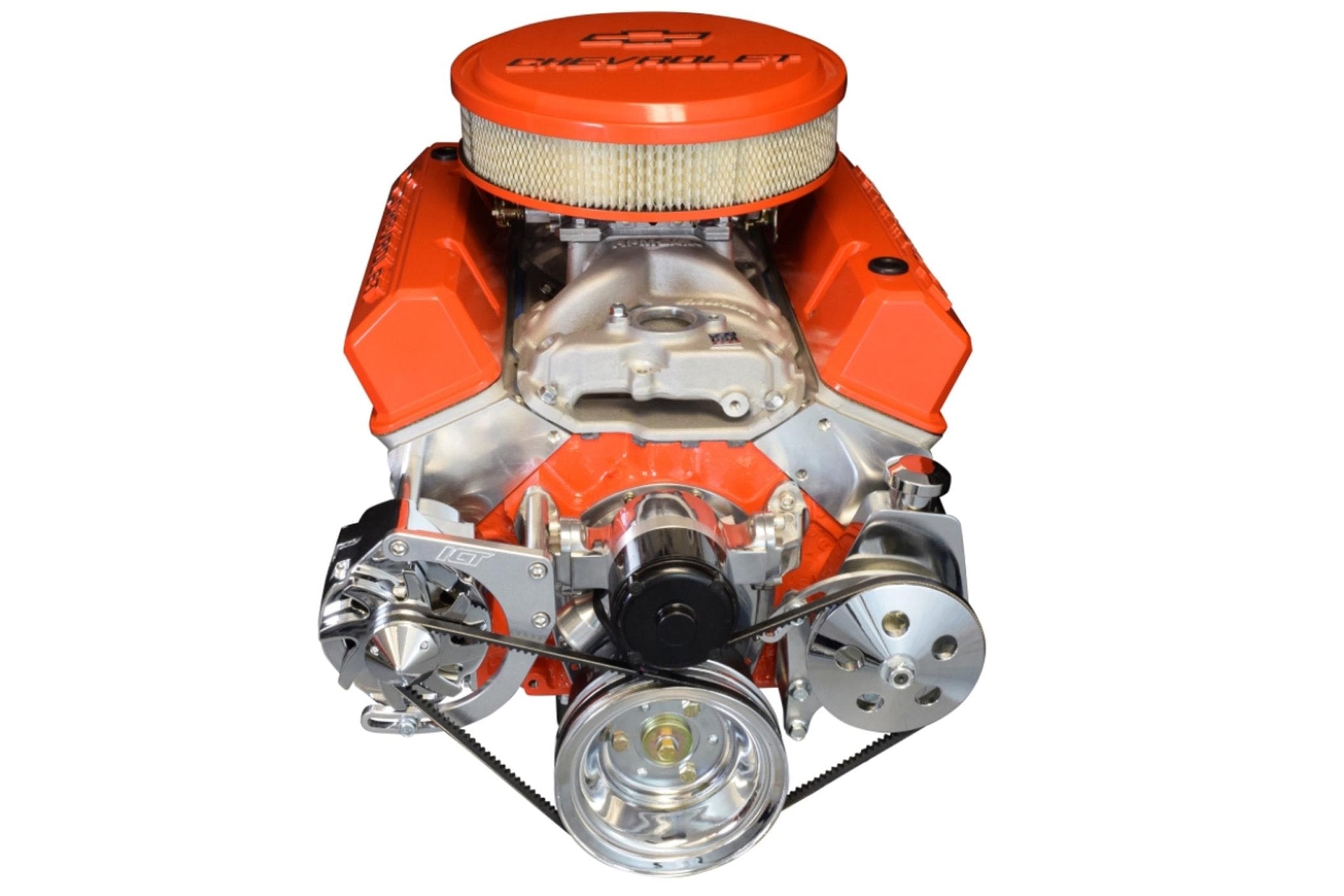

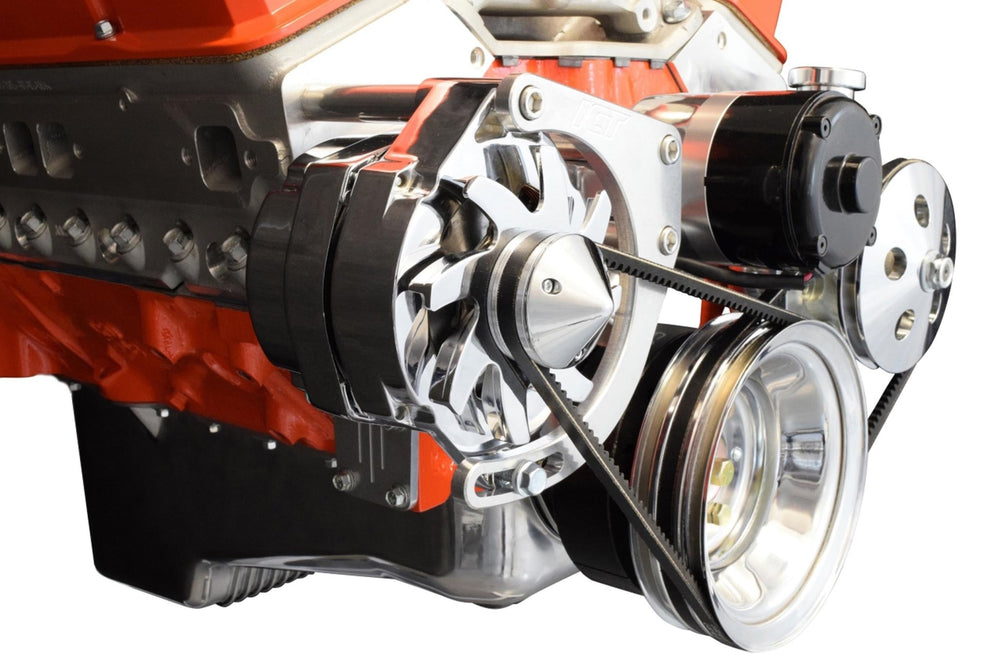

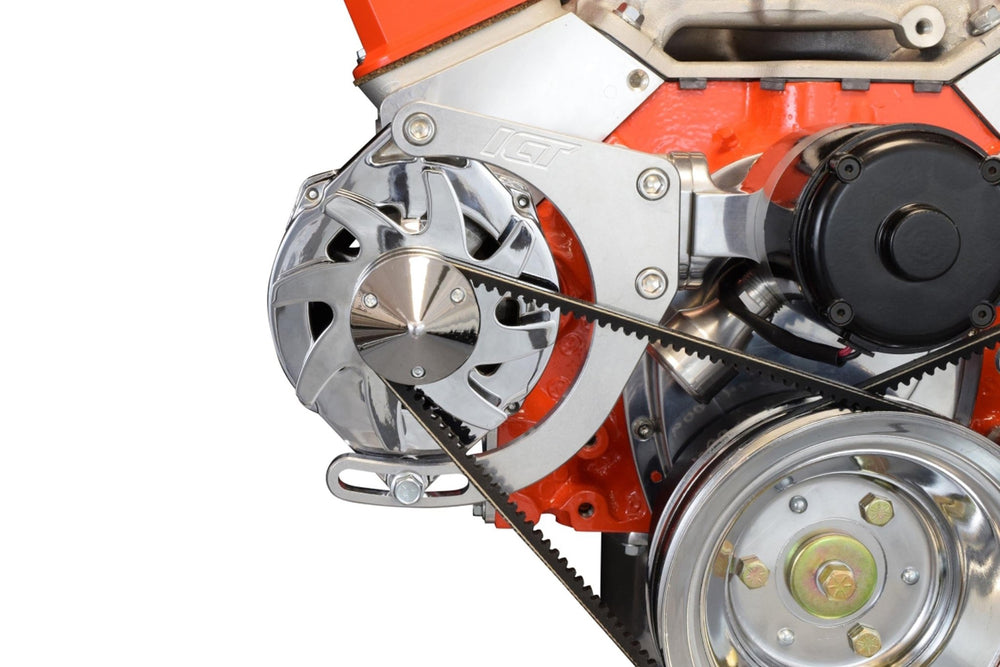

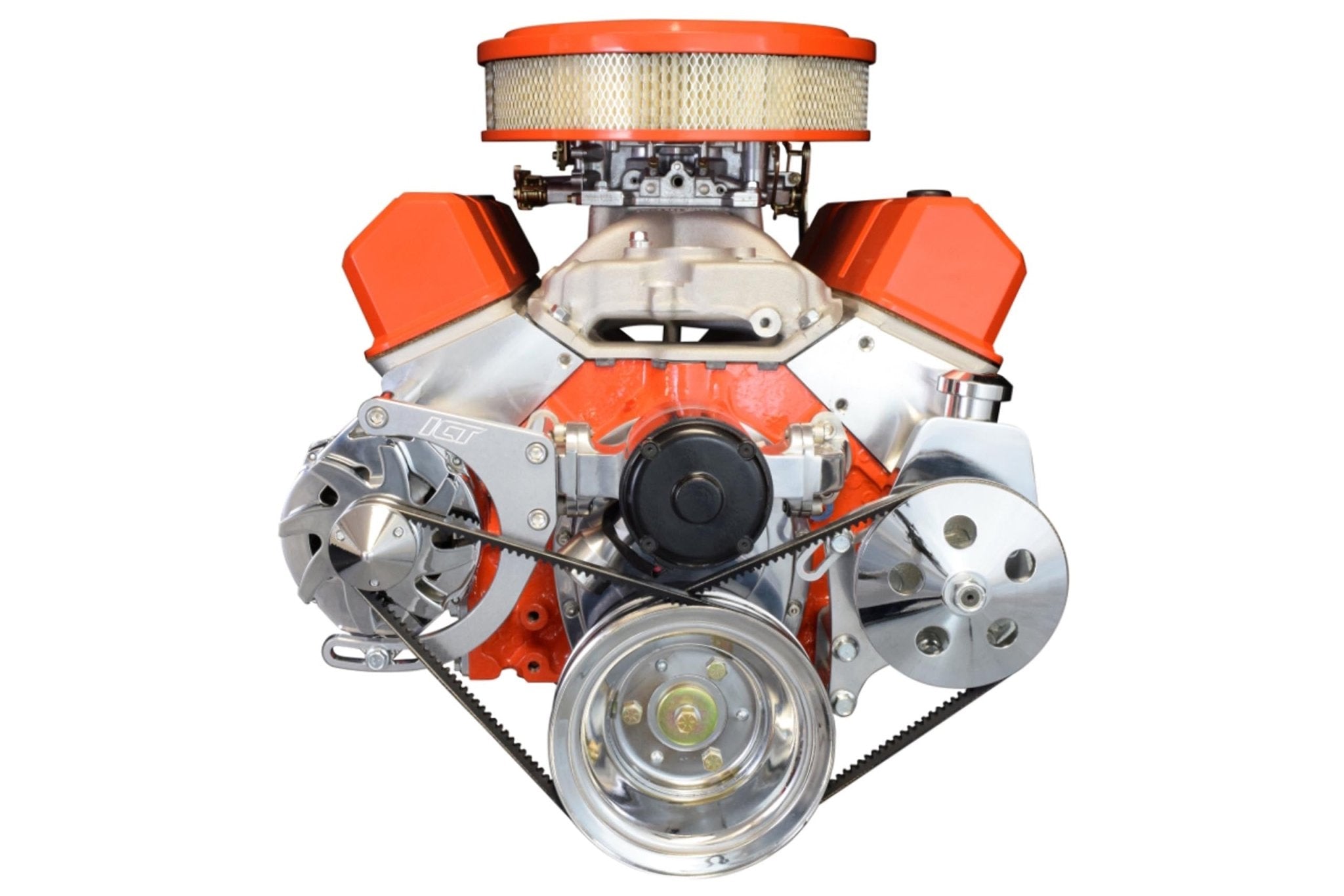

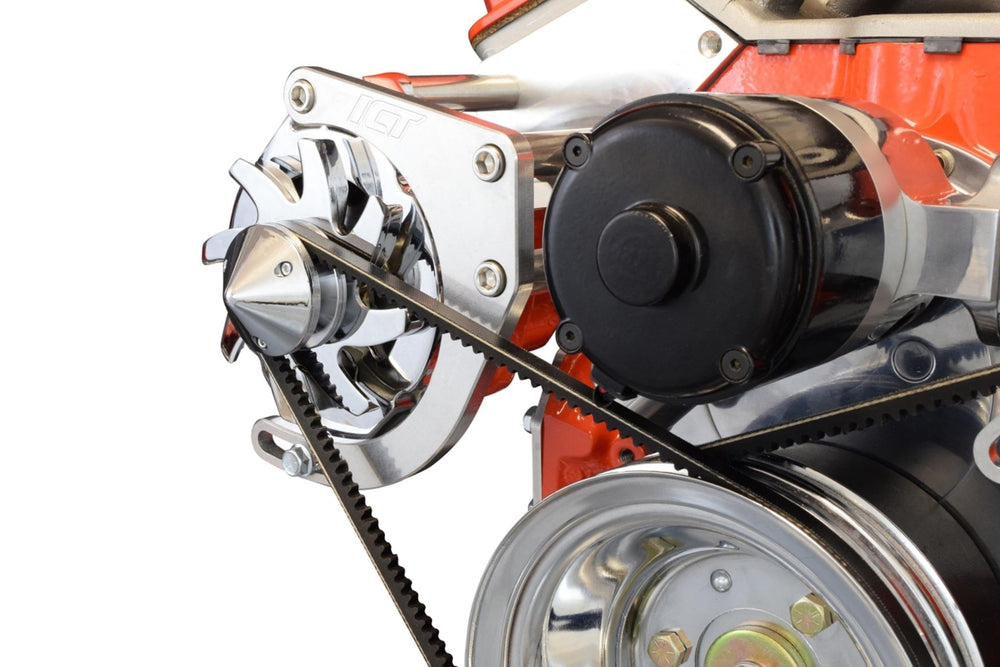

  • Shown with AC Delco alternator part # 335-1093
  • Compatible with Chevy alternators with 6.56 inch, center to center bolt holes (12si style alternators)

Compatible with 36.5 inch belt

Suggested Crank Pulley Part #14023148

*not compatible with CVR 7550 electric water pump

Earn [points_amount] when you buy this item.
WARNING Prop 65 >>

More Information

PRODUCT SPECIFICATION

ICT Manufacturer Manufacturer Part Number UPC Weight Length Inches Width Inches Height Inches Downloadable PDF for Vehicle
ICT Billet 551672E 81.0 1.5 lb 6 in 8 in 2 in No
