Alternator and Power Steering Relocation Bracket Kit LS1 Truck Spacing

LS Alternator and LS1 Power Steering Pump Relocation Bracket Kit (Uses LS1 Water Pump)

Fits LS Series Engines - LSX 4.8L 5.3L 6.0L

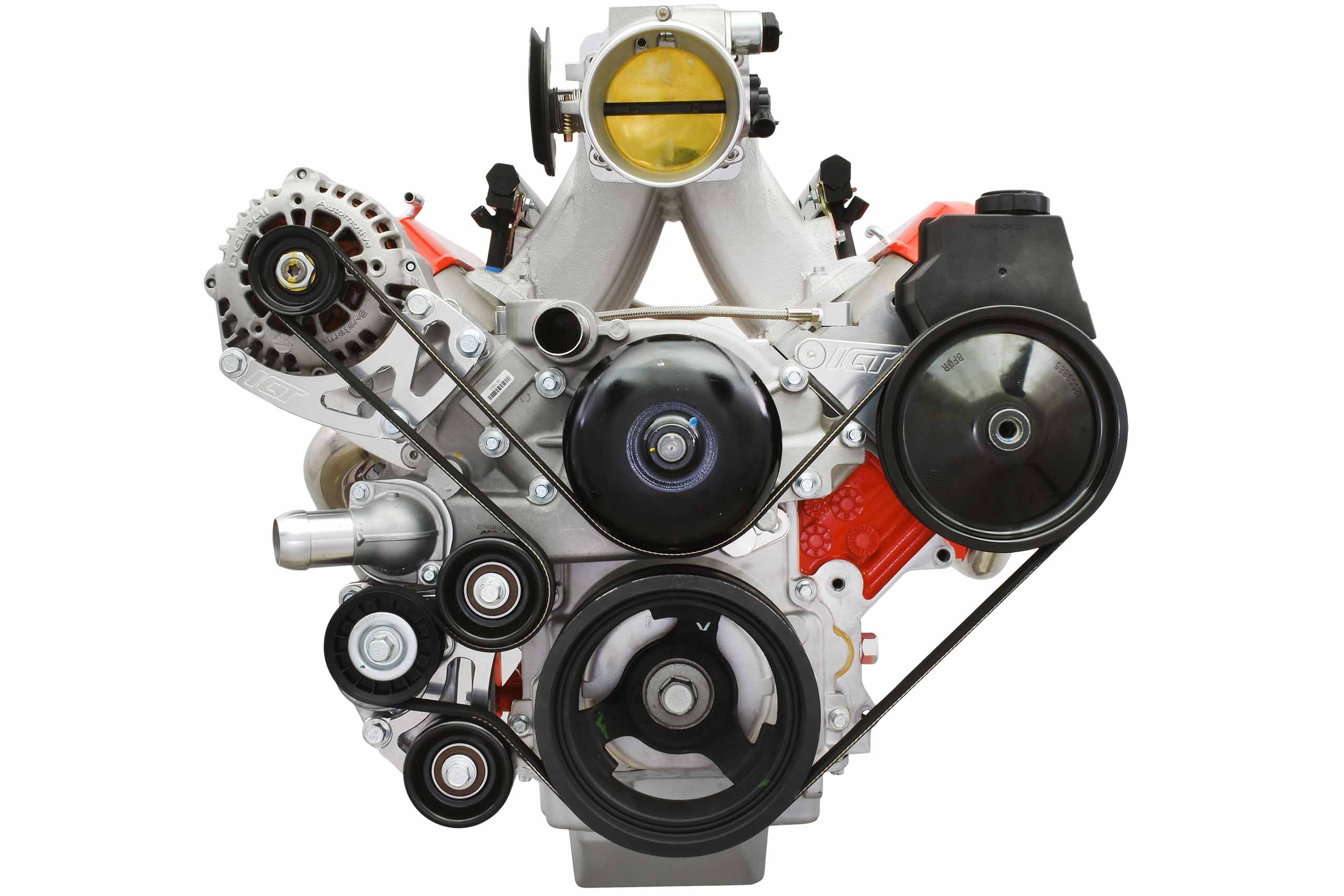

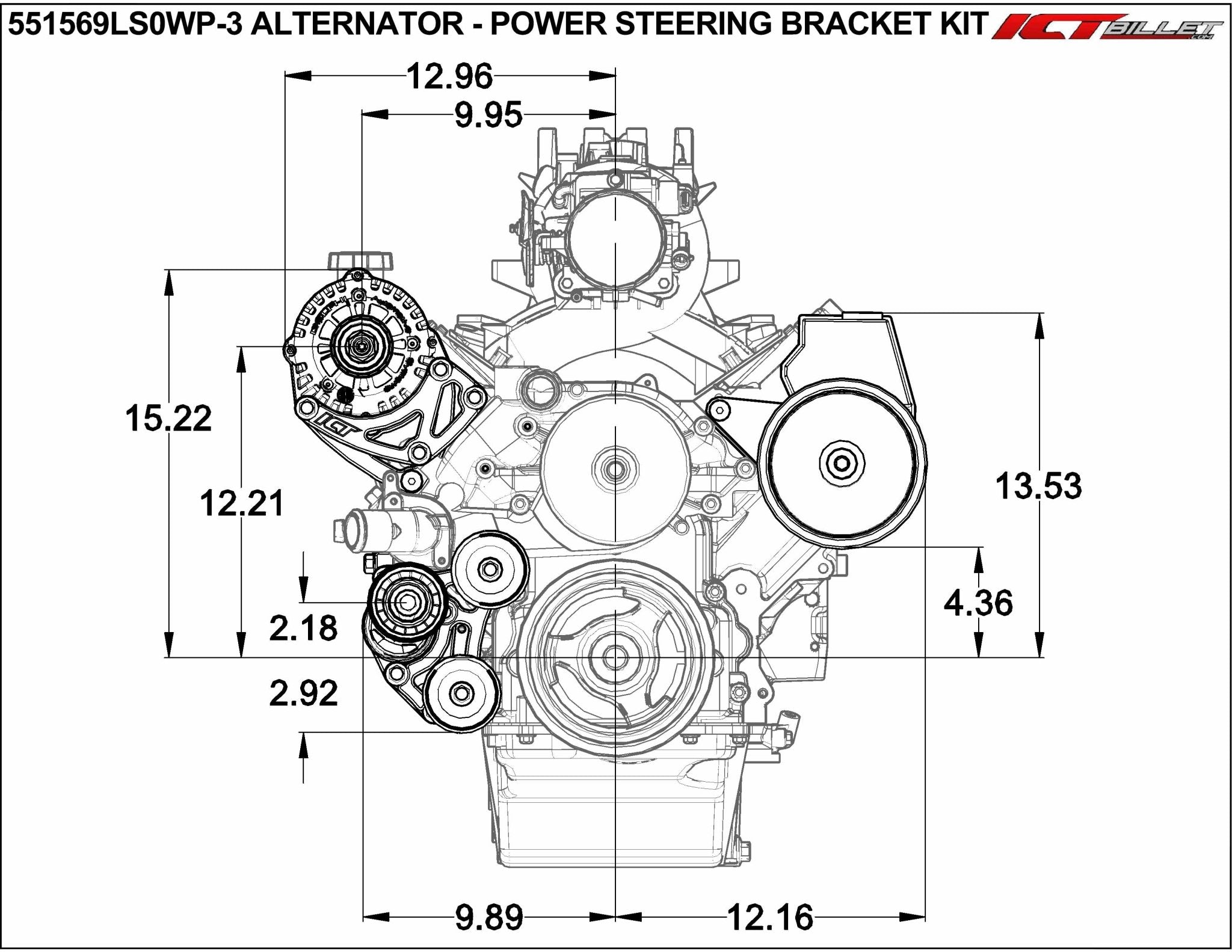

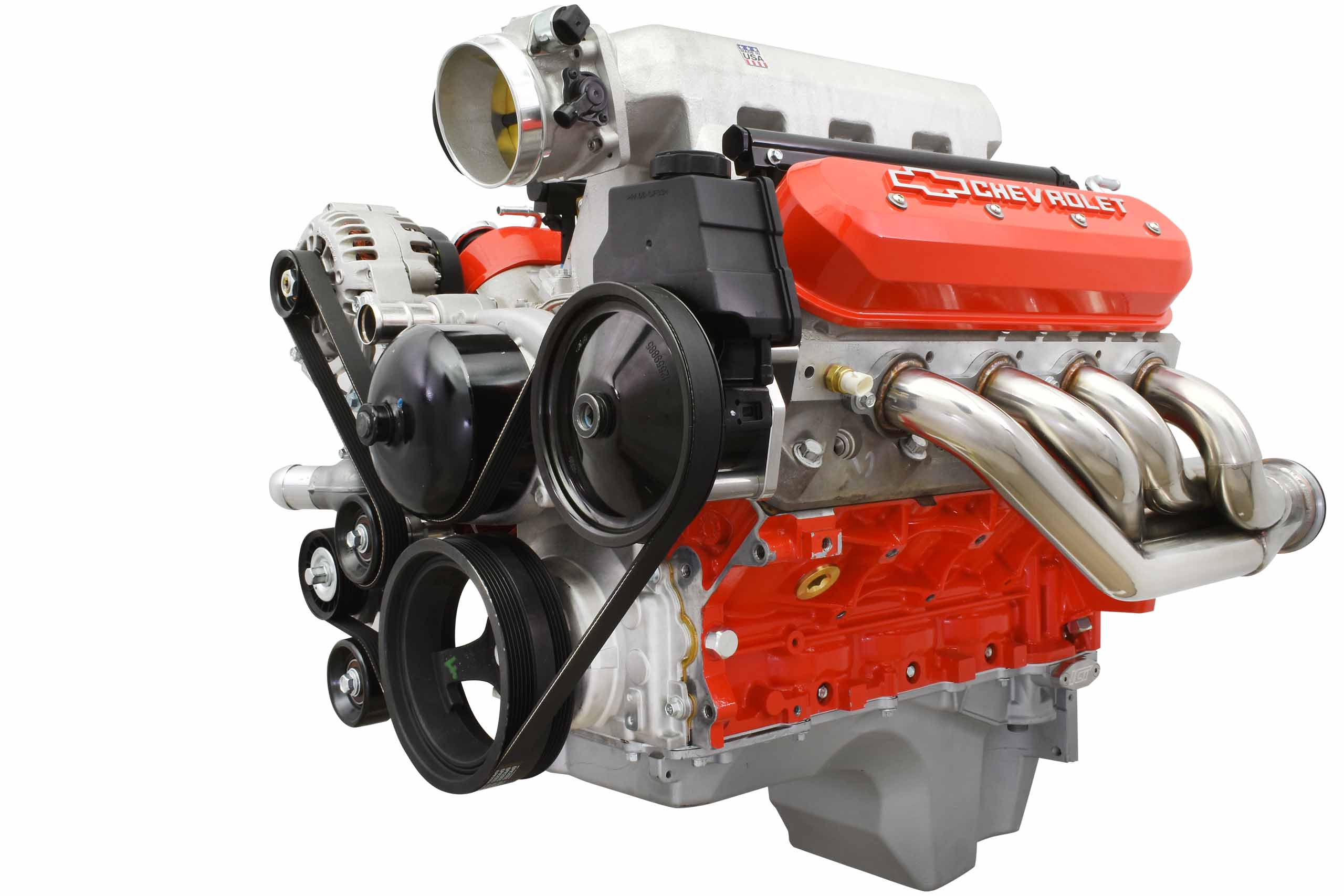

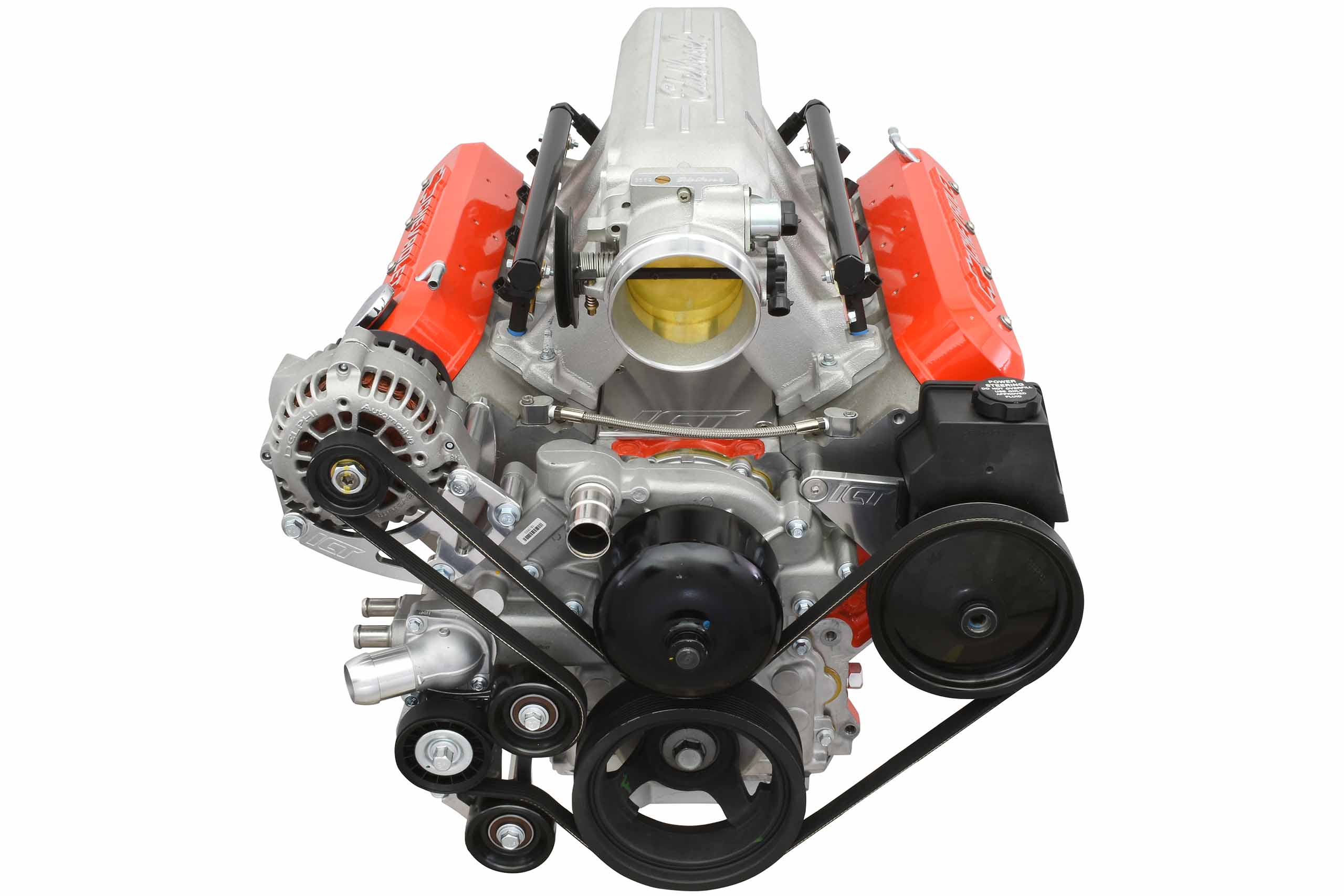

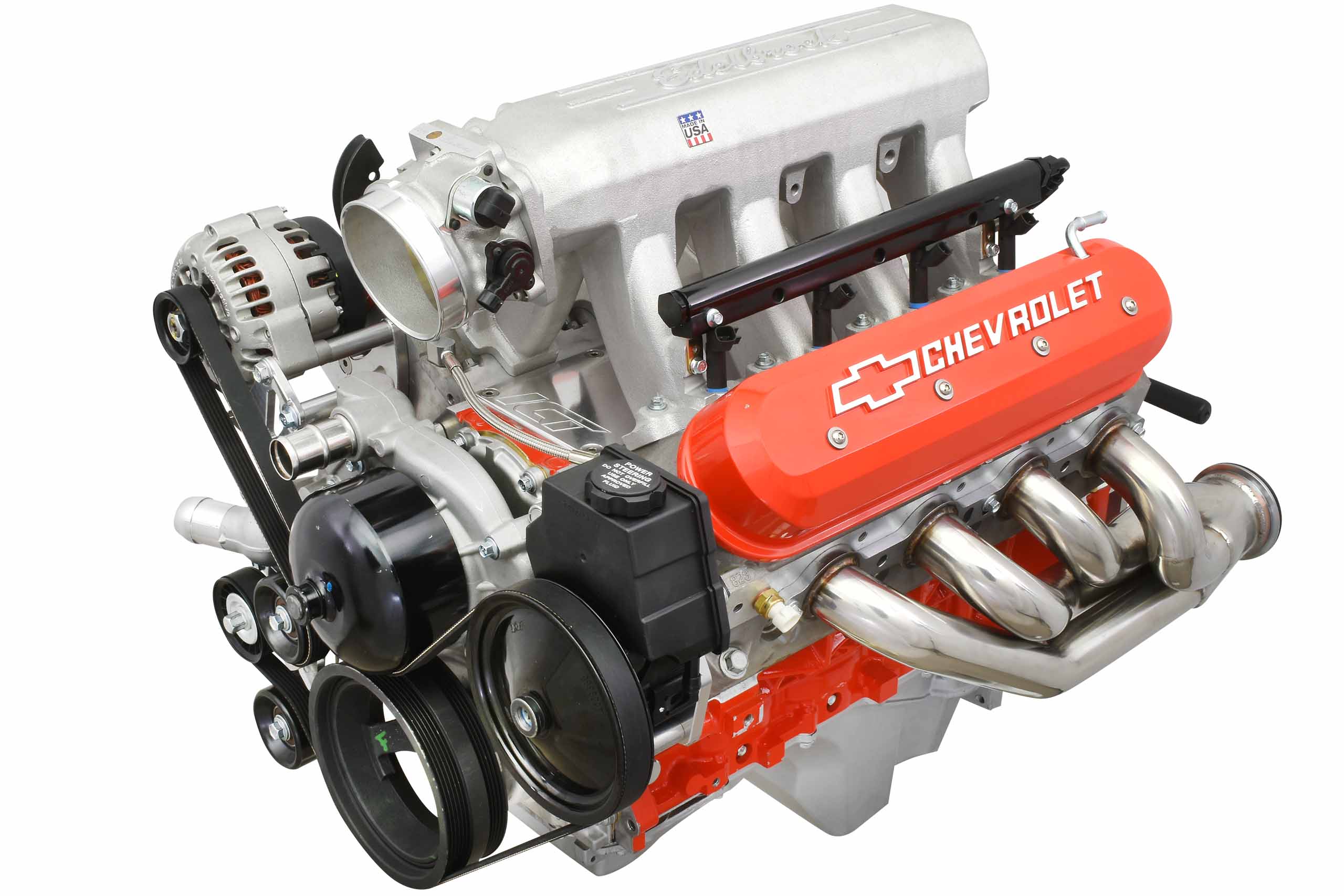

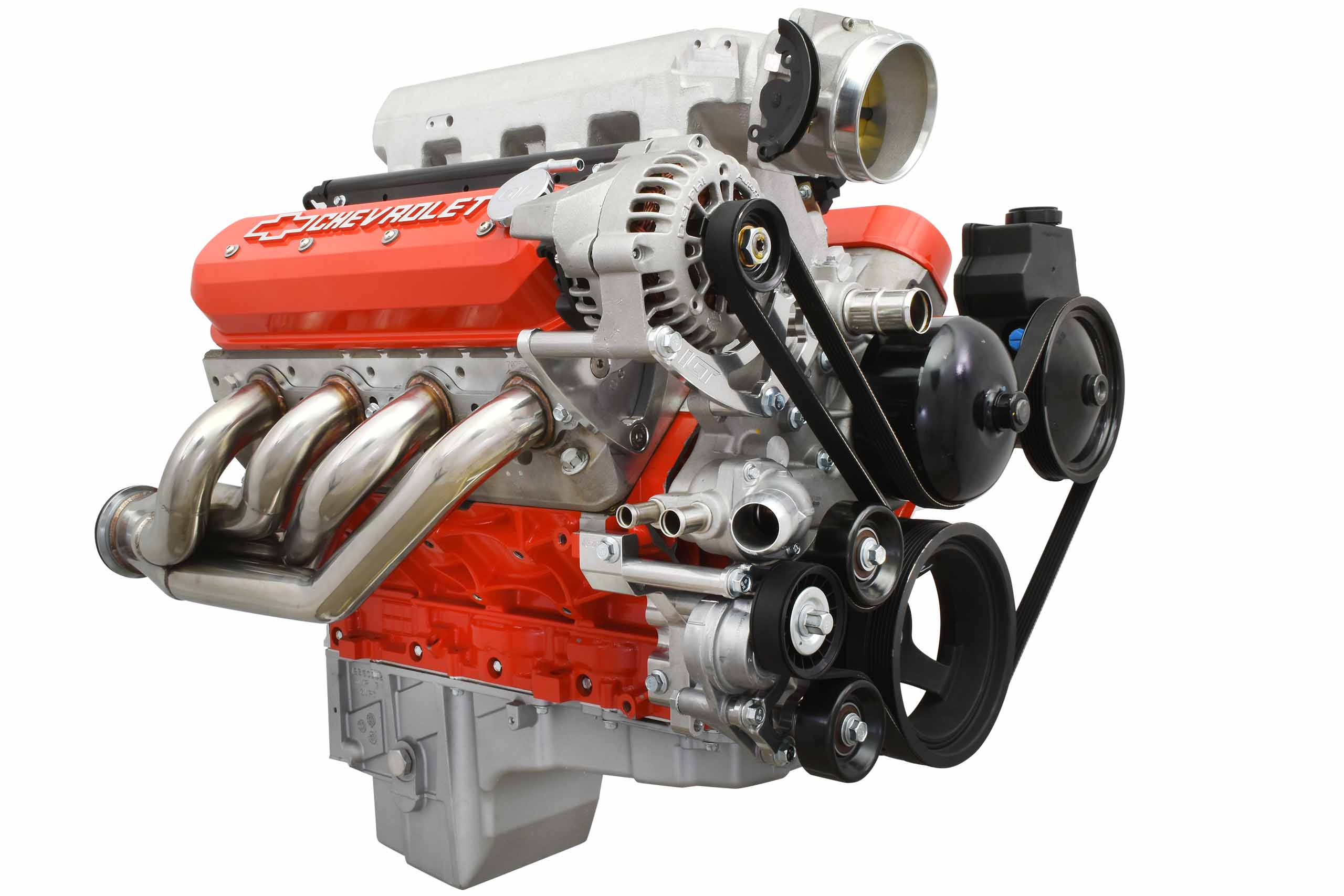

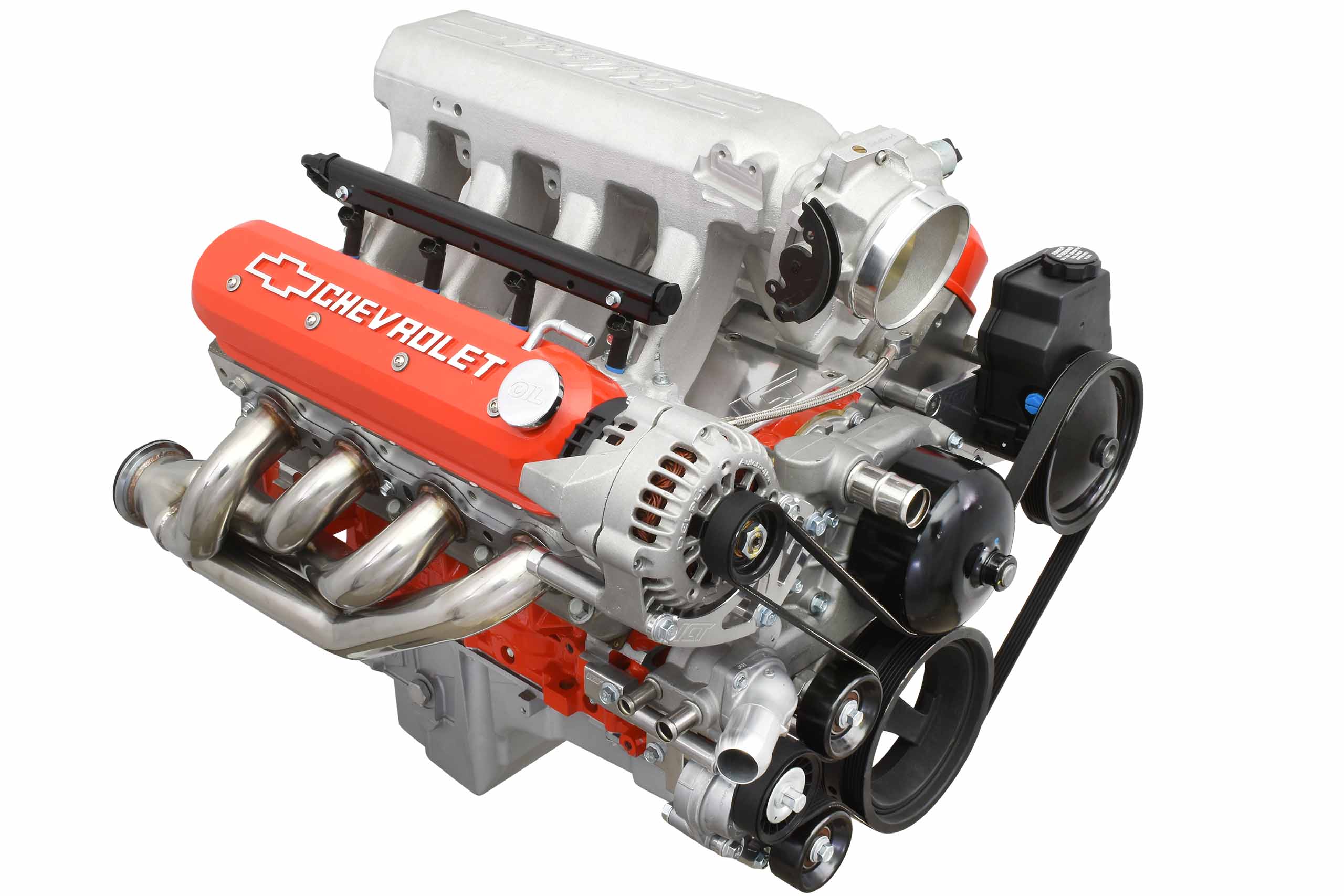

• This kit relocates your LS alternator and LS1 Camaro Power Steering Pump in front of the cylinder heads and utilizes an LS1 water pump with spacers. Includes automatic belt tensioner mounted low on the passenger side of the block
• Compatible with: Truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
• Uses 98-02 Camaro LS1 Z28 or SS power steering pump and pulley (ICT# PUL200 & PUM200)
• Compatible with: all LS series engines
• Alternator: (ICT# ALT300)(will not fit Corvette/CTSV or 2010 up Camaro large bolt pattern alternators
• If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)

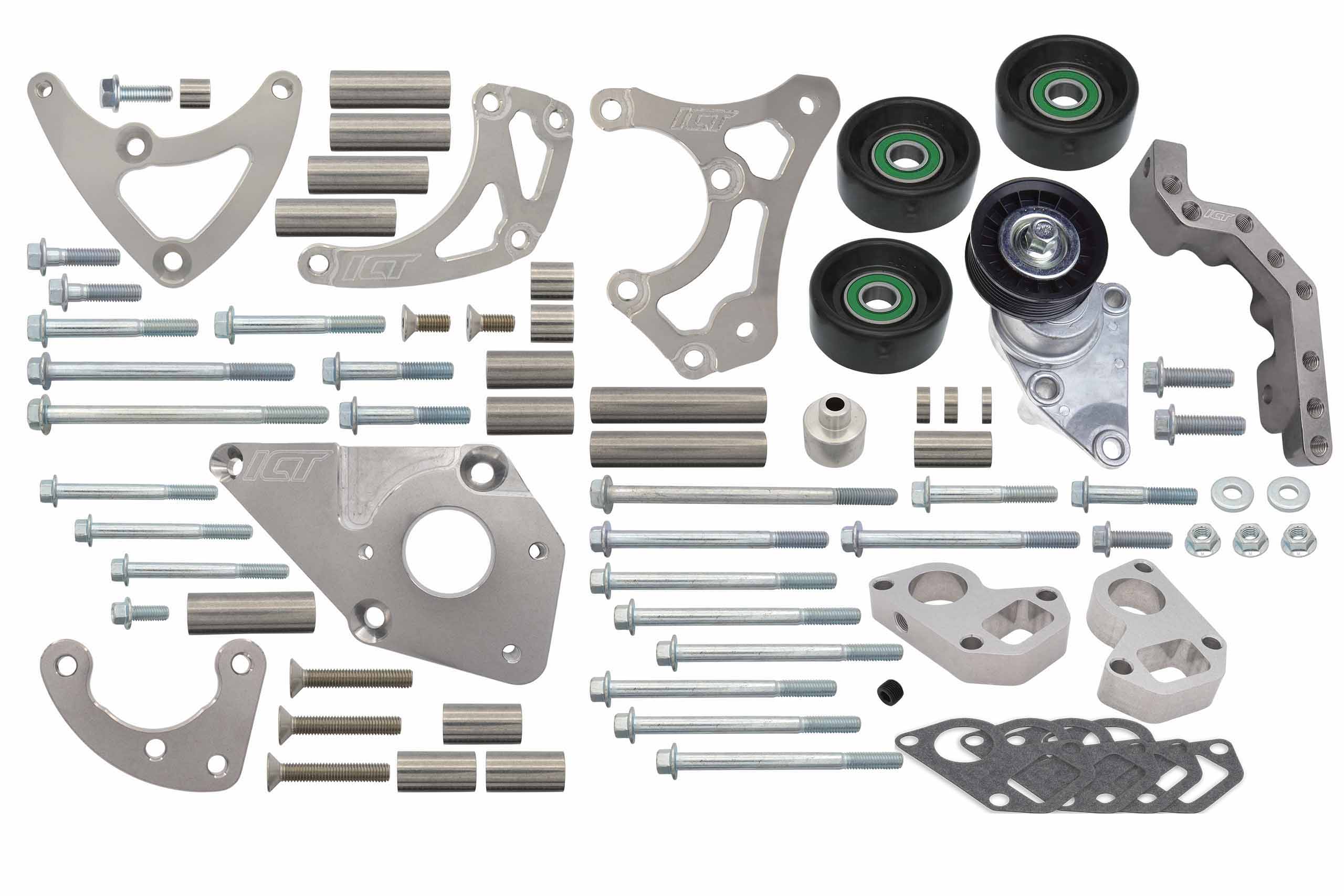

• Kit Includes ICT Part #'s 551526-LS01-3, 551785-3, 551527-LS01-3, and 551690-71
• Belt length: 81.0" (810K6)
• Made from aerospace-grade billet aluminum
• Made in the USA
