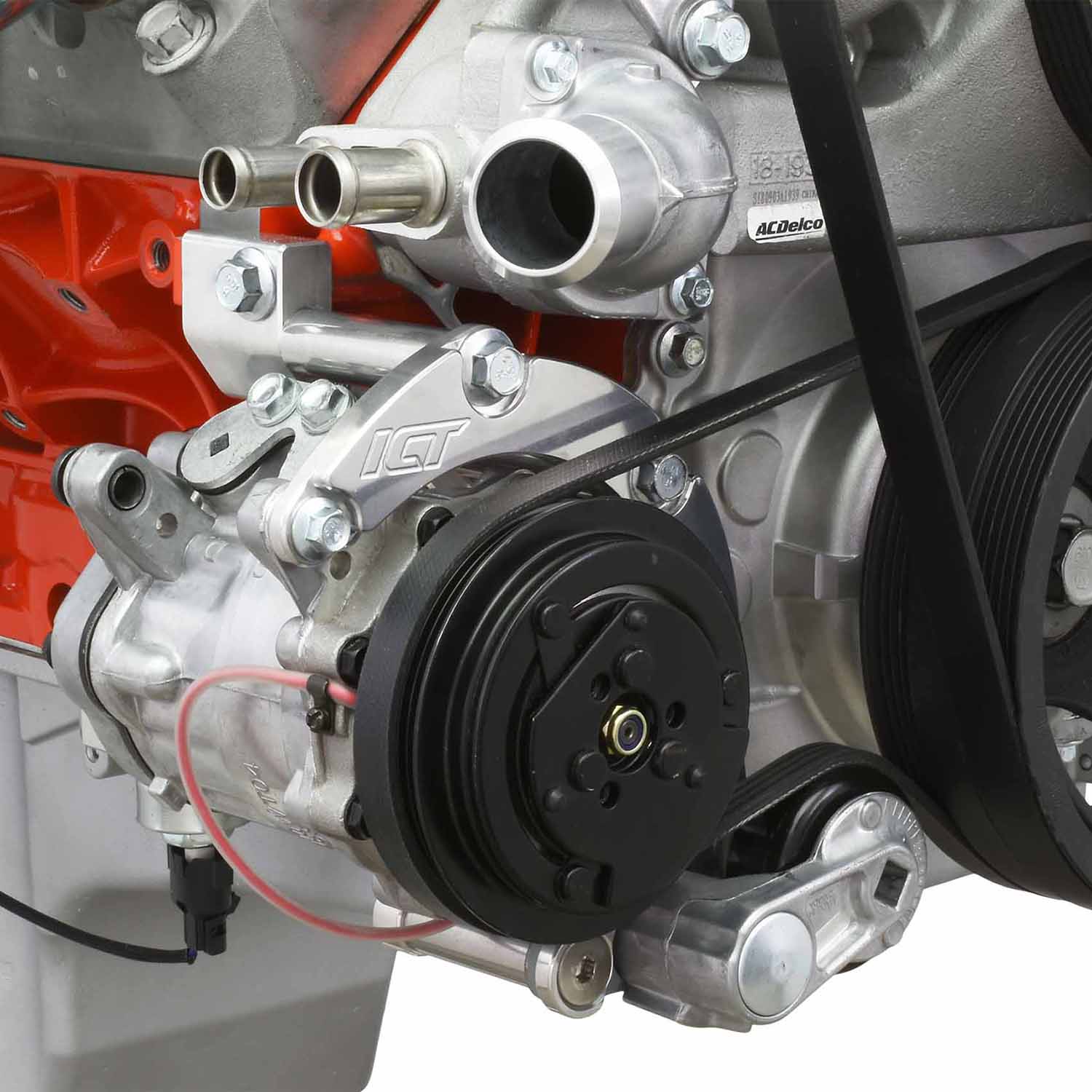

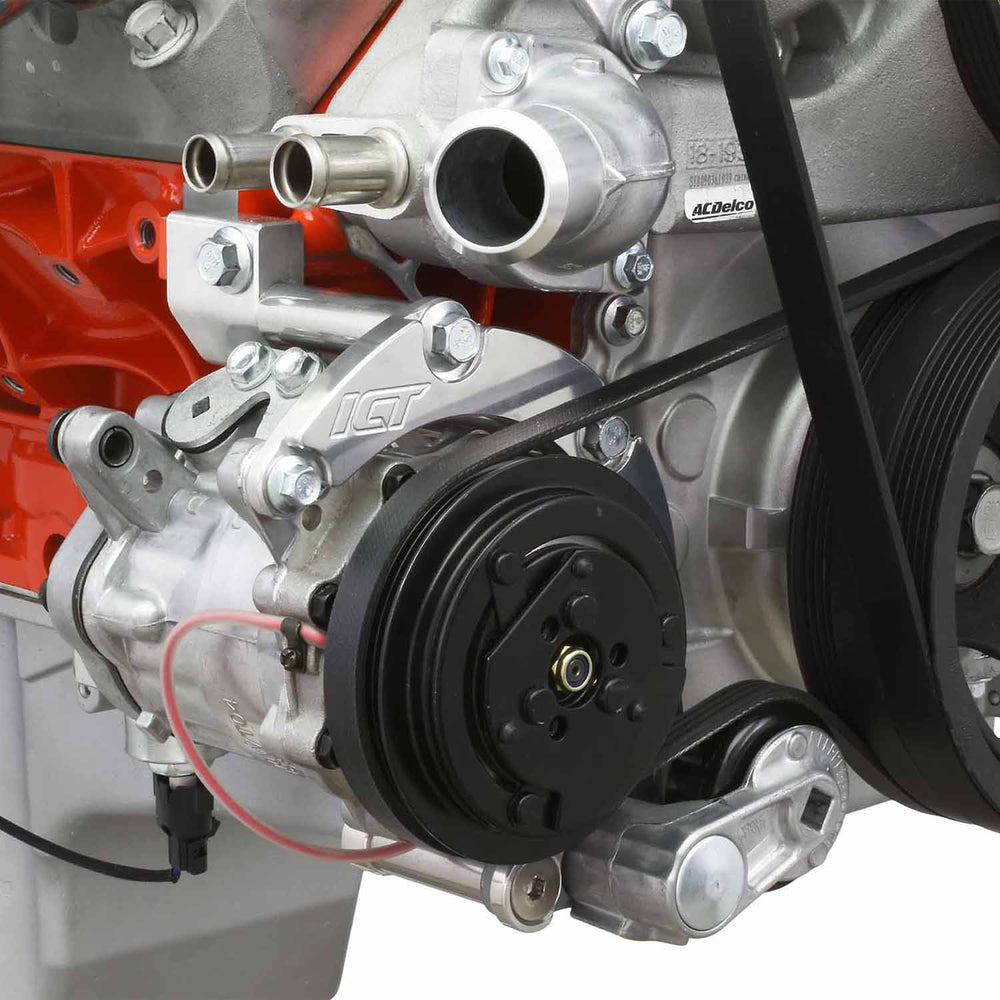

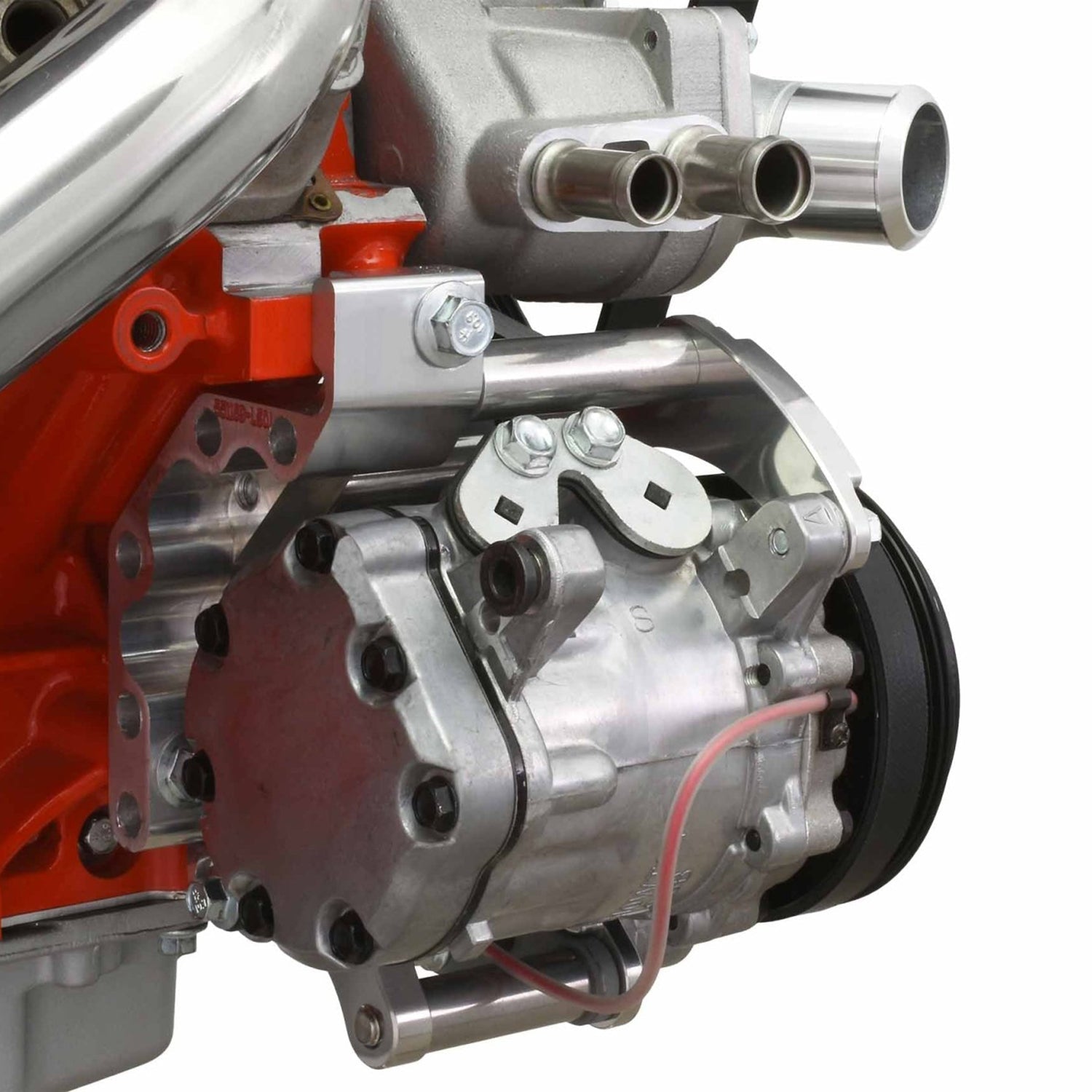

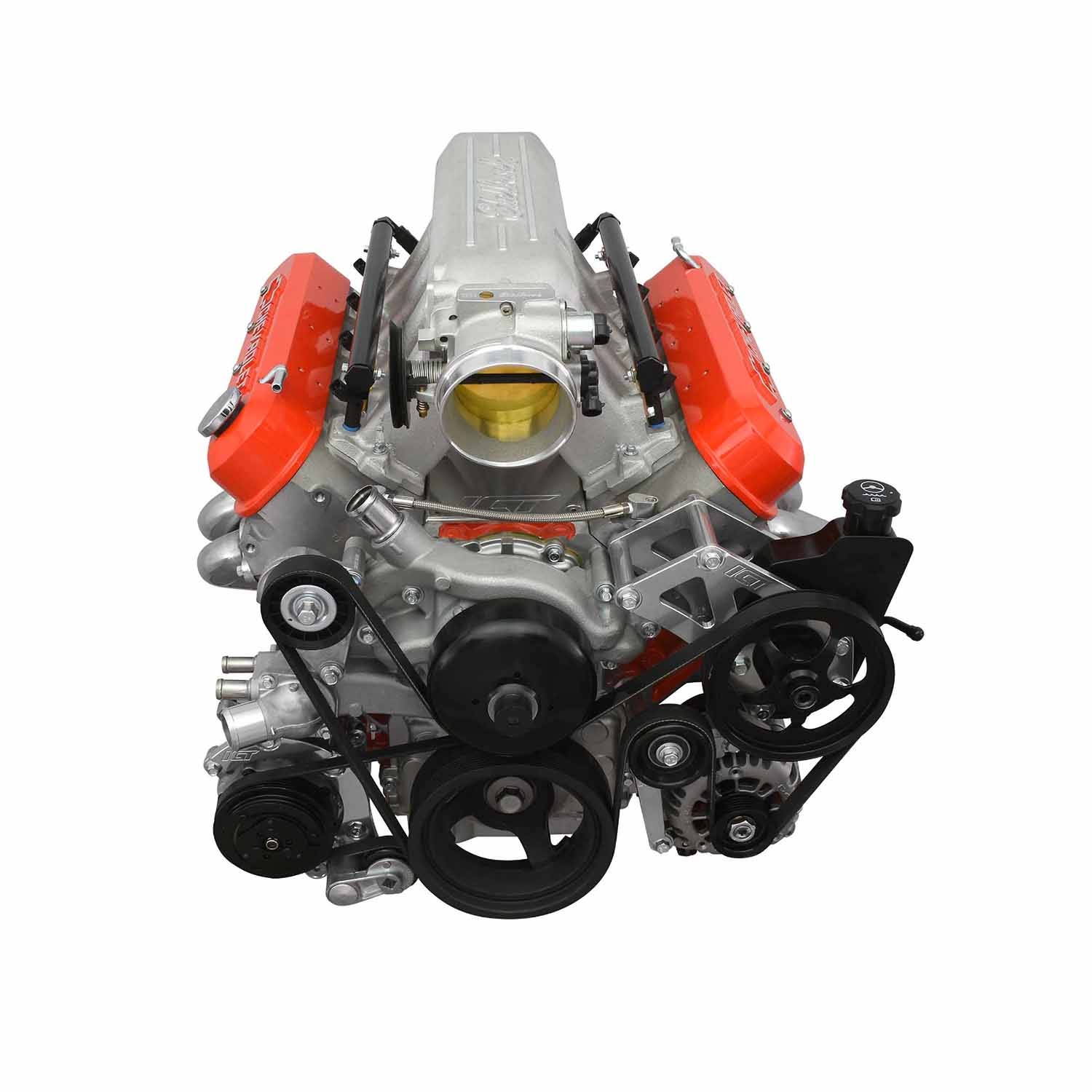

LS Truck Low Mount A/C AC Air Conditioner Compressor Bracket for Sanden 7176 LQ4

Price
$241.99
SKU#: 551137-LS74-3
In stock

Product Description

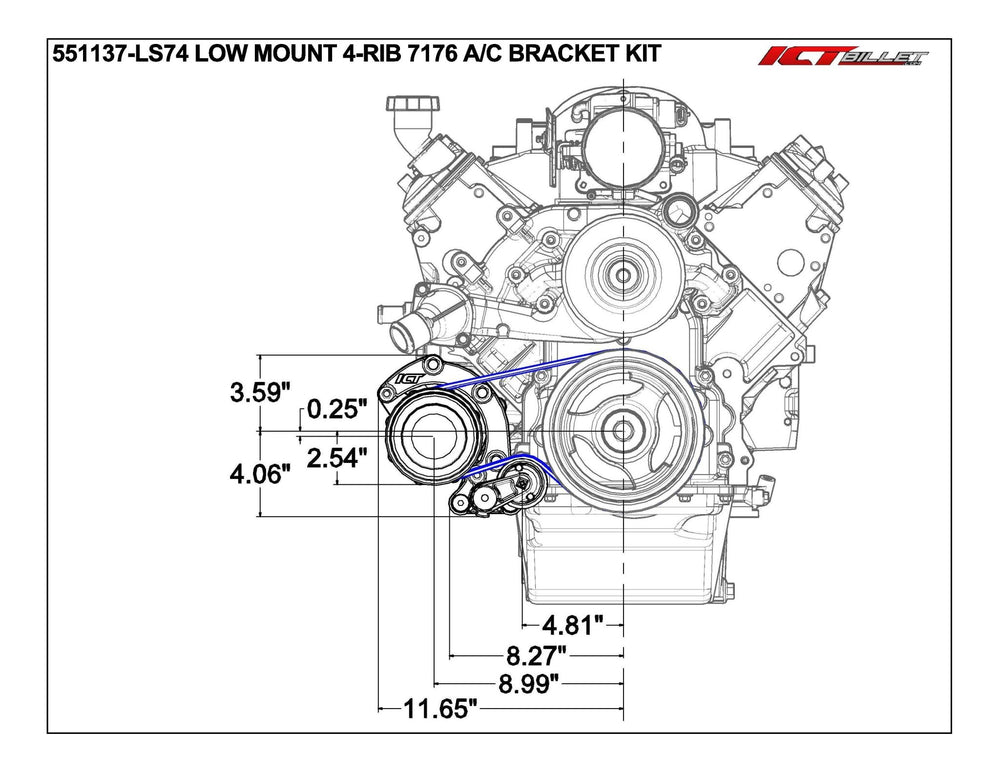

LS - 4-Rib - Sanden 7176 A/C Compressor Bracket Kit

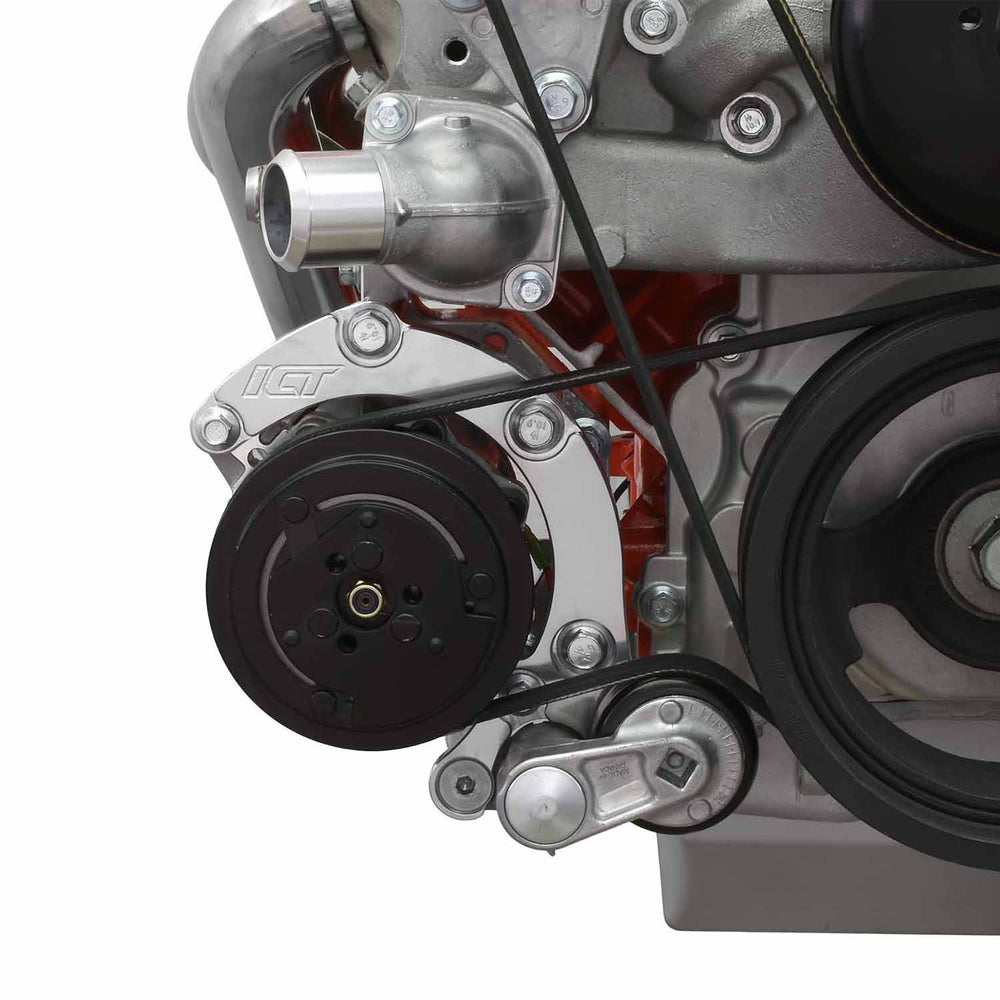

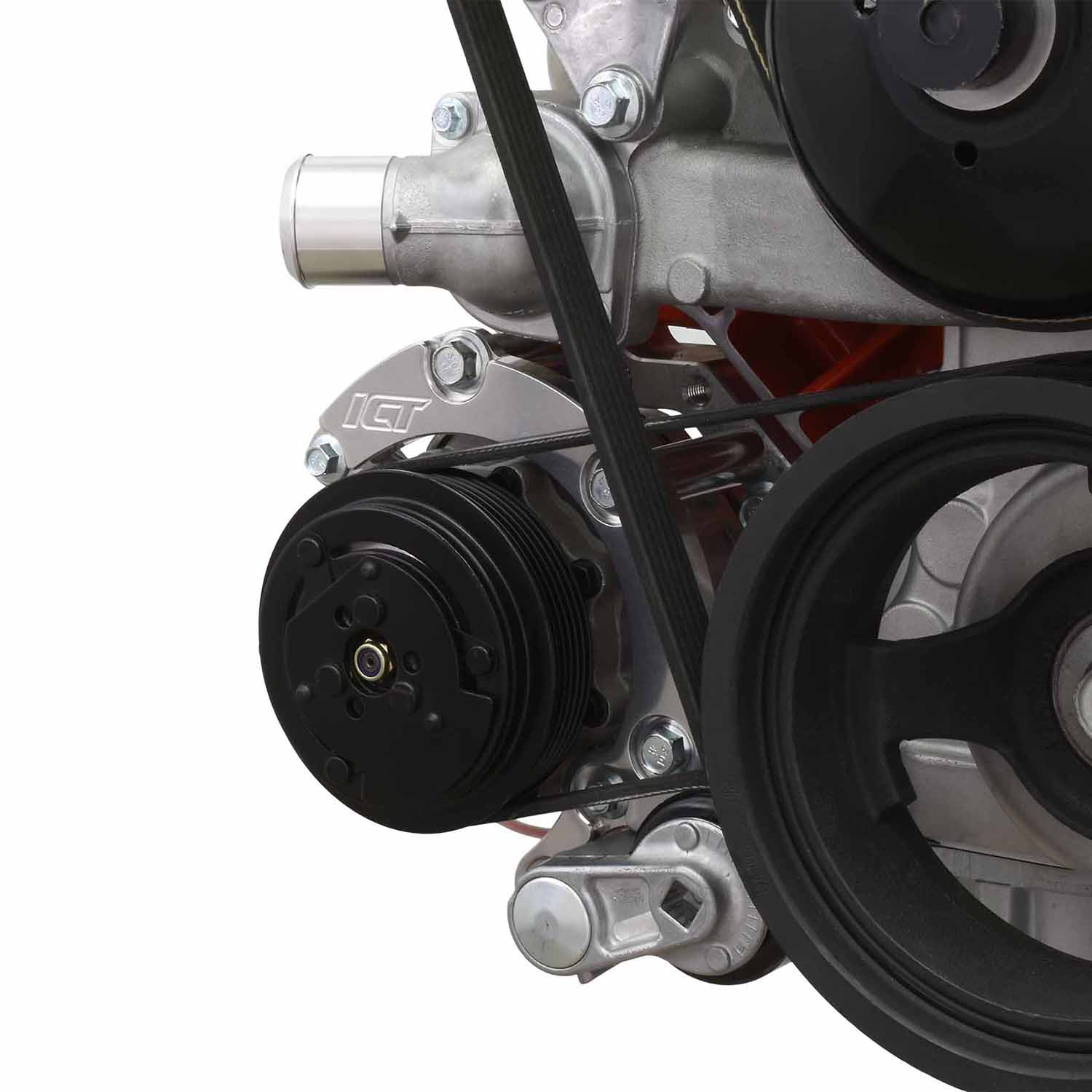

Mounts the aftermarket style "Sanden 7176" (SD7) compressor down low on the passenger side in the factory LS compressor location

  • Aligns compressor with the rear, 4-rib belt location on the crankshaft pulley
  • Compatible with truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)
  • Compatible with all truck-spacing water pumps - Gen 3 & 4 truck, LS3/L99 Camaro, and LS1 Camaro (w/ 551690-71 spacers)
  • Compatible with factory small block Chevy motor mount location using ICT Billet LS swap plates (ICT# 551628 and 551928)

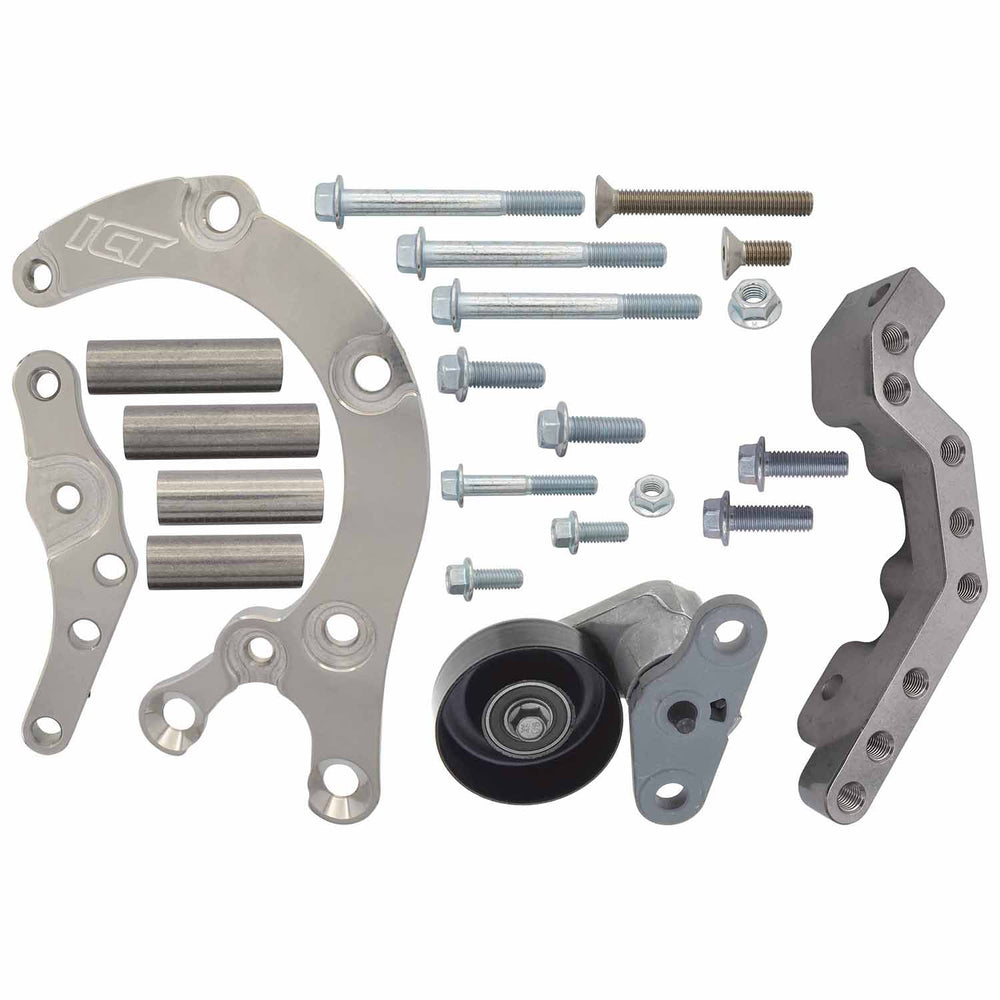

  • Includes: bracket, mounting hardware, and belt tensioner
  • Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
Belt length (378K4) (37.8 inch) Fits the following balancer pulleys from these engine RPO codes: LM7 LR4 LQ4 L59 LQ9 LM4 L33 LH6 L92 L76 LY2 LY5 LY6 LC9 LFA LH8 LMG L98 L9H L20 L94 LZ1 L99 L96 LC8 L77 L99 *note this does NOT fit factory style LS vehicle a/c compressors

Earn [points_amount] when you buy this item.

WARNING Prop 65 >>

More Information

PRODUCT SPECIFICATION

Manufacturer Part Number UPC Weight Length Width Height
ICT Billet 551137-LS74-3 840117201941 3.87 lb 9 in 6 in 3 in
