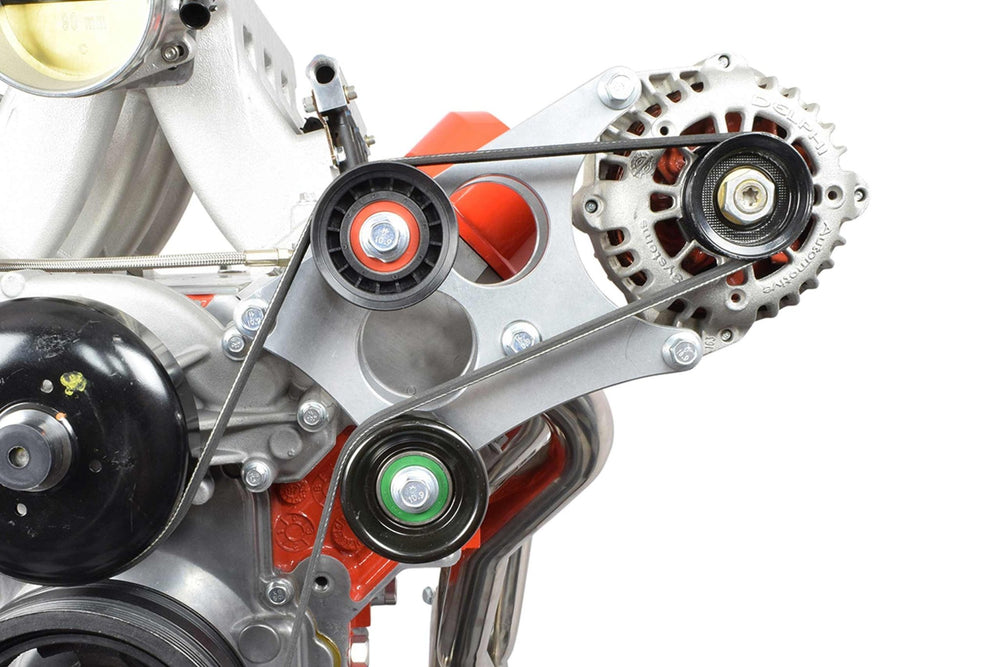

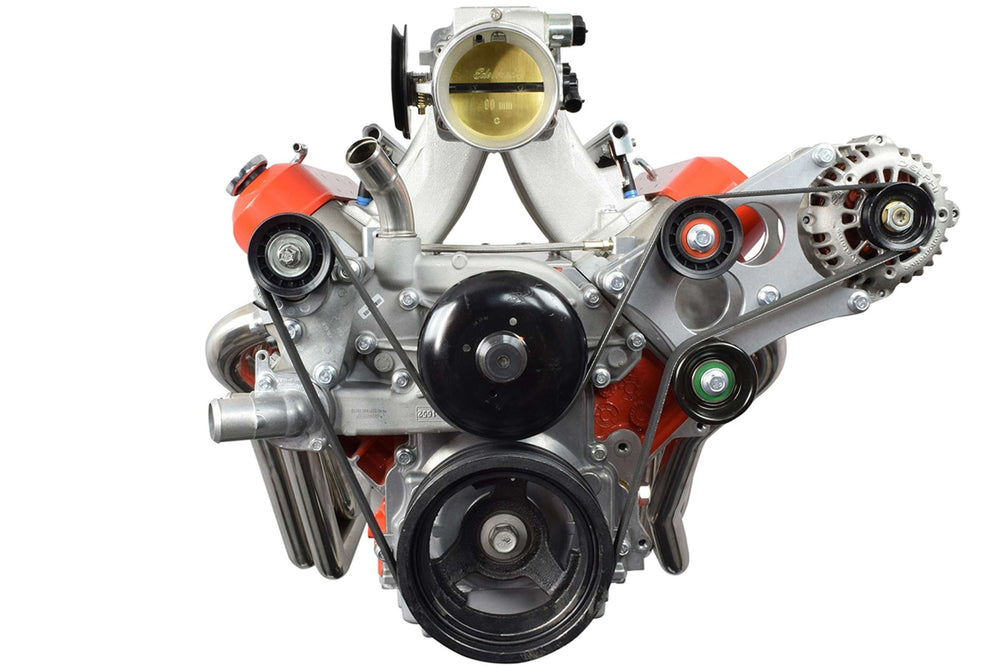

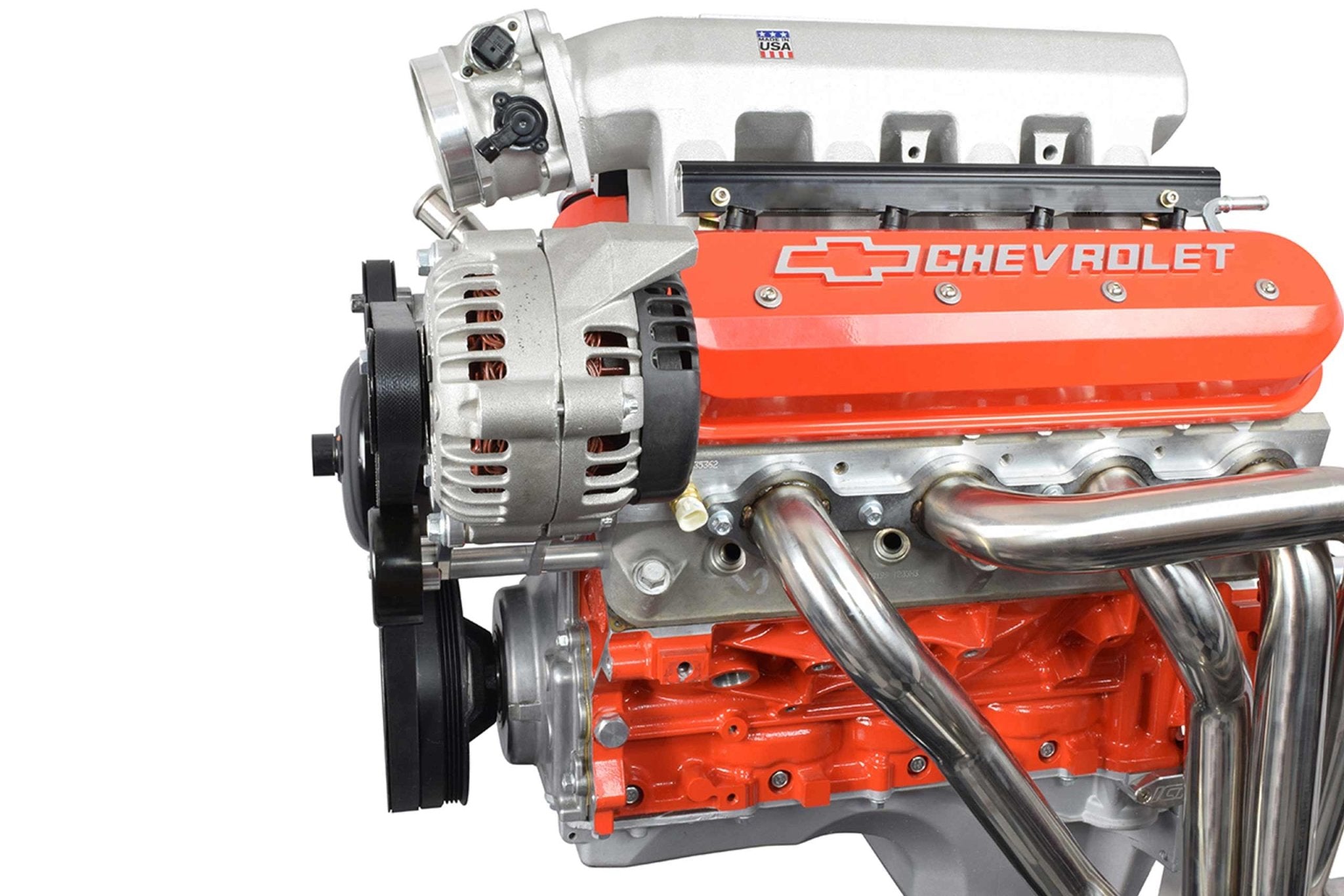

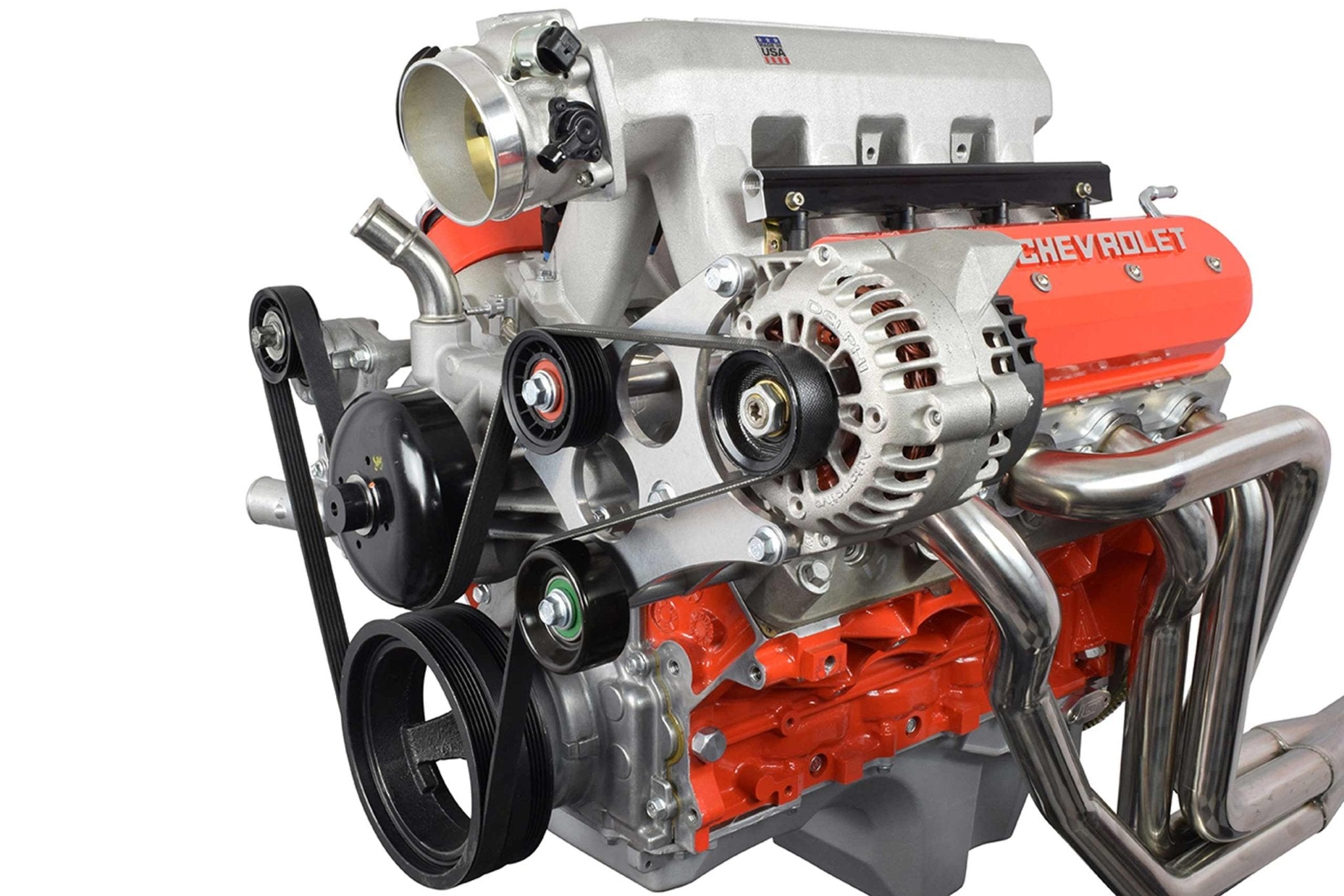

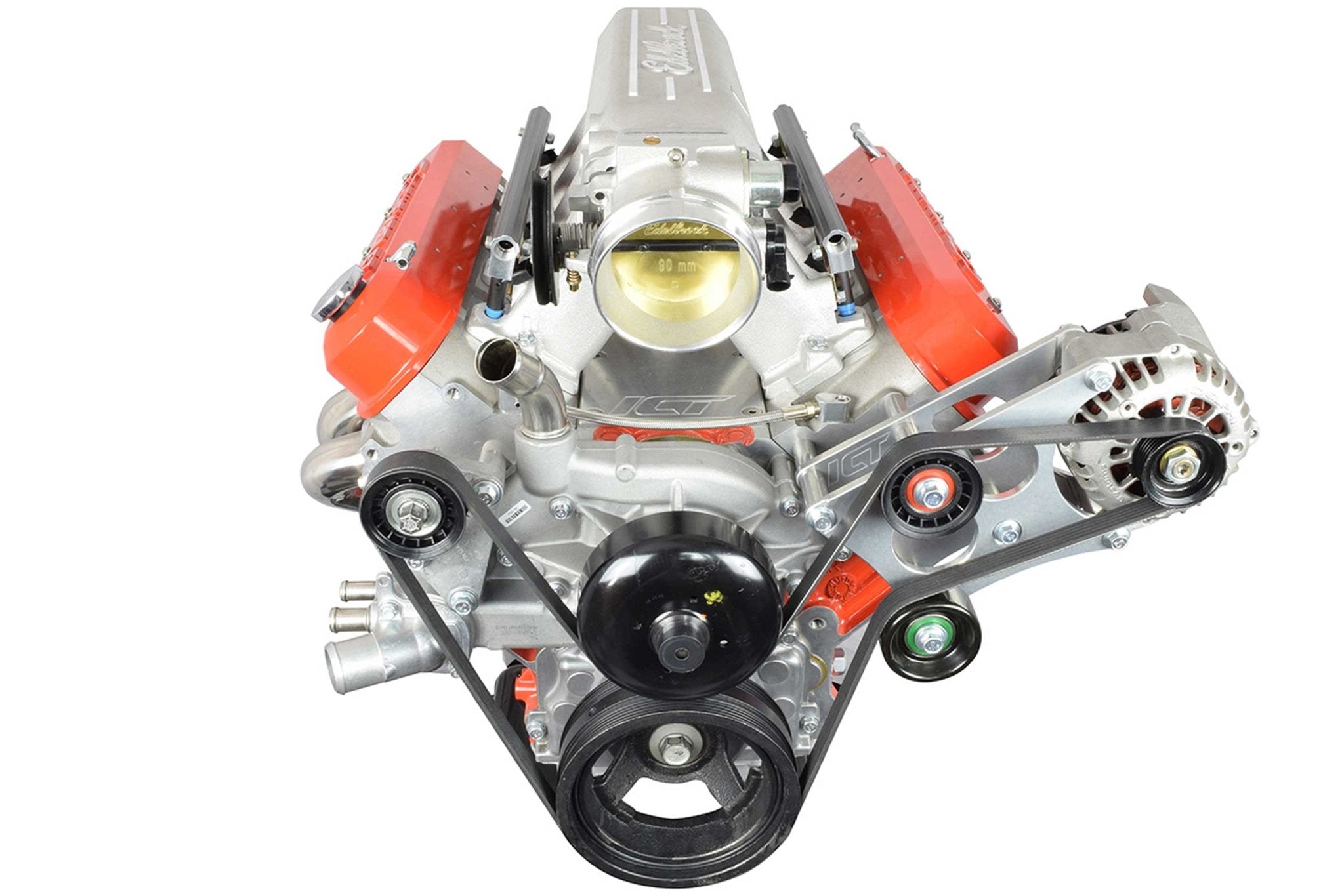

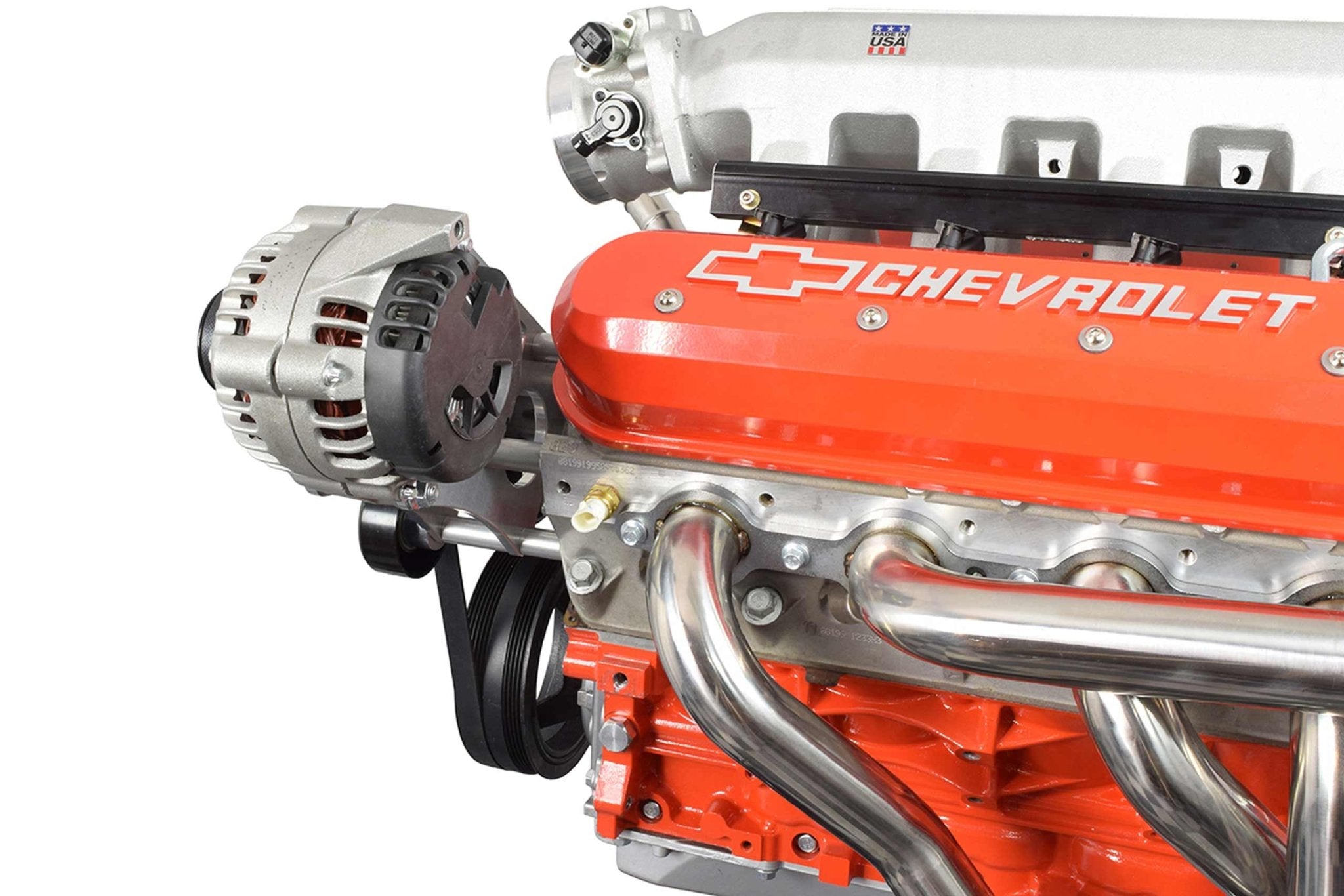

LS Truck Heavy Duty Billet Alternator Bracket Kit LSX 4.8L 5.3L 6.0L Top Driver Head Mount

Price
$120.99
SKU#: 551566-3
In stock

Product Description

Heavy Duty - LS Alternator Bracket Kit

Compatible with: truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)

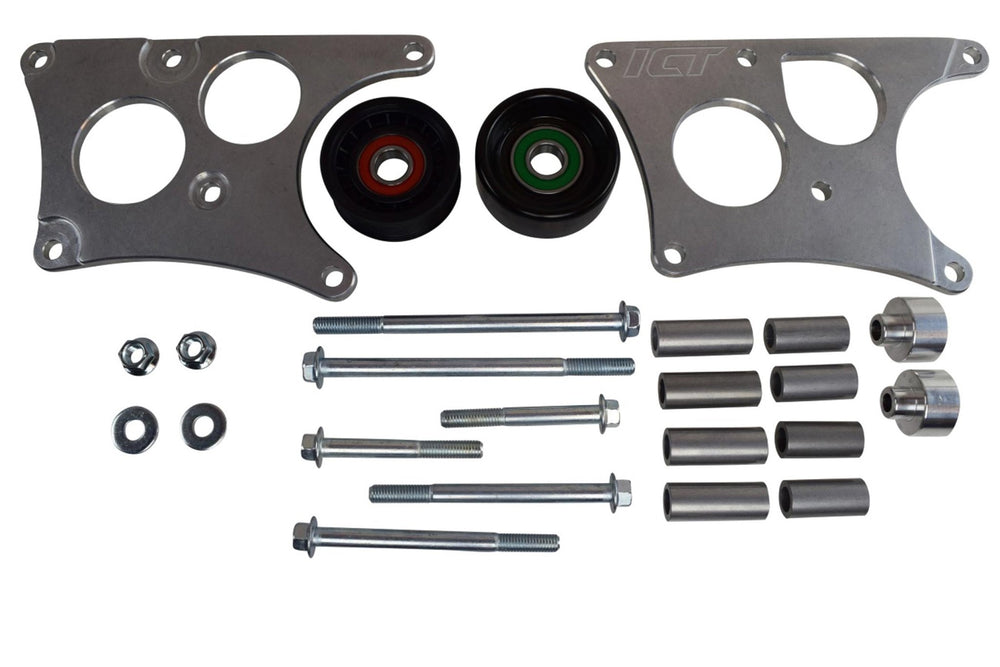

  • Includes: alternator bracket, idler pulleys, and mounting hardware
  • Alternator: (ICT# ALT300)(will not fit Corvette/CTSV or 2010 up Camaro bolt pattern alternators without 551905 alternator adapter), will fit any other LS powered vehicle alternators with any amperage
  • If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
  • Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

Compatible with Belt:

755K6 (75.5 inch) Belt w/ 105 amp alternator (ICT # ALT300) 763K6 (76.3 inch) Belt w/ 140-160 amp alternator (ICT # ALT302) 775K6 (77.5 inch) Belt w/ Corvette (or 2010-up Camaro, CTS-V, SS) alternator with 551905 alternator adapter (top position)

Earn [points_amount] when you buy this item.

WARNING Prop 65 >>

More Information

PRODUCT SPECIFICATION

ICT Manufacturer Manufacturer Part Number UPC Weight Length Inches Width Inches Height Inches Downloadable PDF for Vehicle
ICT Billet 551566-3 656729845660 3.75 lb 9 in 9 in 1 in No
