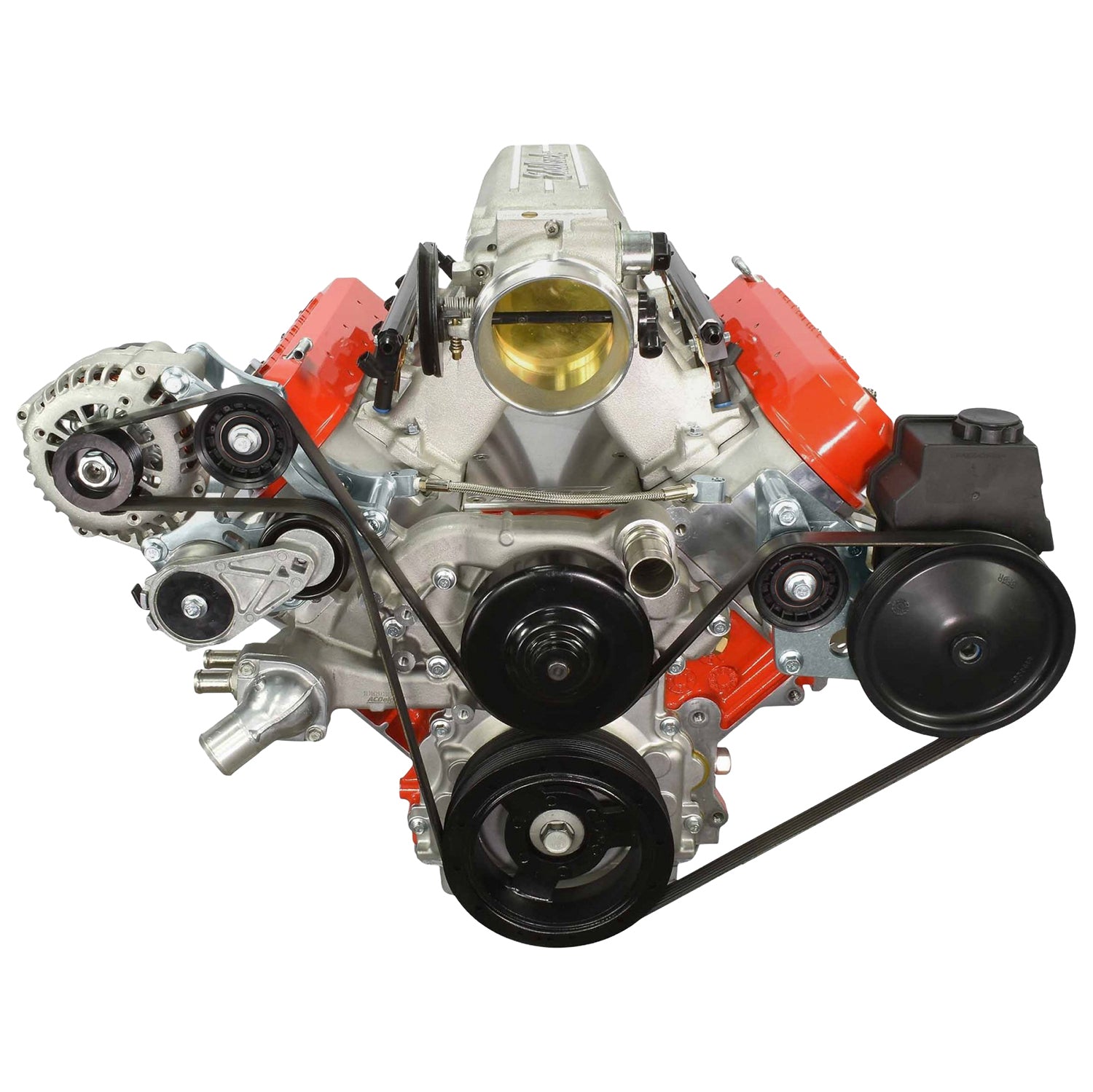

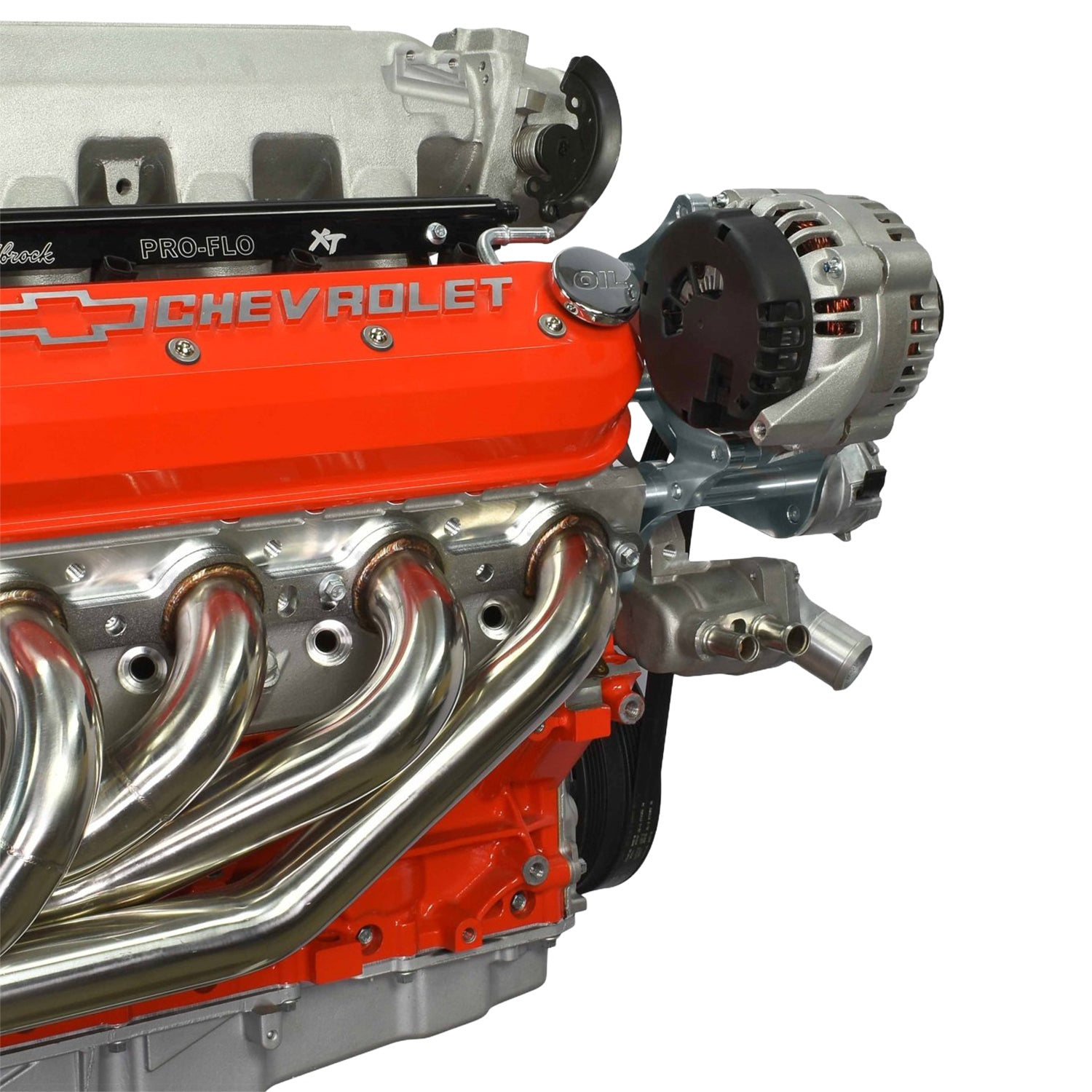

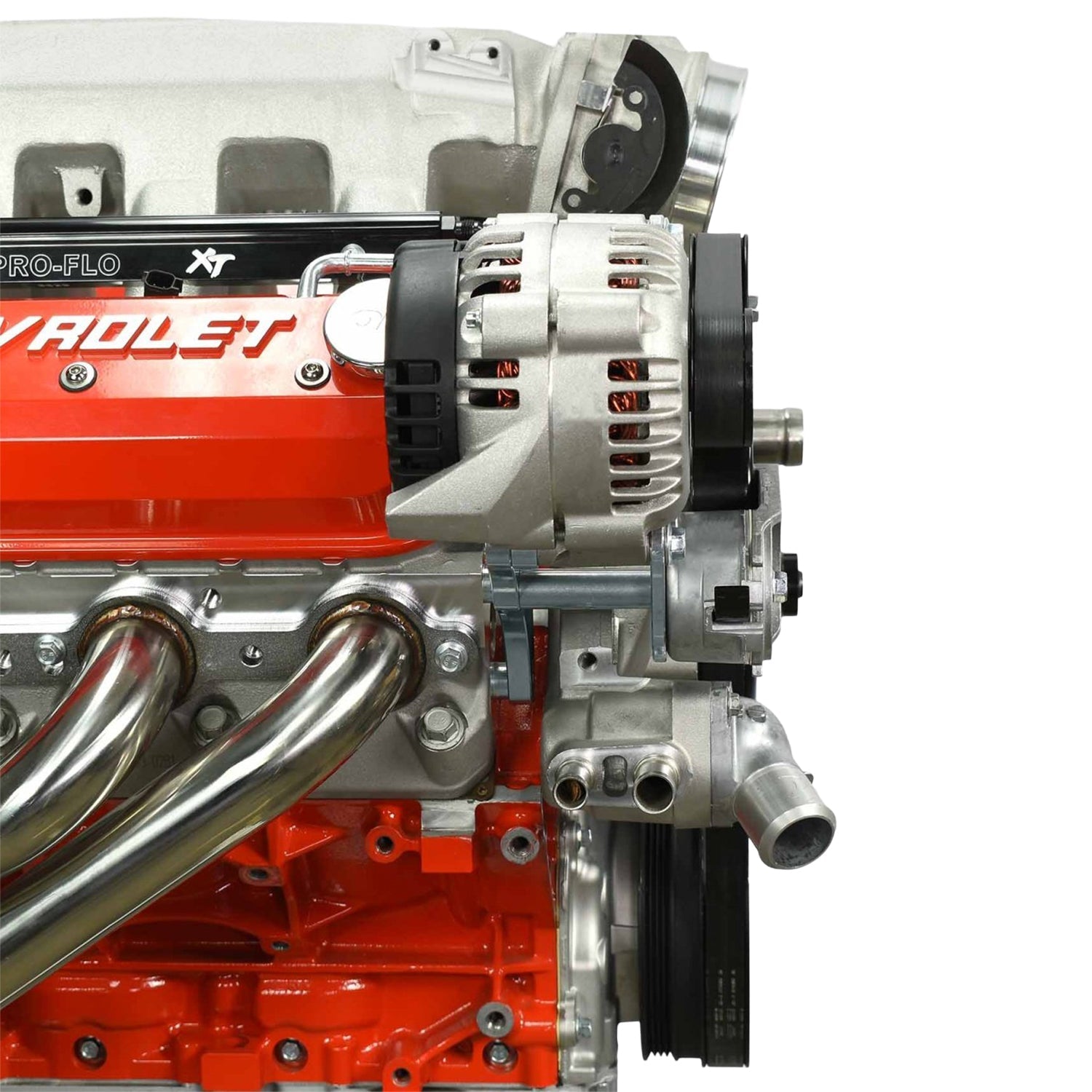

Alternator Bracket Kit Compatible with LS Corvette LSX LS1 LS2 LS3 LS7 LS6 LS9 CTS-V

Price
$241.99
SKU#: 551750-1
In stock

Product Description

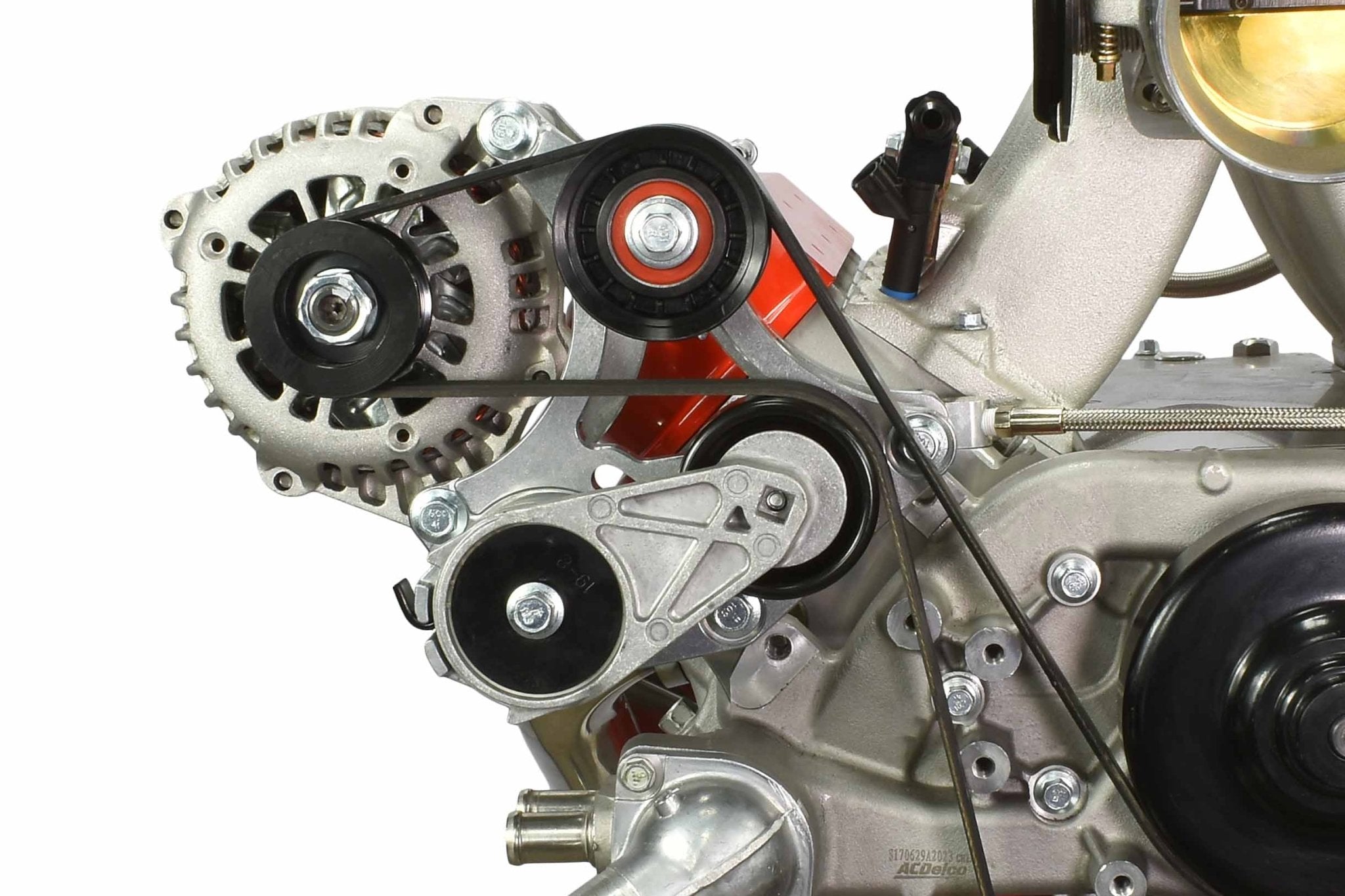

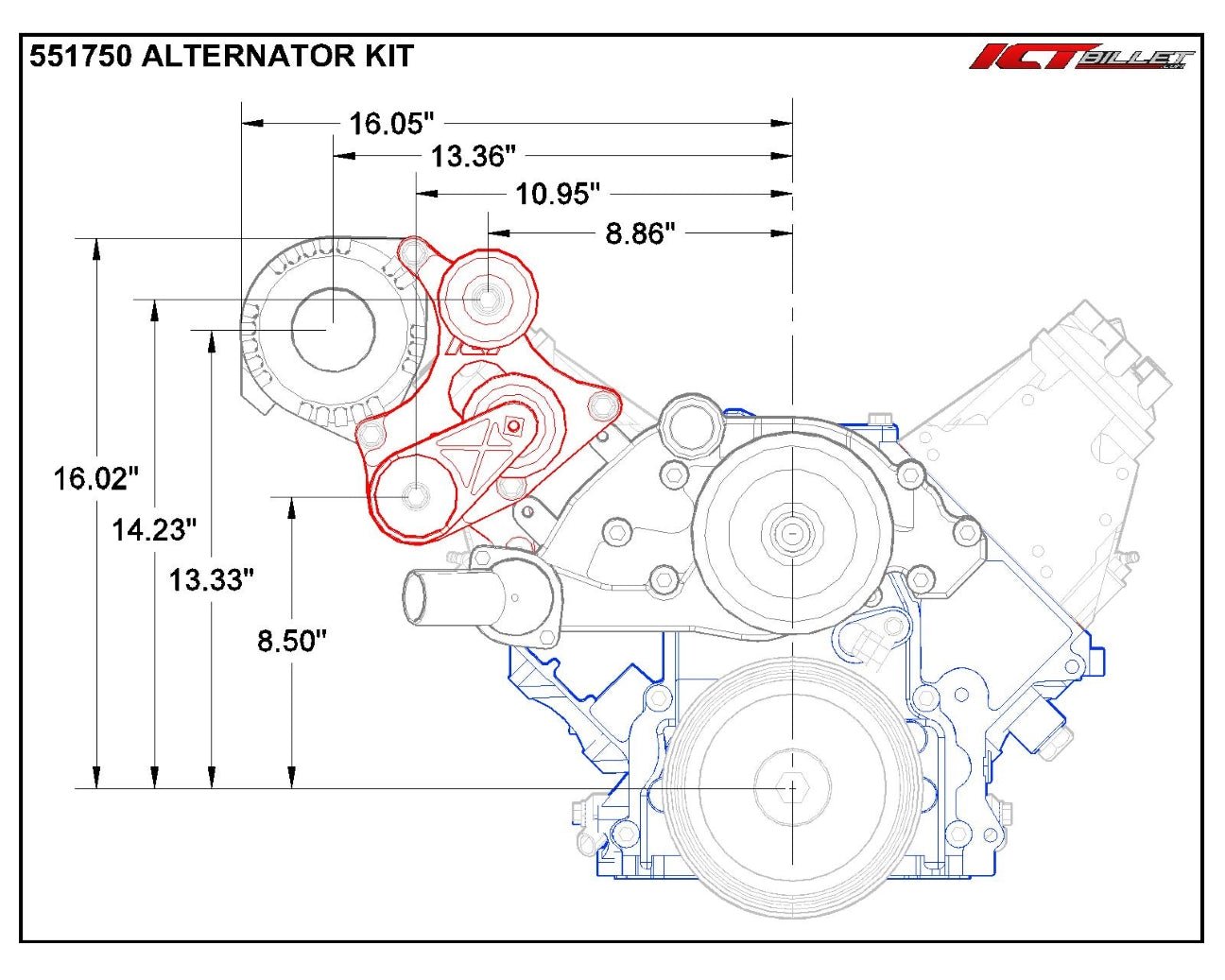

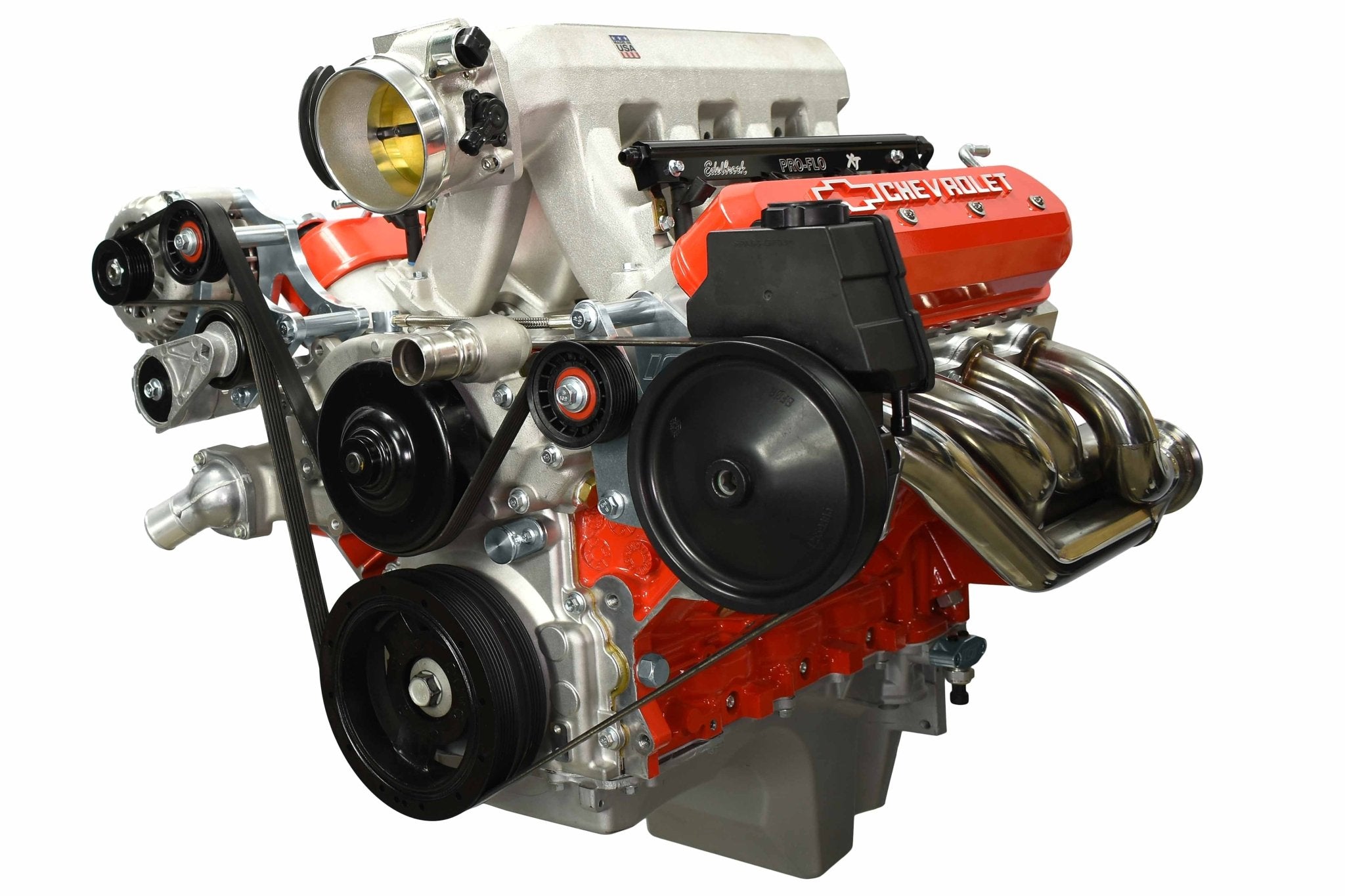

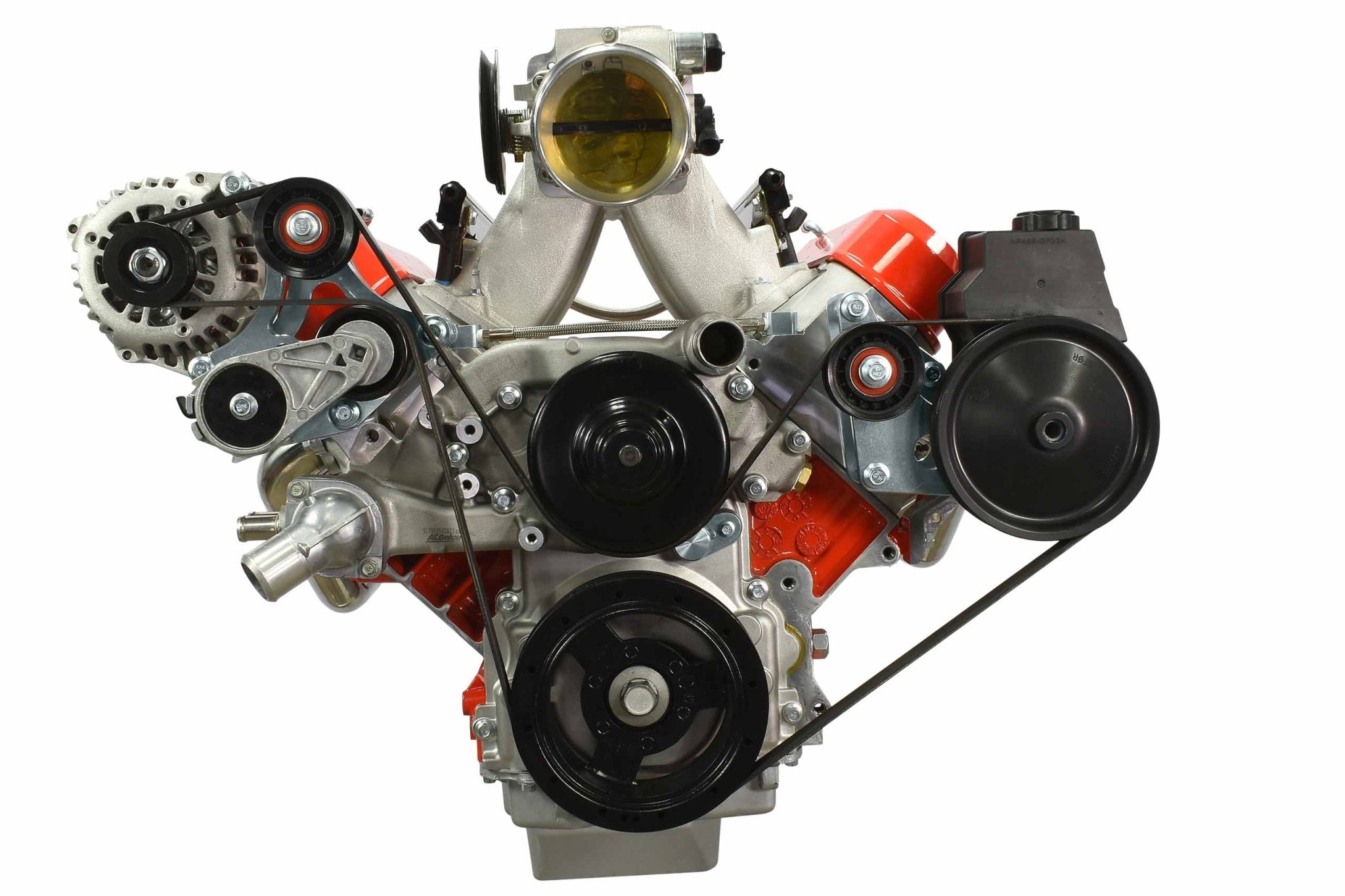

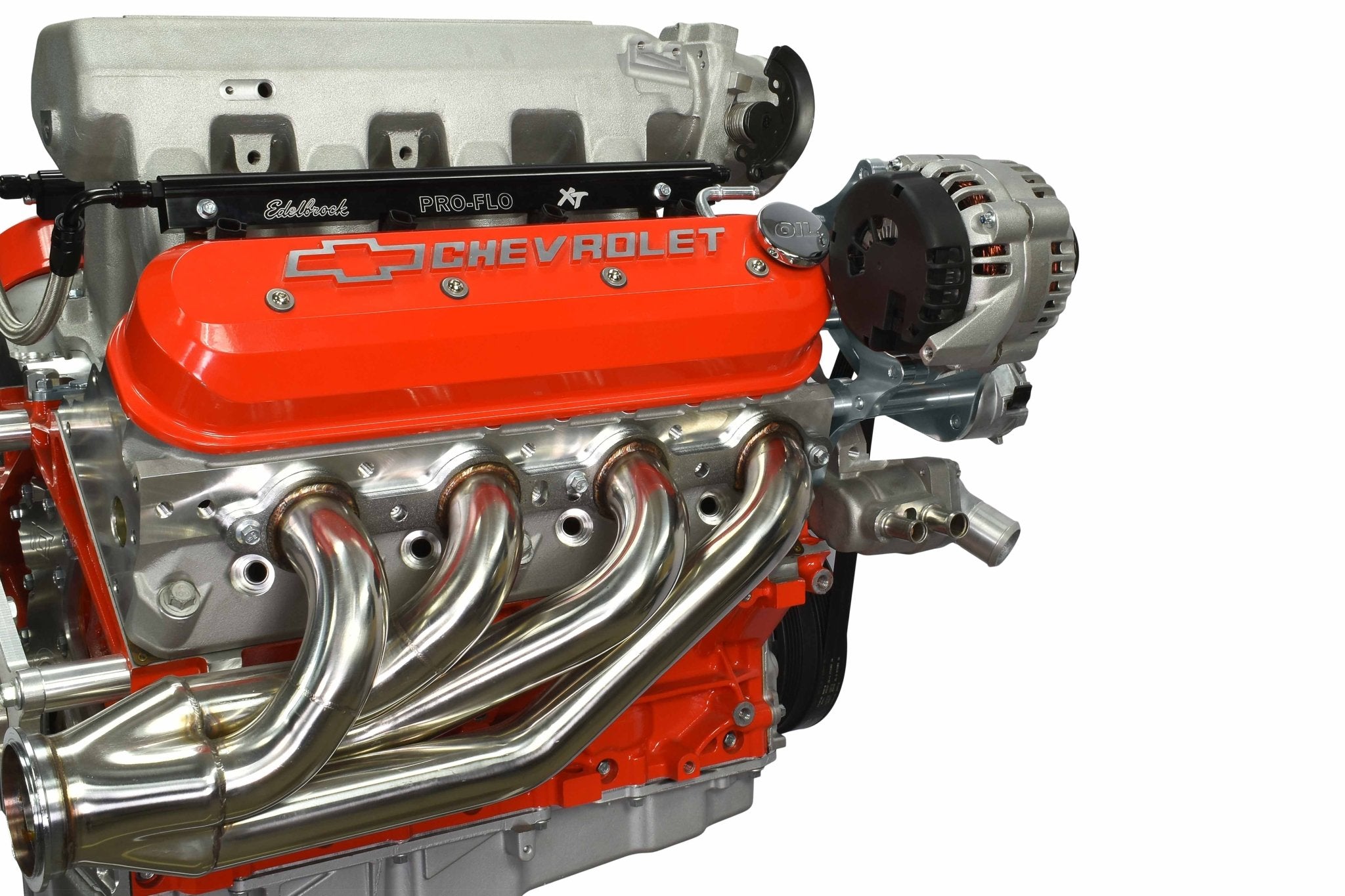

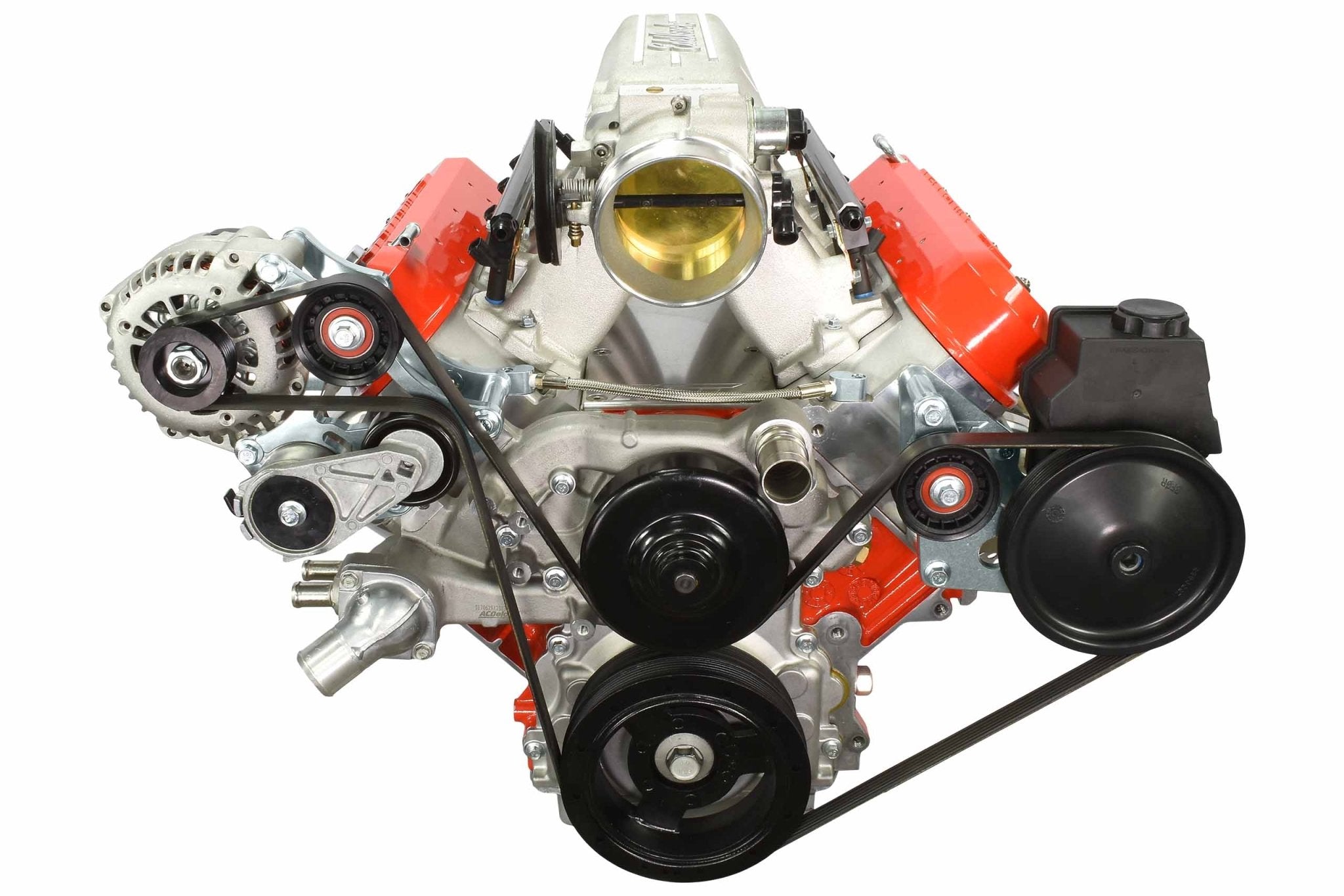

Heavy Duty LS Alternator Bracket Kit

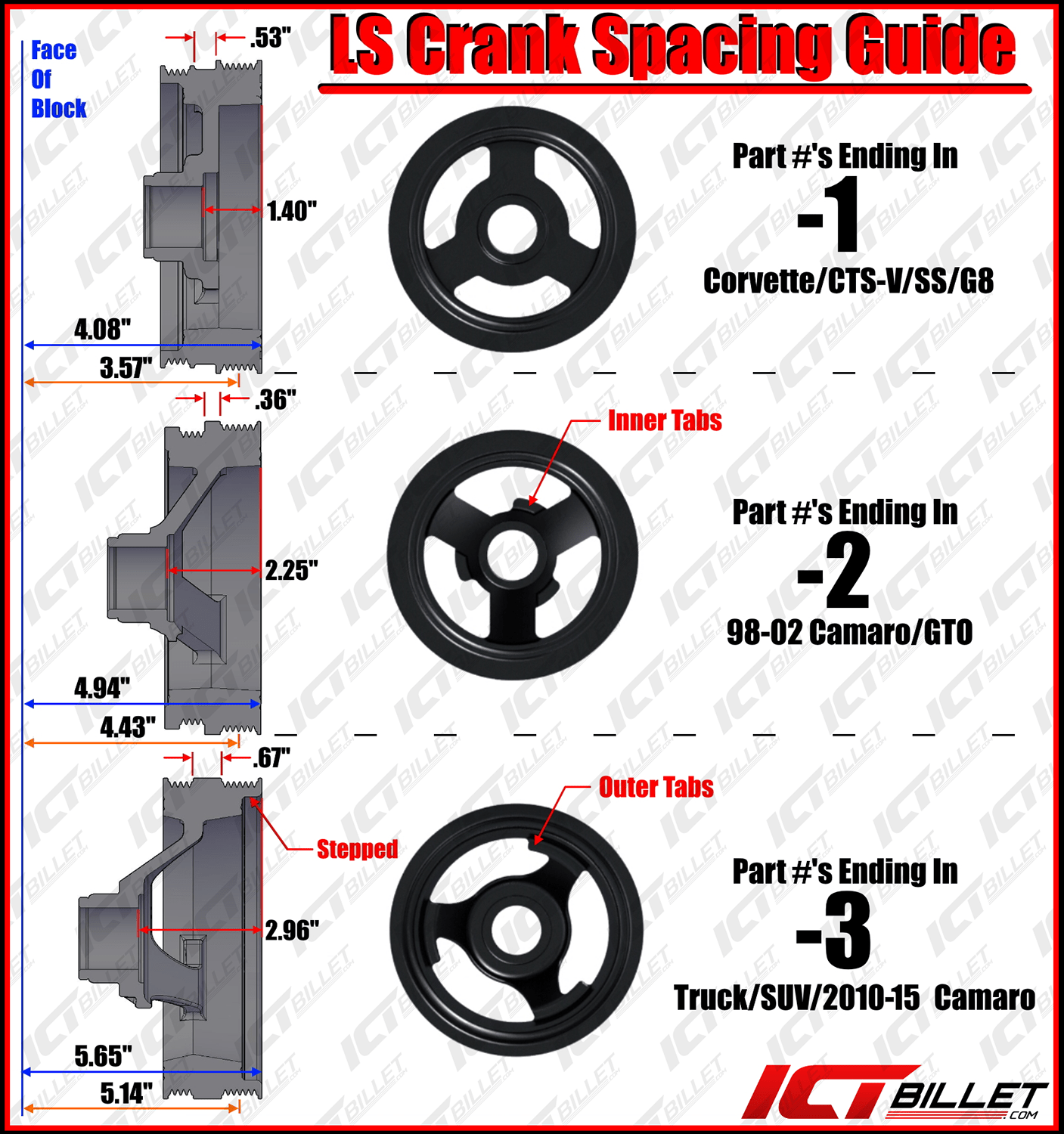

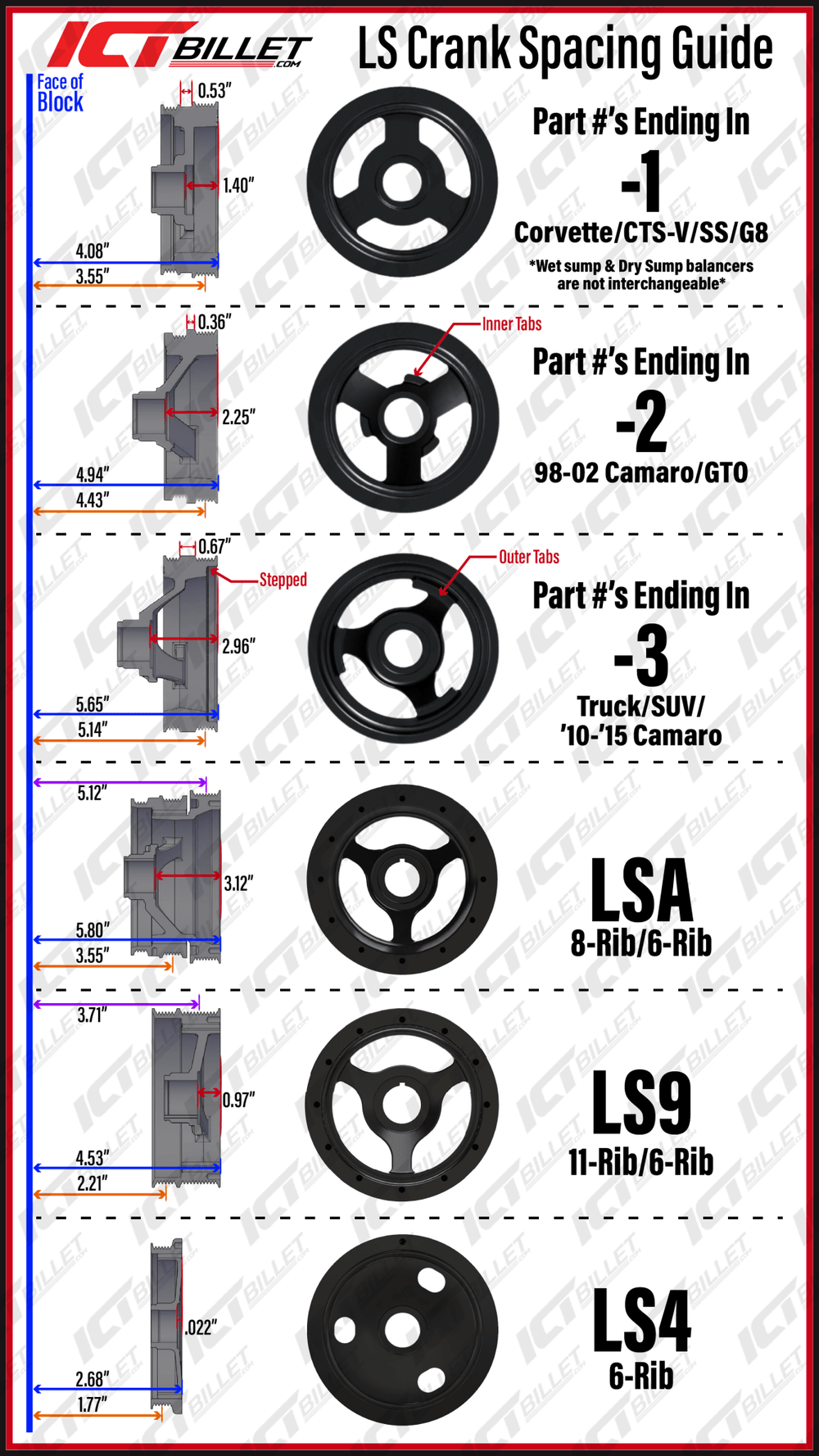

Compatible with: Corvette (any year LS) (or CTSV/G8/SS) crank pulley (ICT # BAL100)

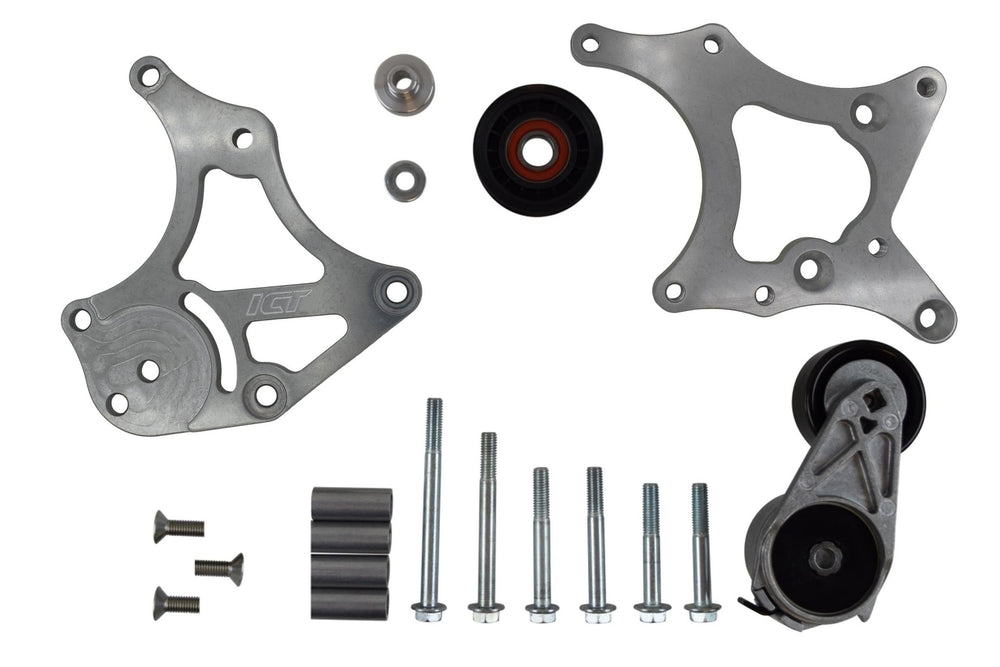

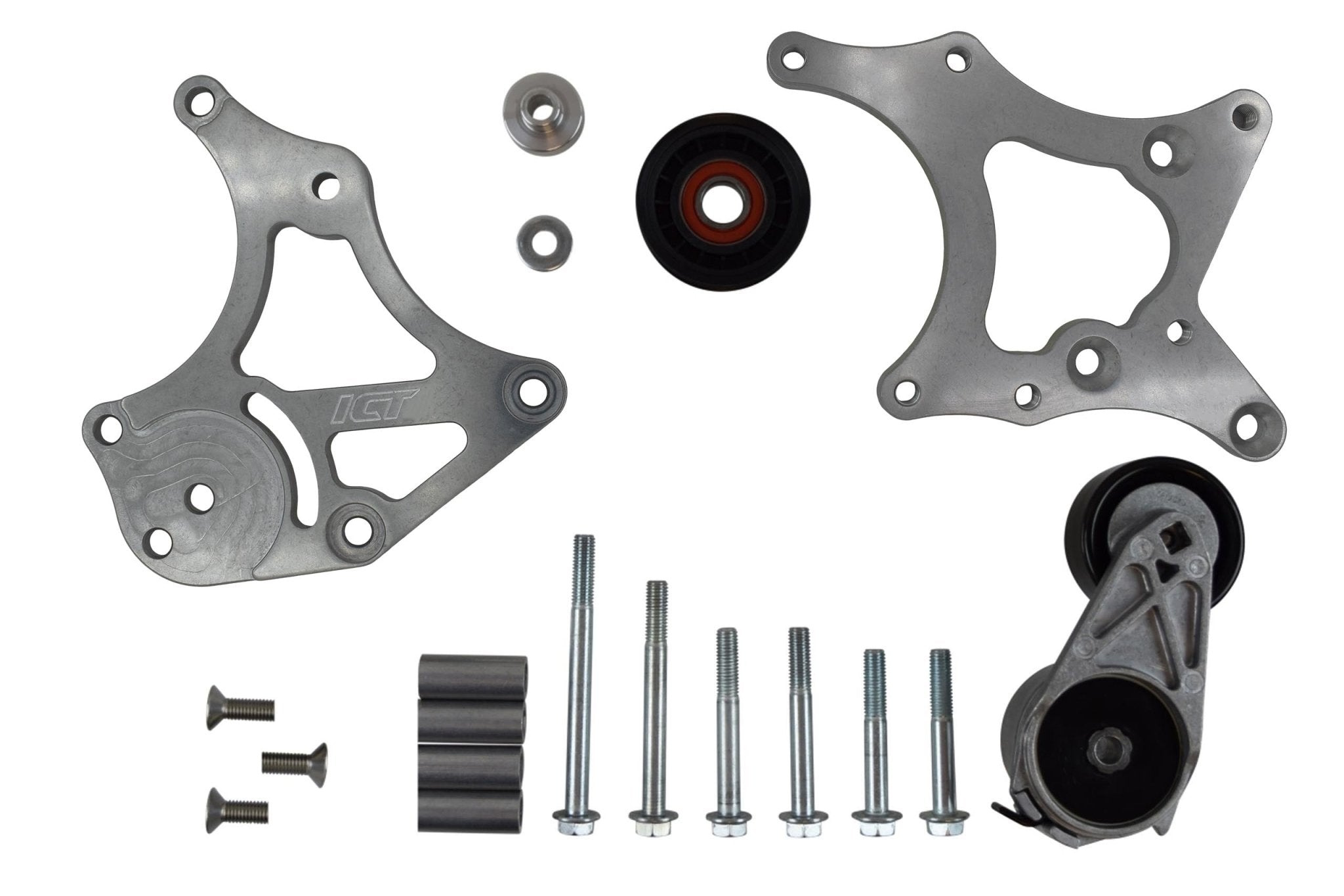

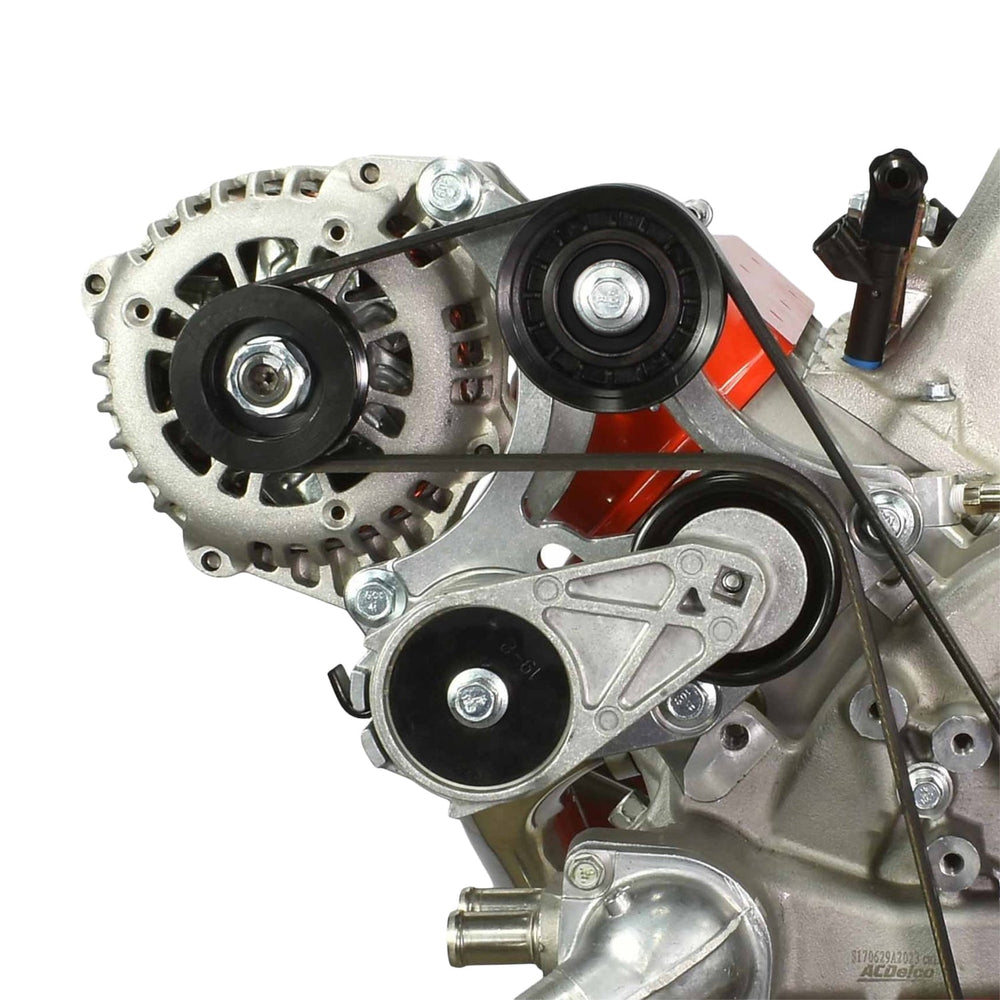

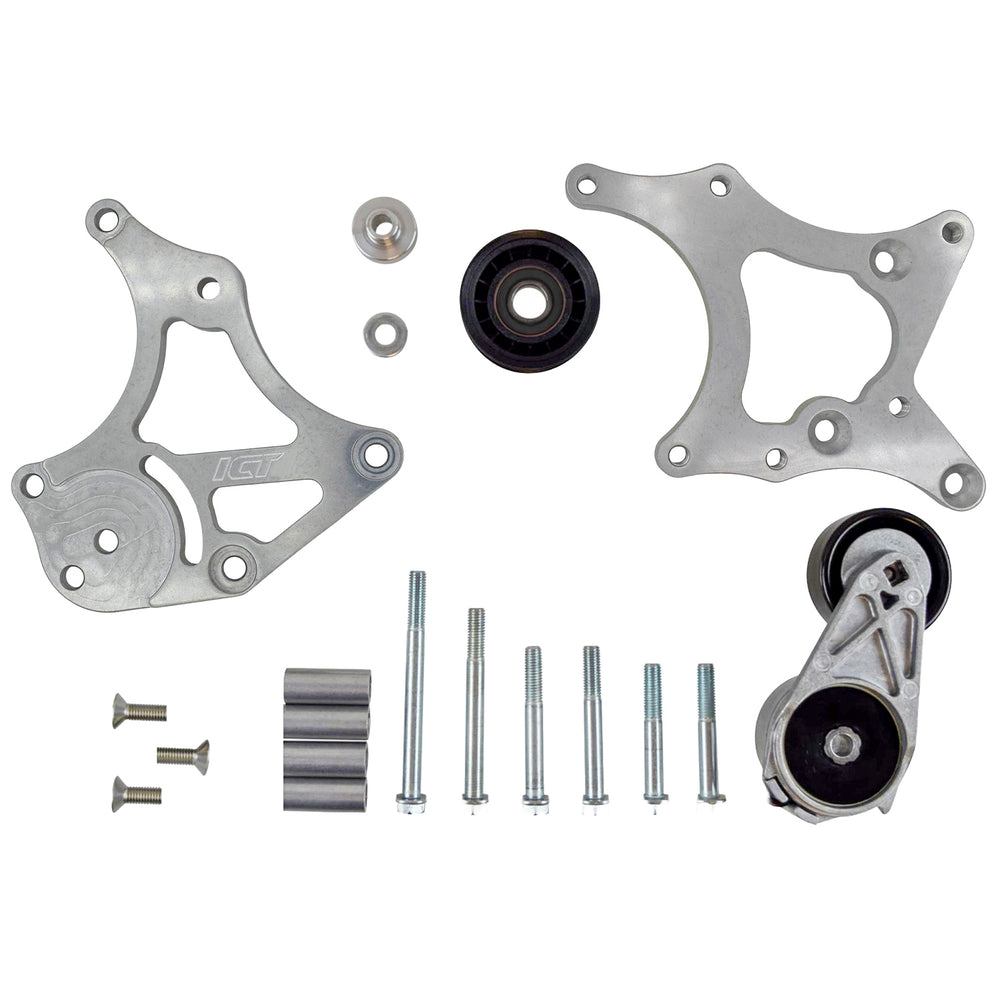

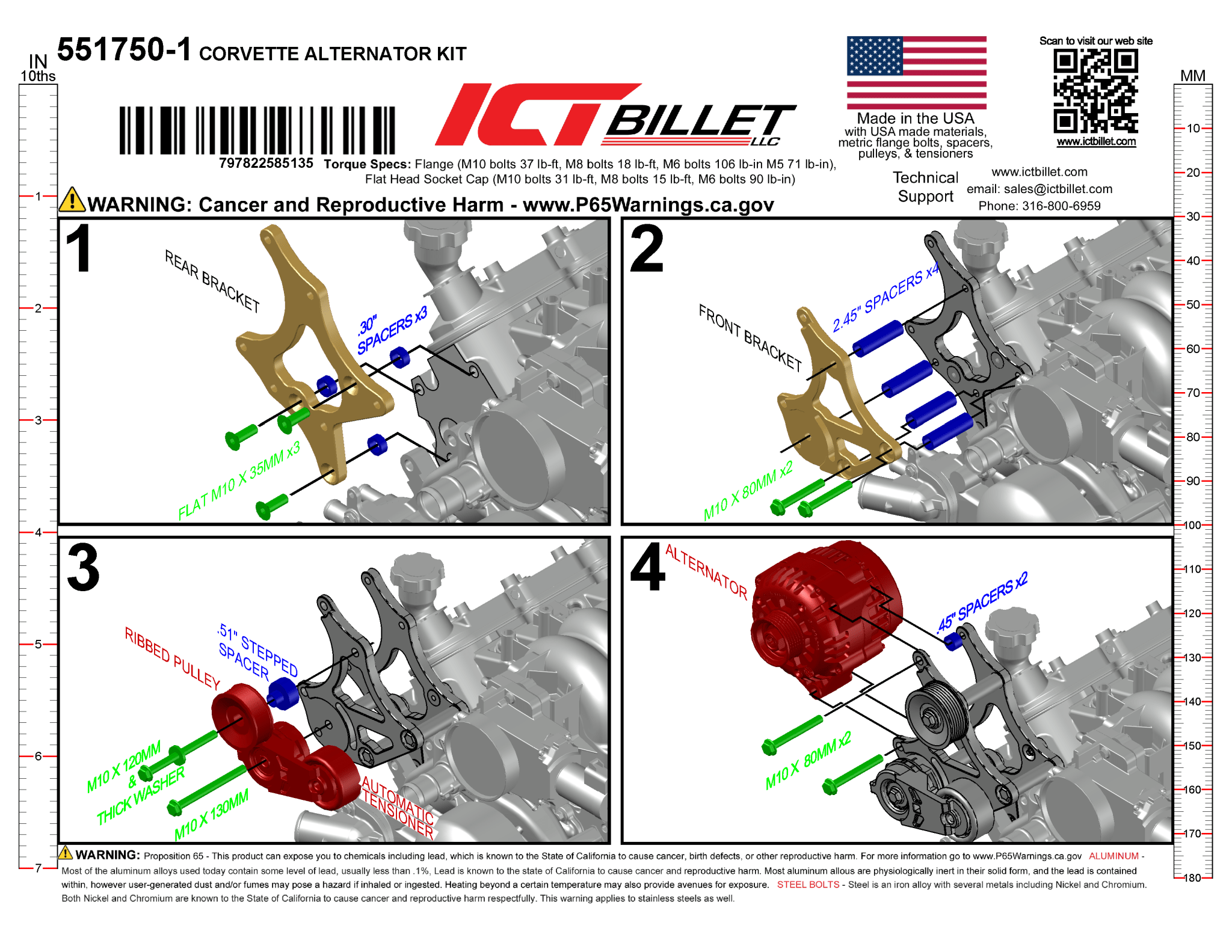

  • Includes: alternator bracket, belt tensioner, idler pulley, and mounting hardware
  • Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
  • Alternator: Suggested part # ICT# ALT300 105 amp (will not fit CTS-V alternators. Corvette or 2010-up Camaro large bolt pattern alternators will require 551905 alternator adapter). Will fit any other LS powered vehicle alternators with any amperage.
  • Compatible with all GM LS series engines
  • If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
Belt length with the standard 105amp alternator and 551751-1 bracket: 2180K6 (85.8 inch) Manual belt tensioners are available separately - Part# 551479
WARNING Prop 65 >>

More Information

PRODUCT SPECIFICATION

ICT Manufacturer Manufacturer Part Number UPC Weight Length Inches Width Inches Height Inches Downloadable PDF for Vehicle
ICT Billet 551750-1 797822585135.0 6.62 lb 10 in 10 in 5 in No
