LS Low Mount A/C Air Conditioner Compressor Bracket for Sanden 7176 LS1 Camaro

Price
$241.99
SKU#: 551137-LS74-2
In stock

Product Description

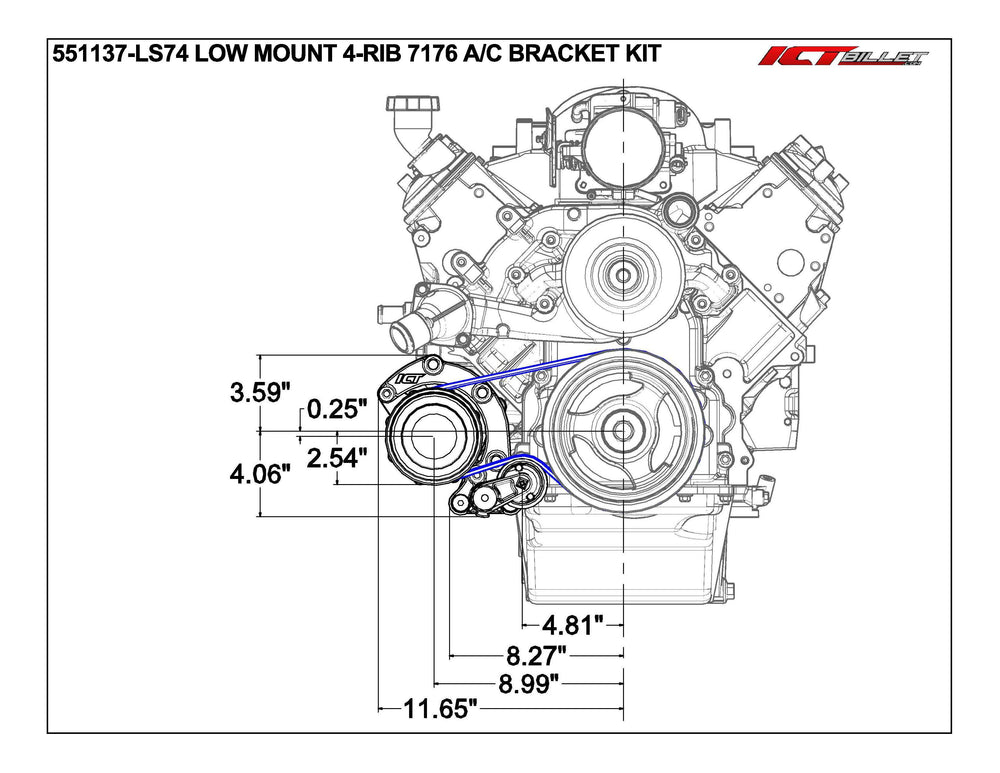

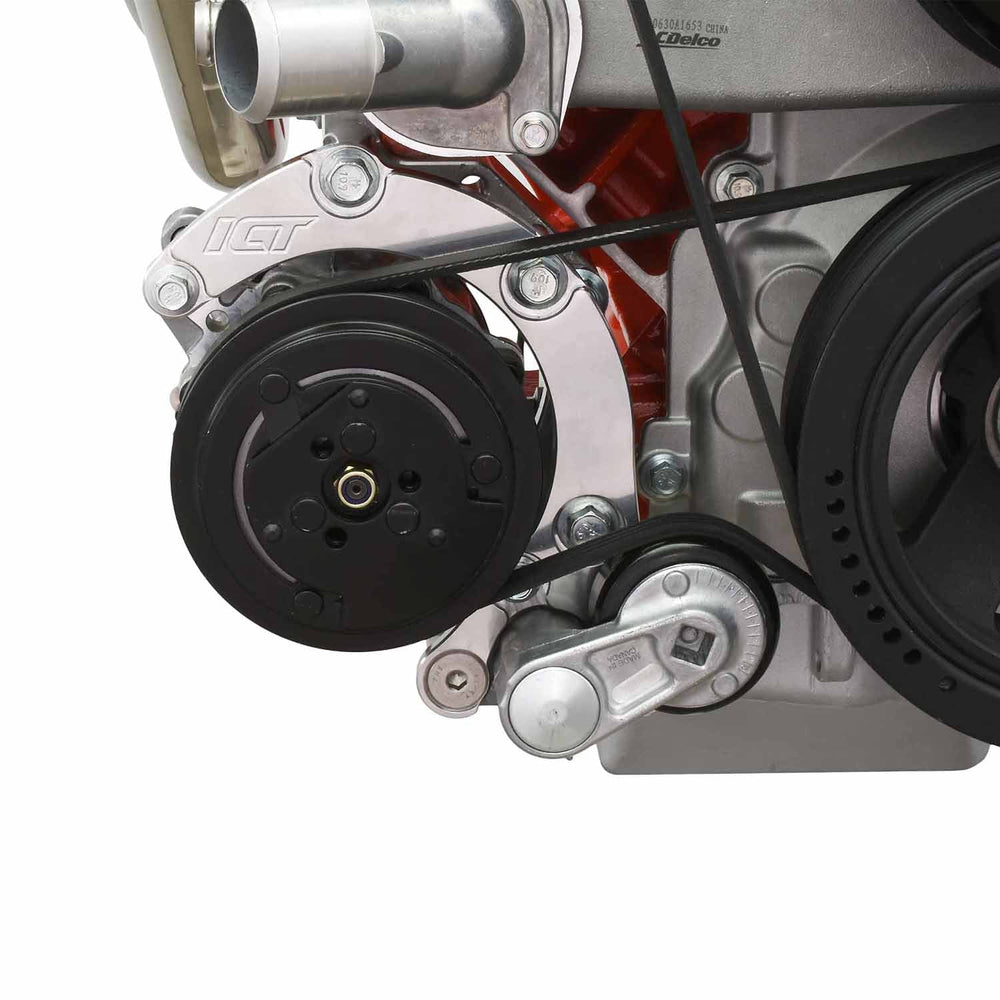

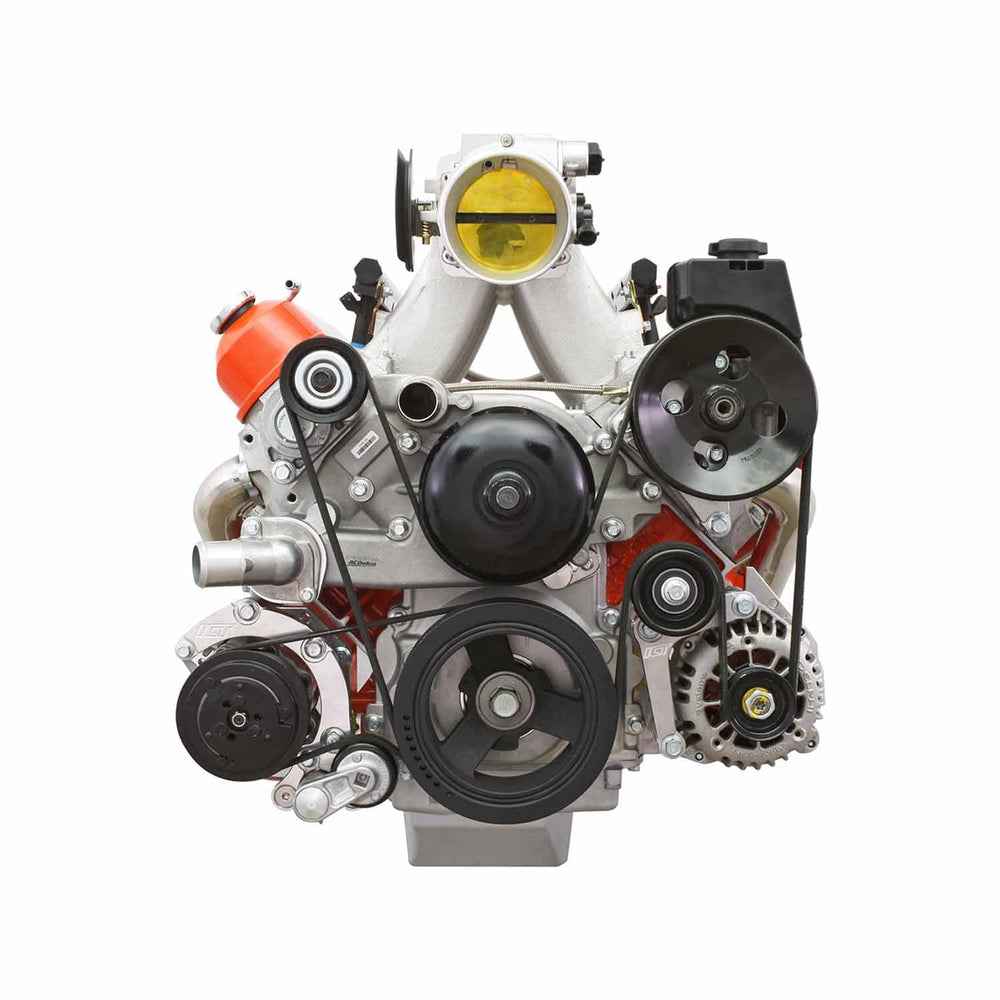

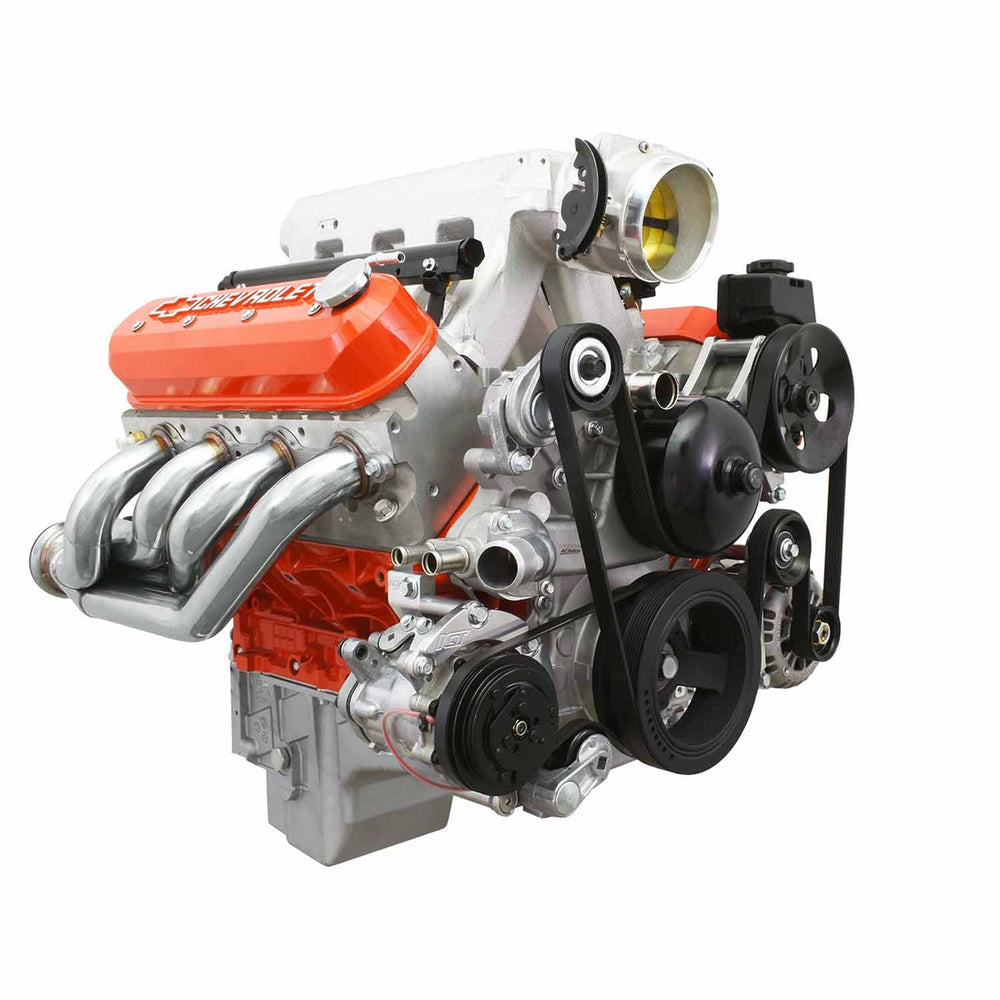

LS - 4-Rib - Sanden 7176 A/C Compressor Bracket Kit

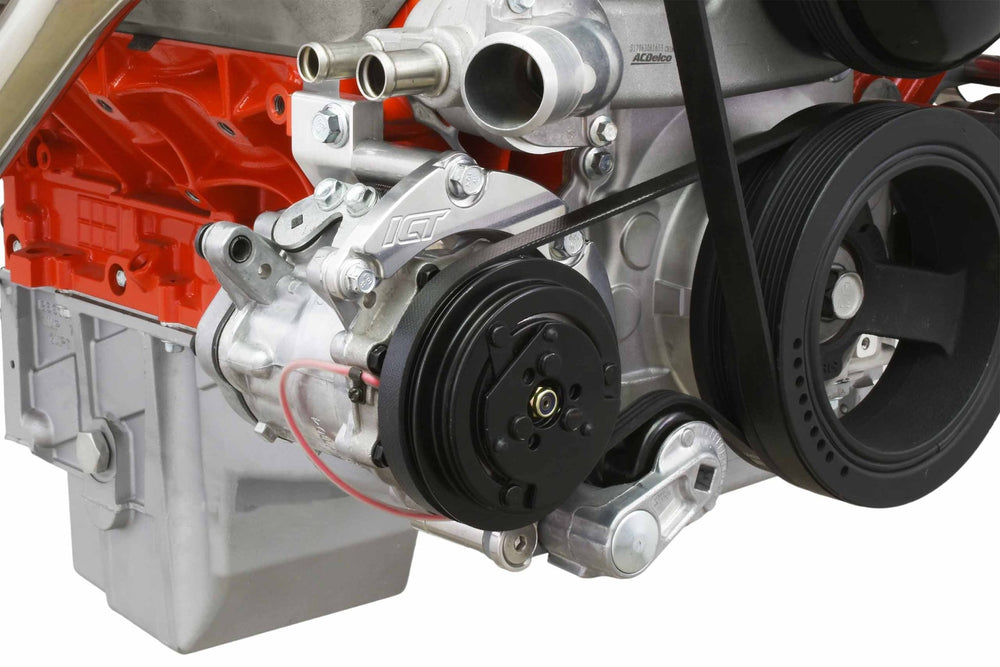

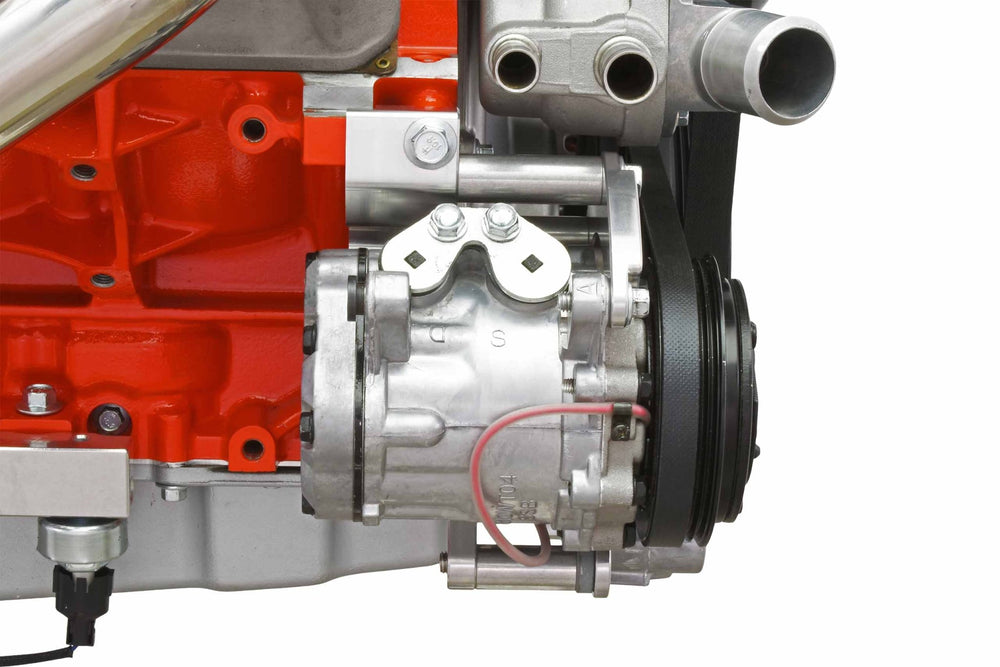

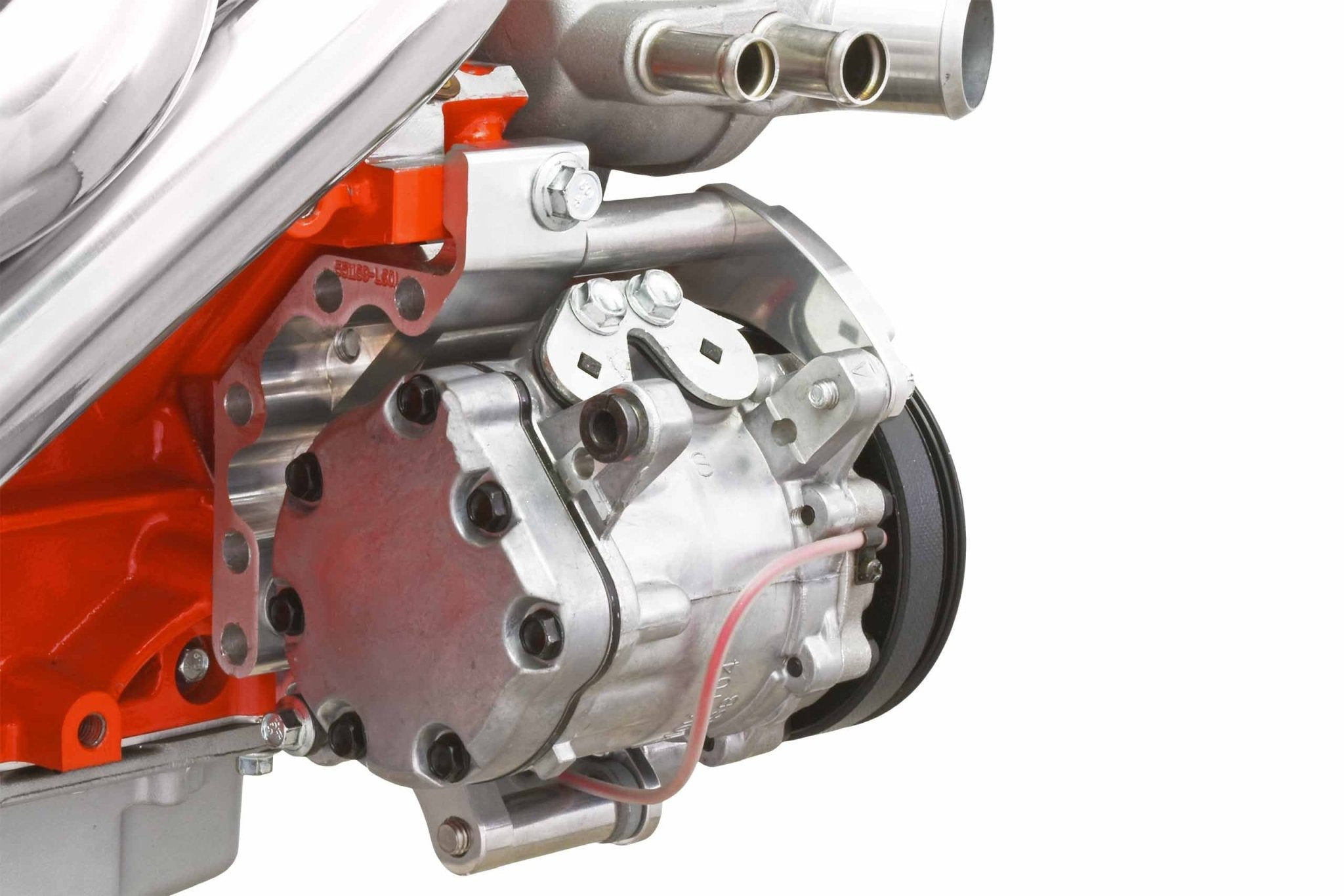

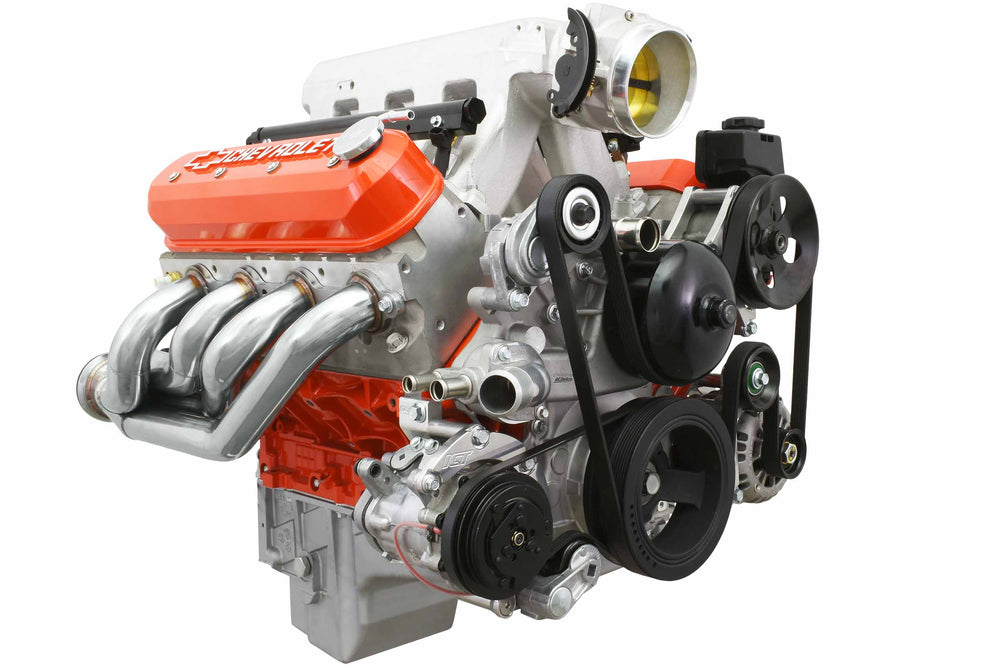

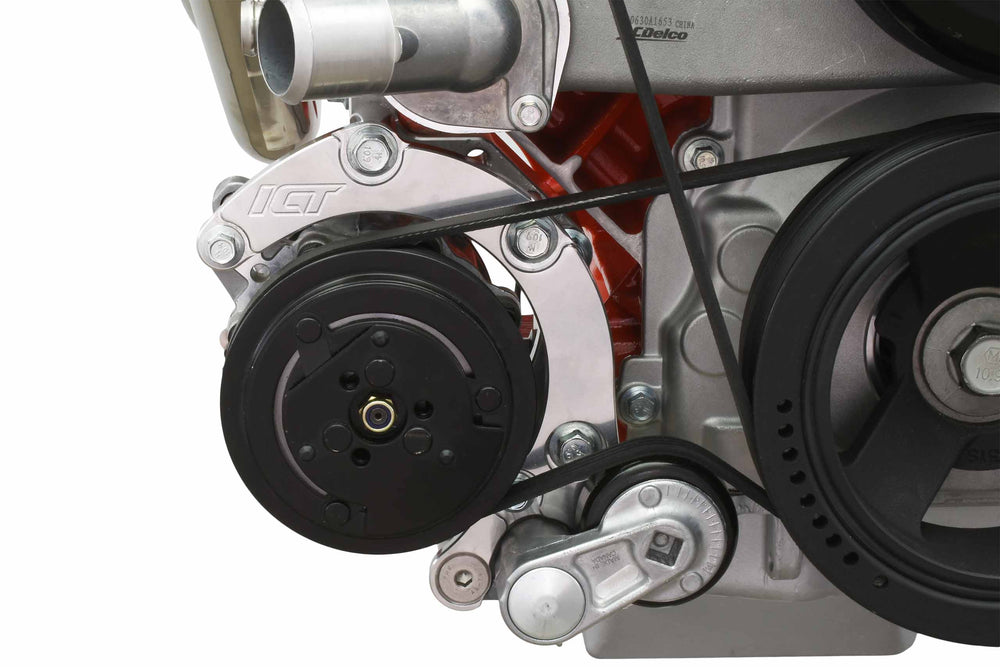

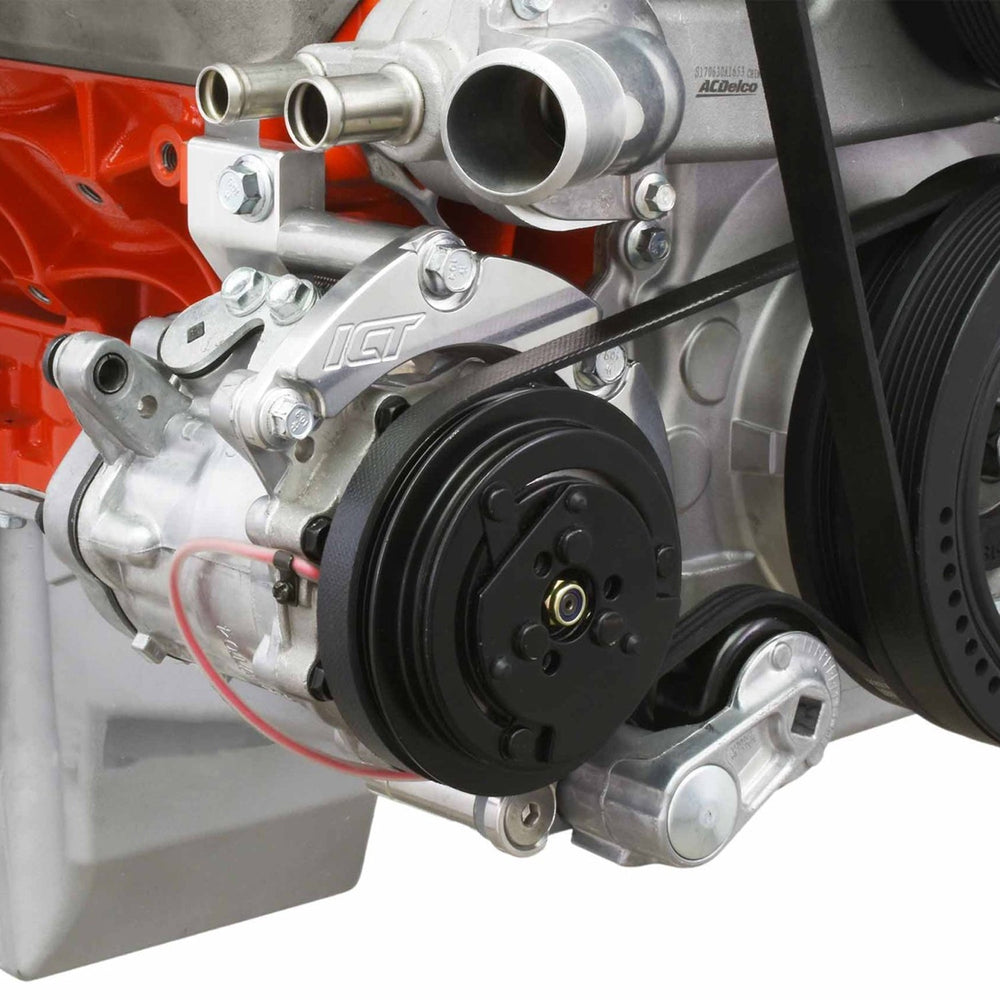

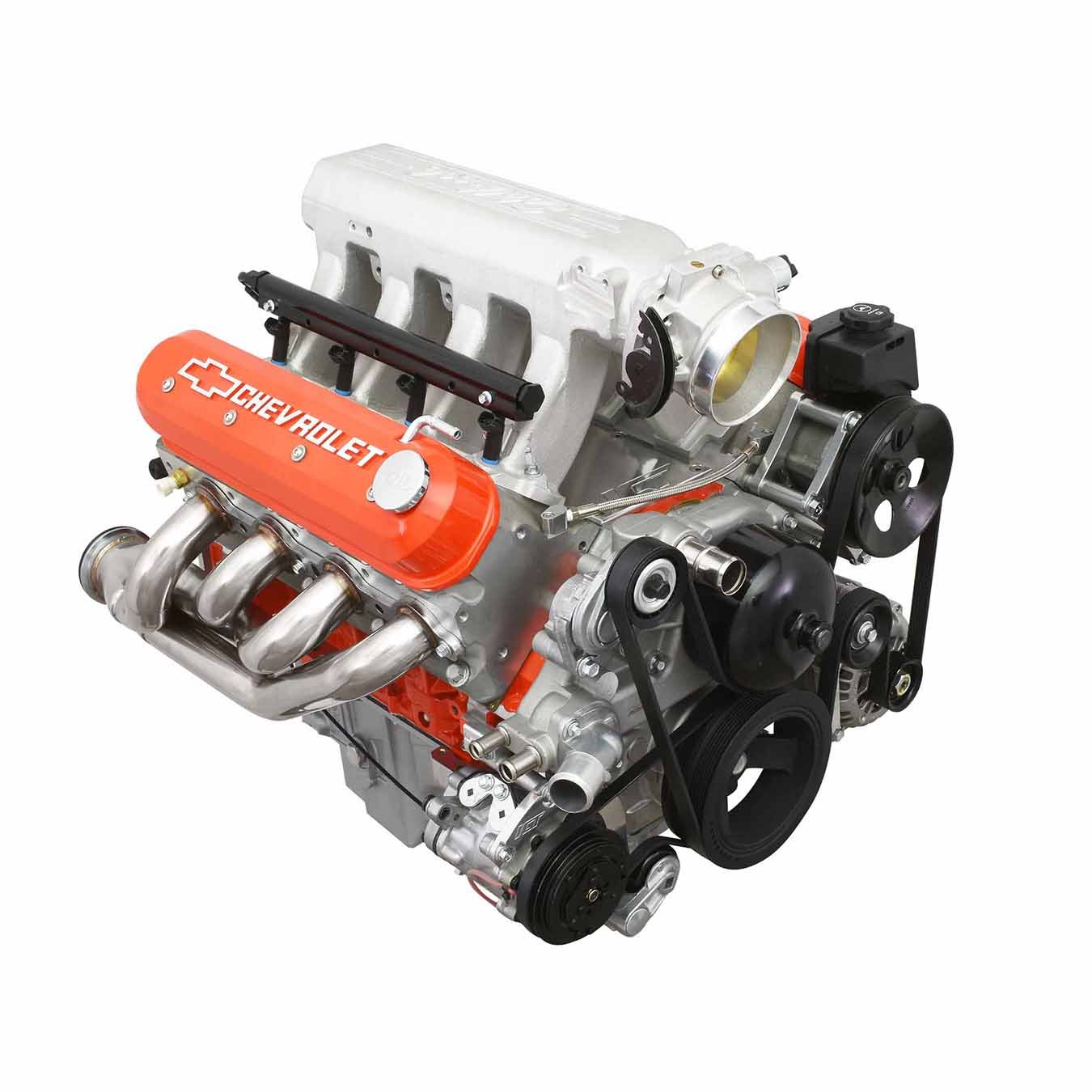

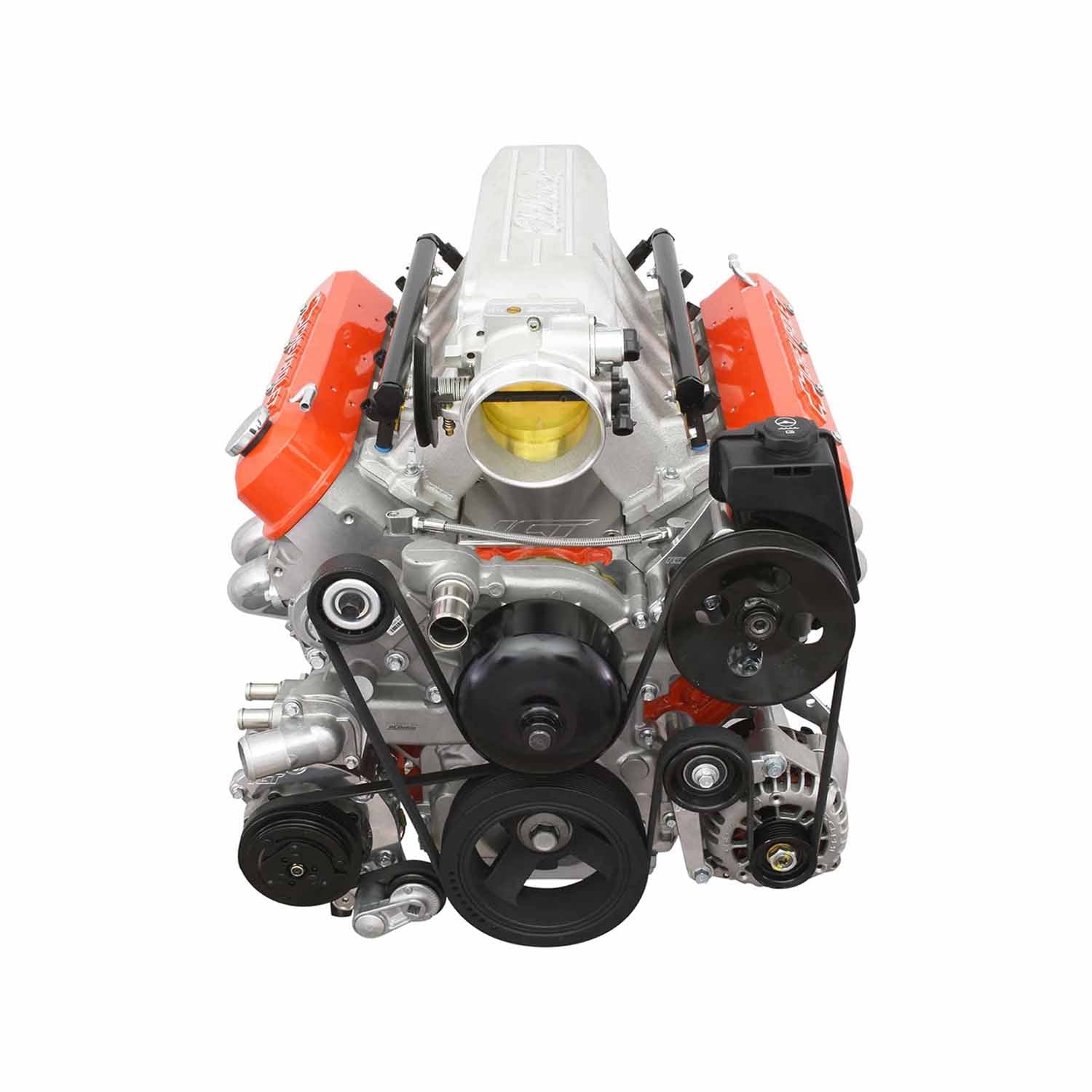

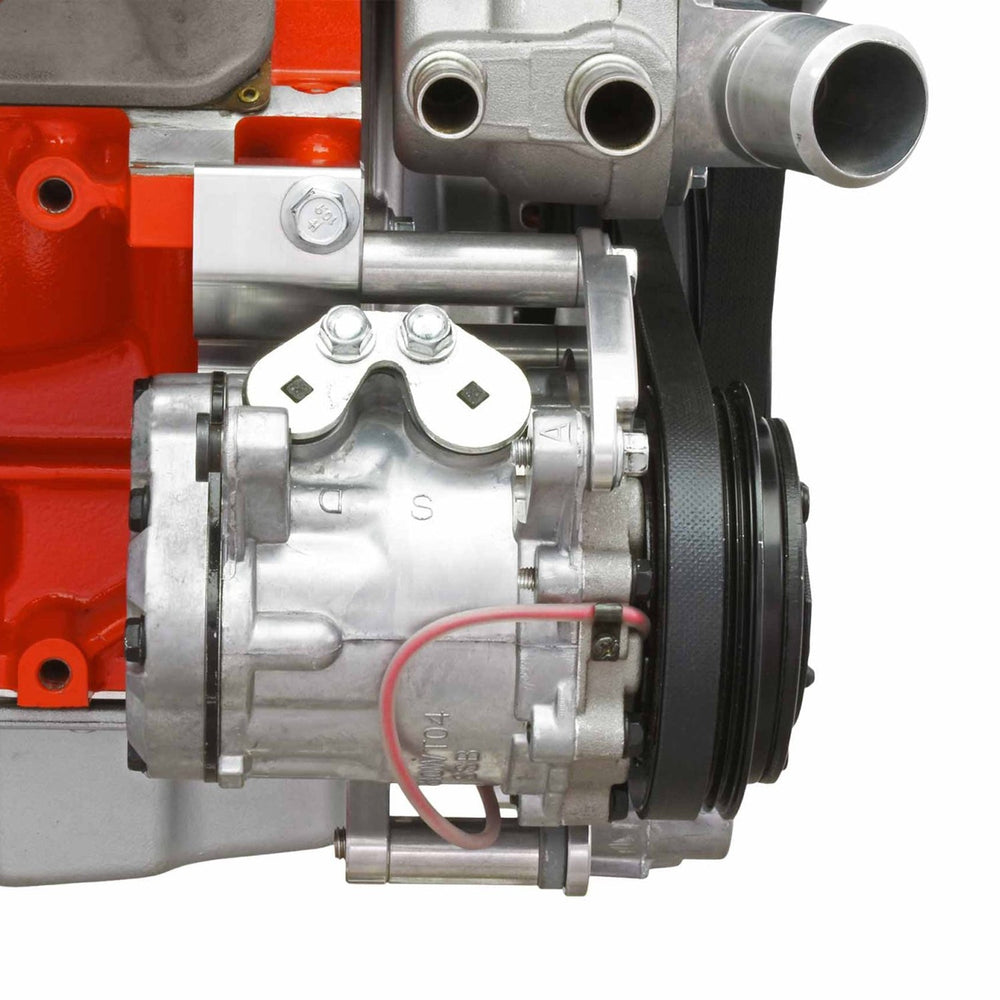

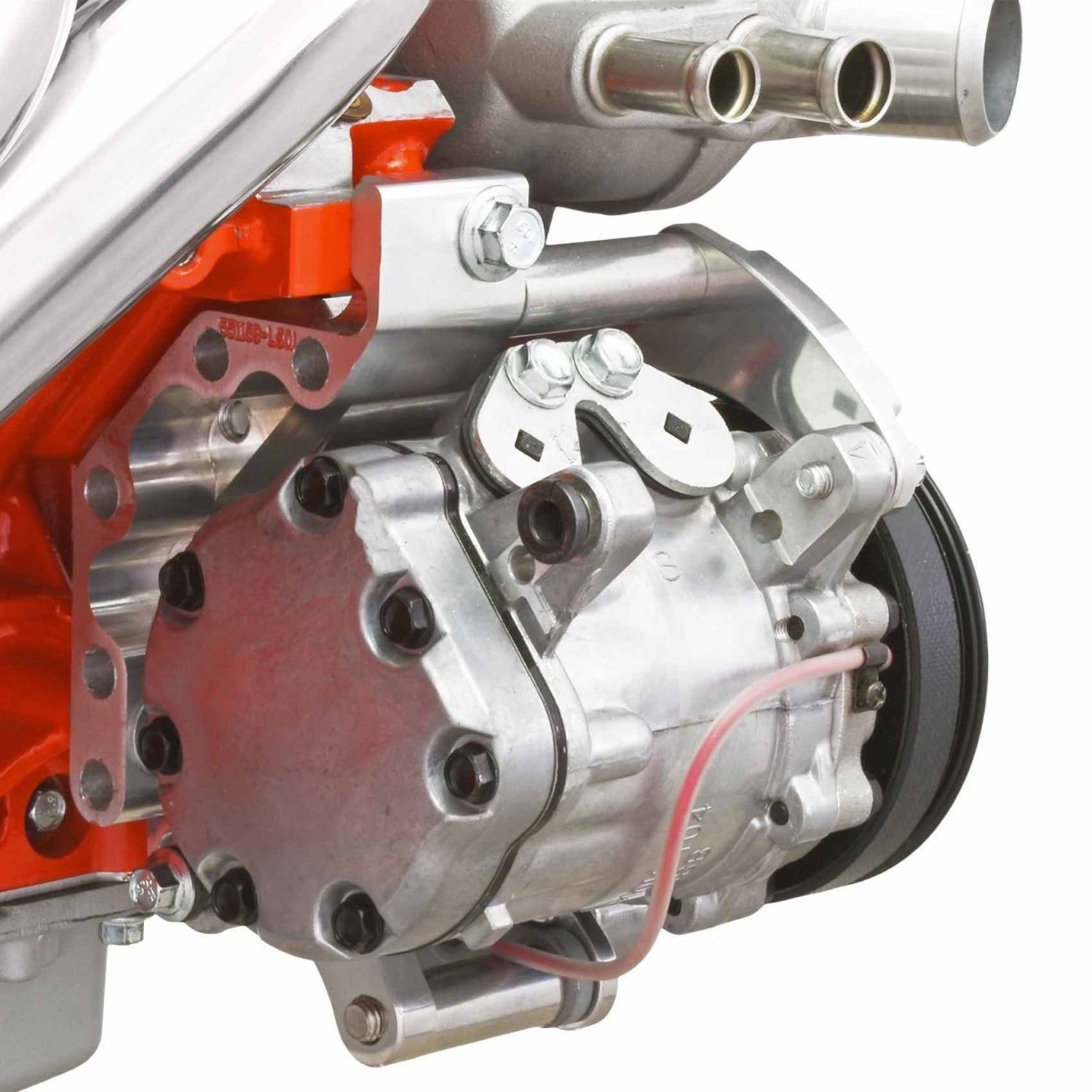

Mounts the aftermarket style "Sanden 7176" (SD7) compressor down low on the passenger side in the factory LS compressor location

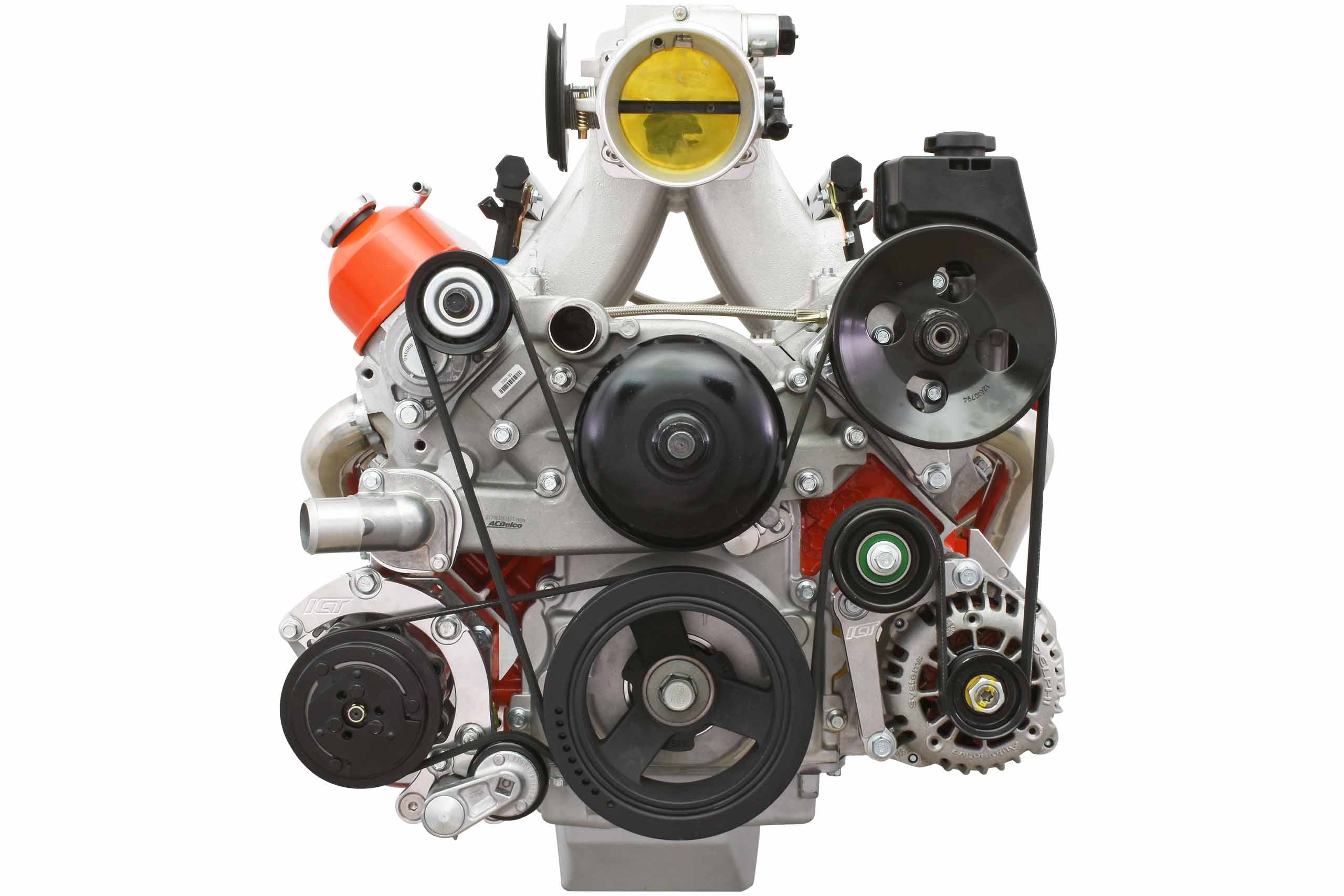

  • Aligns compressor with the rear, 4-rib belt location on the crankshaft pulley
  • Compatible with 1998 to 2002 Camaro crank pulley or GTO (ICT# BAL200)
  • Compatible with LS1 Camaro water pump (ICT# WAT200)
  • Not compatible with "stock" small block chevy motor mount location, using ICT Billet LS swap plates (ICT# 551628)

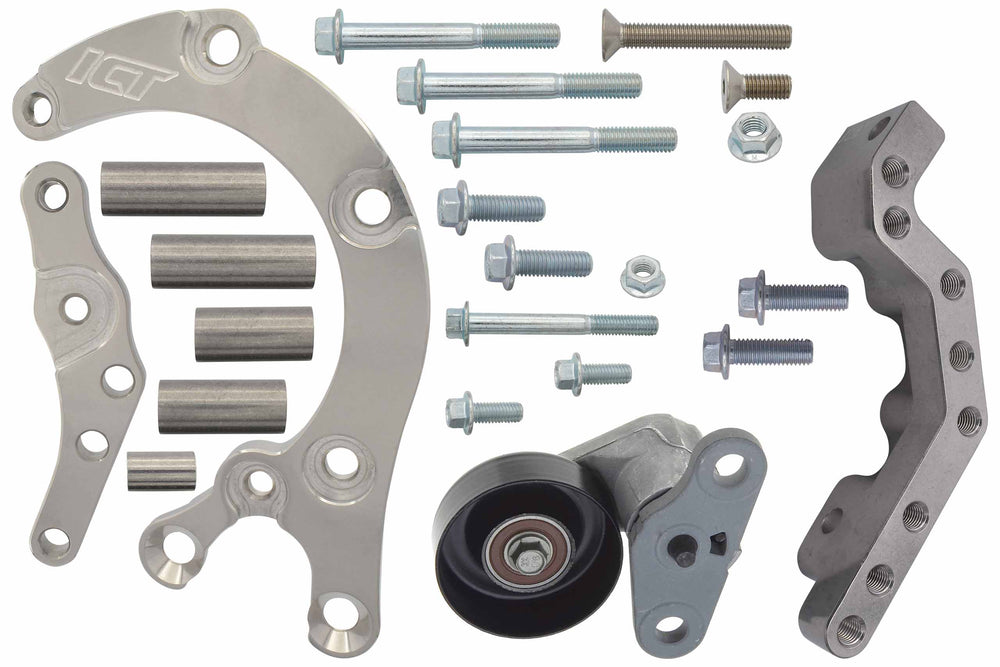

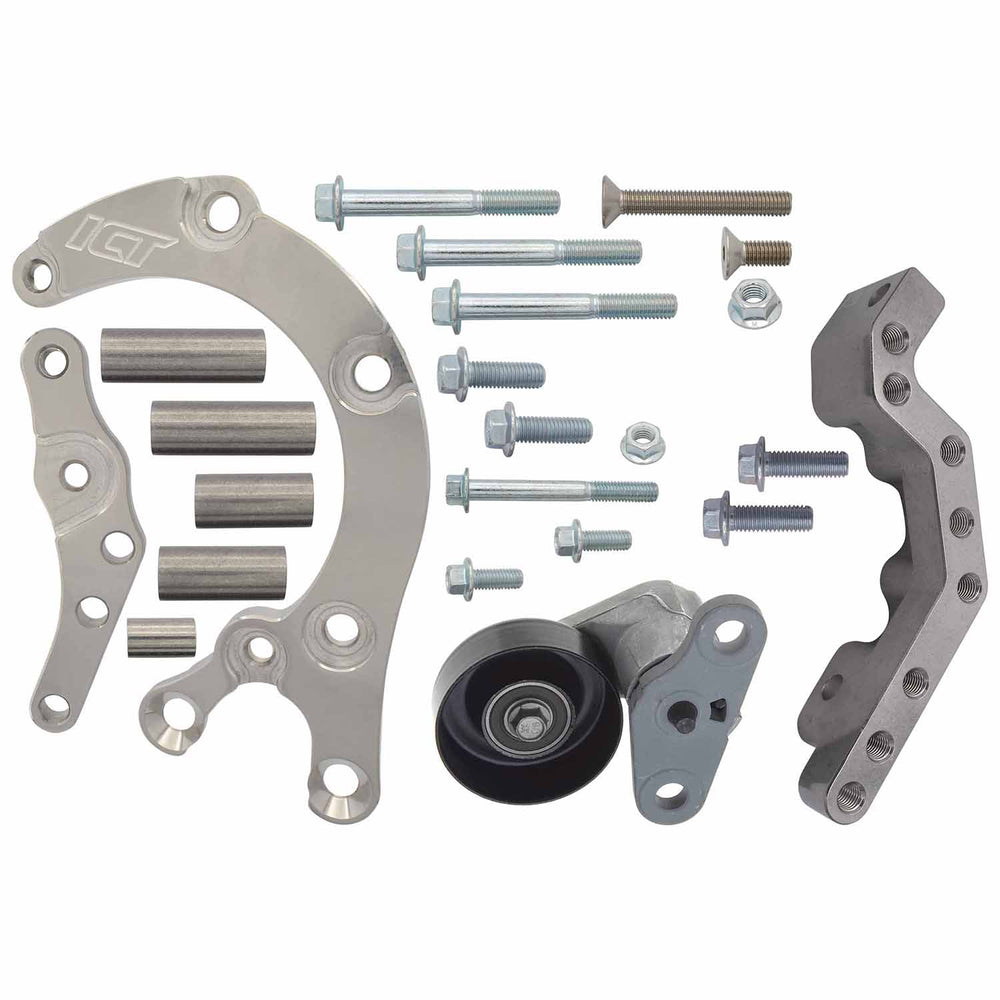

  • Includes: bracket, mounting hardware, and belt tensioner
  • Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
Belt length (373K4) (37.3 inch) *note this does NOT fit factory style LS vehicle a/c compressors

Earn [points_amount] when you buy this item.

WARNING Prop 65 >>

More Information

PRODUCT SPECIFICATION

ICT Manufacturer Manufacturer Part Number UPC Weight Length Inches Width Inches Height Inches Downloadable PDF for Vehicle
ICT Billet 551137-LS74-2 840117201934 3.82 lb 9 in 6 in 3 in No
