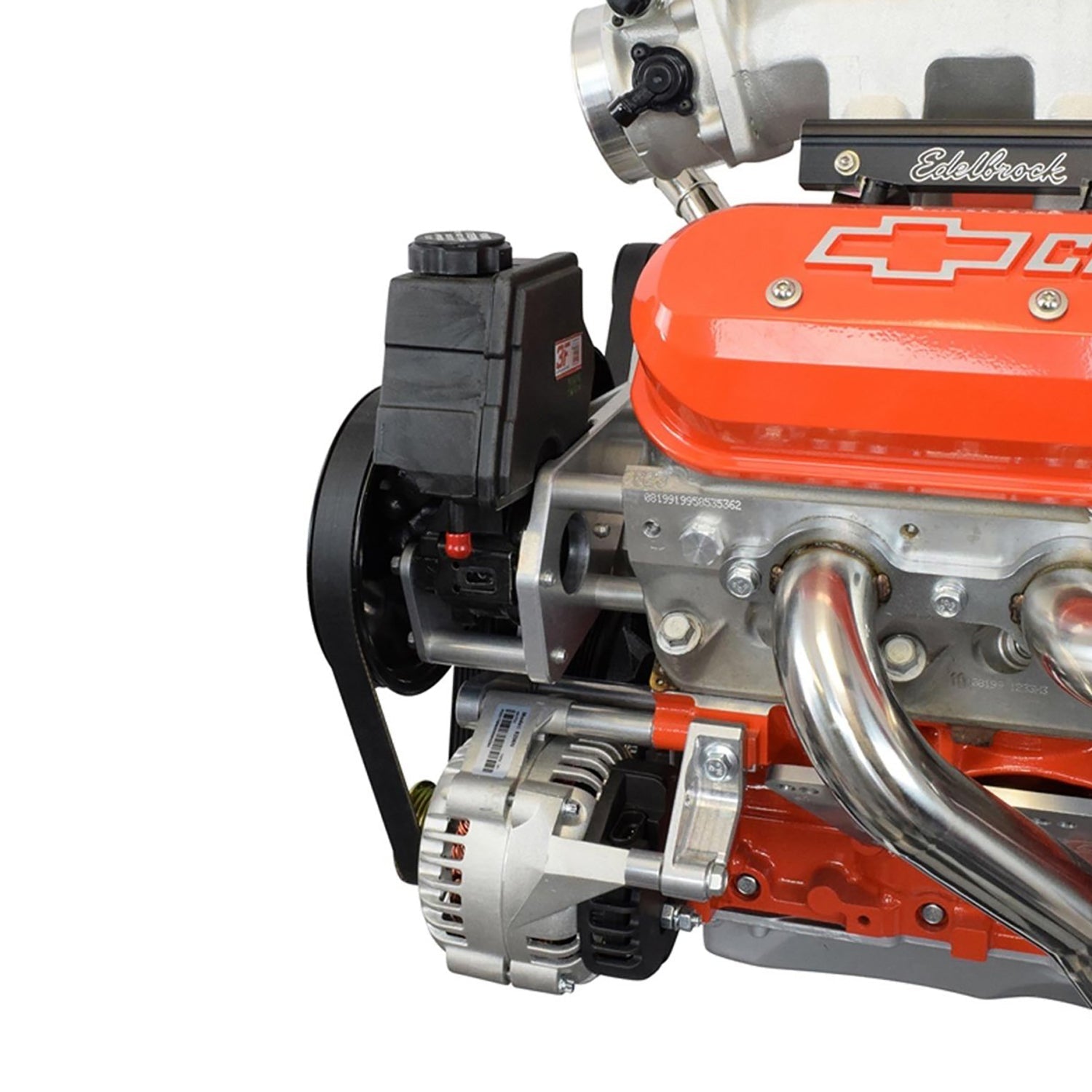

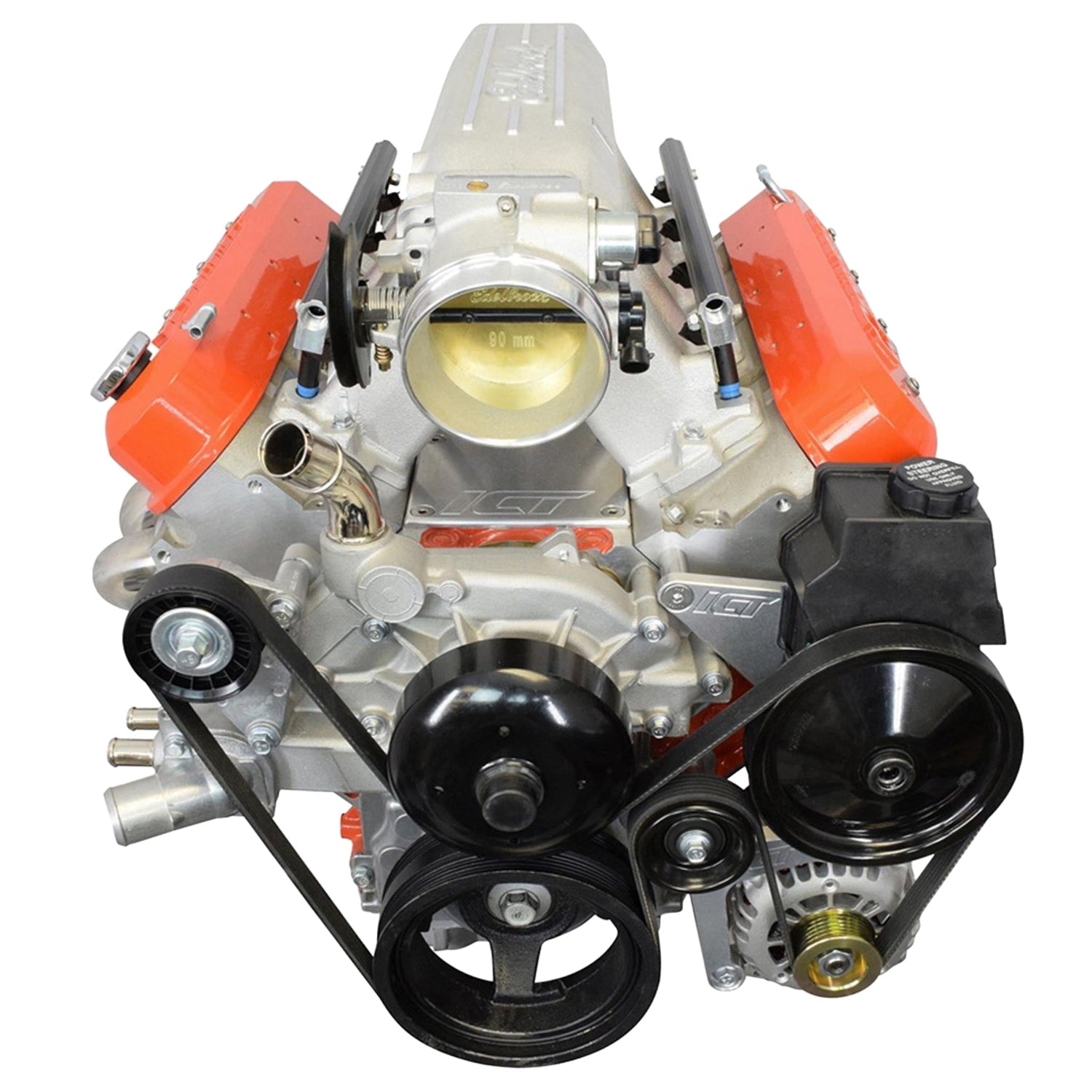

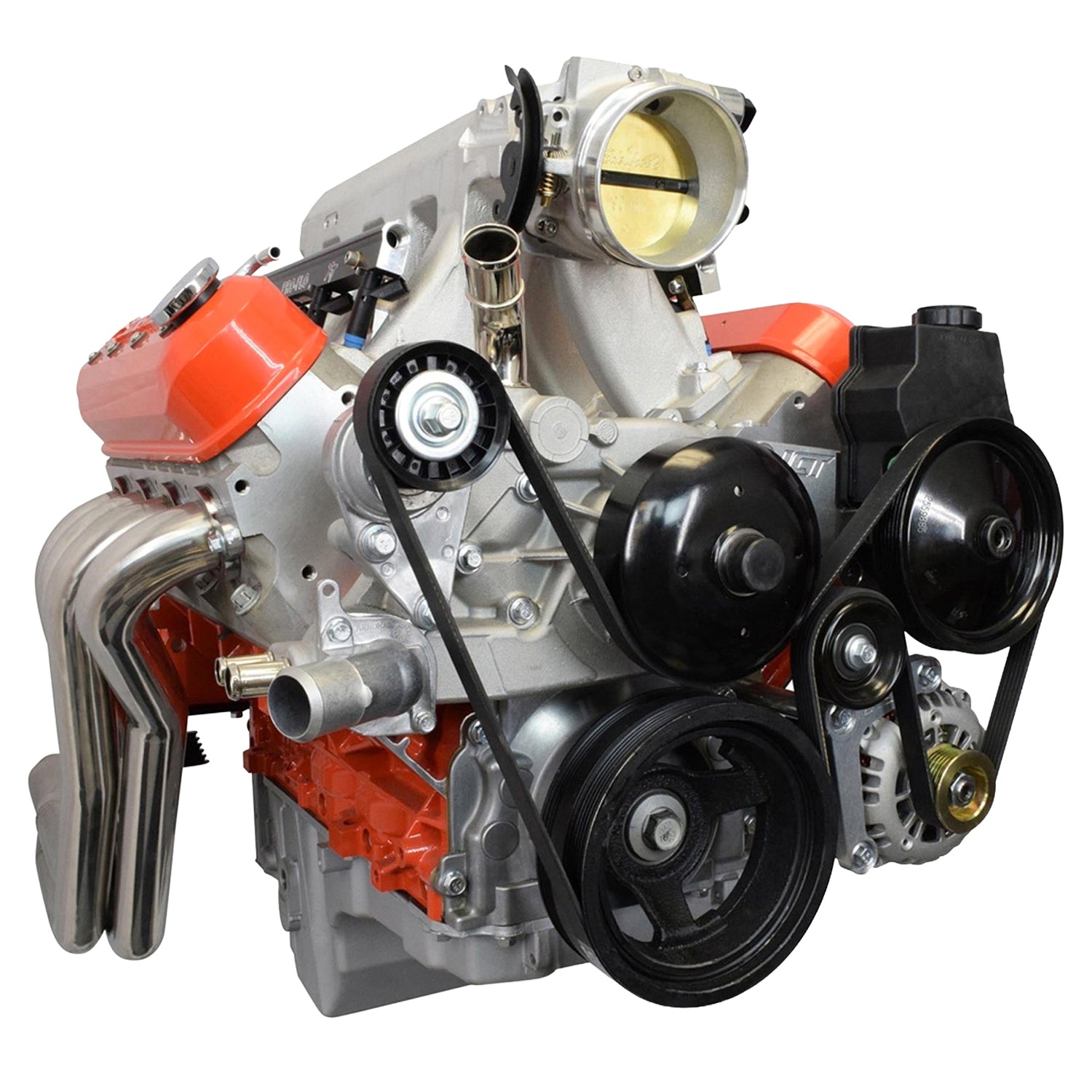

LS Truck Low Mount Alternator Power Steering Pump Bracket LSX LS3 LQ4 LQ9 Billet

Truck Alternator and Power Steering Pump Bracket Kit

Compatible with: truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)

• When using an iron block, we highly recommend using our front support bracket to add the 3rd mounting point for the alternator bracket SKU 551921-LS01.
• Compatible with: 1998-02 LS1 Camaro power steering pump & pulley (ICT # PUM200 & ICT #PUL200)
• Alternator: (ICT# ALT300)(will not fit Corvette/CTSV/G8 or 2010 up Camaro large bolt pattern alternators), will fit any other LS powered vehicle alternators with any amperage. 145+ alternators do not have the provision for the rear bracket.
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

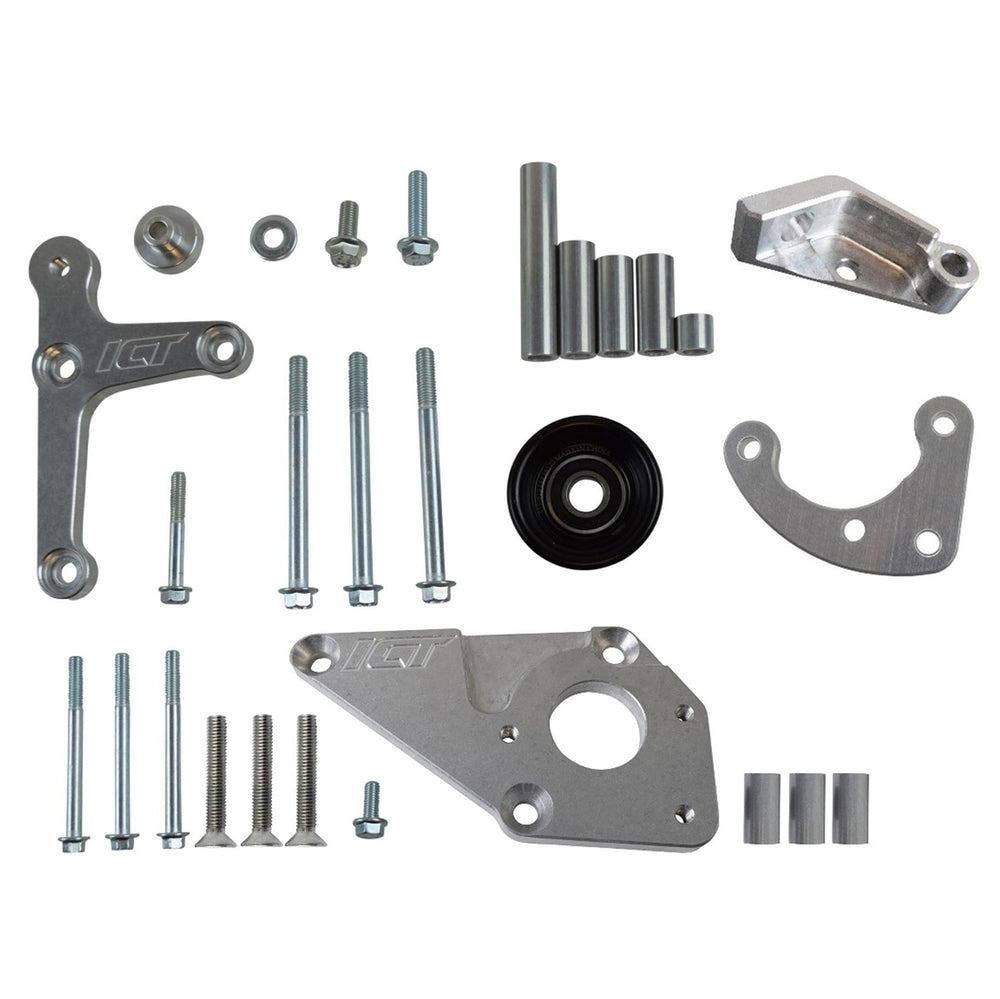

• Includes: alternator bracket, power steering bracket, smooth pulley, and mounting hardware
• **Compatible with: all GM LS series engines
• If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)

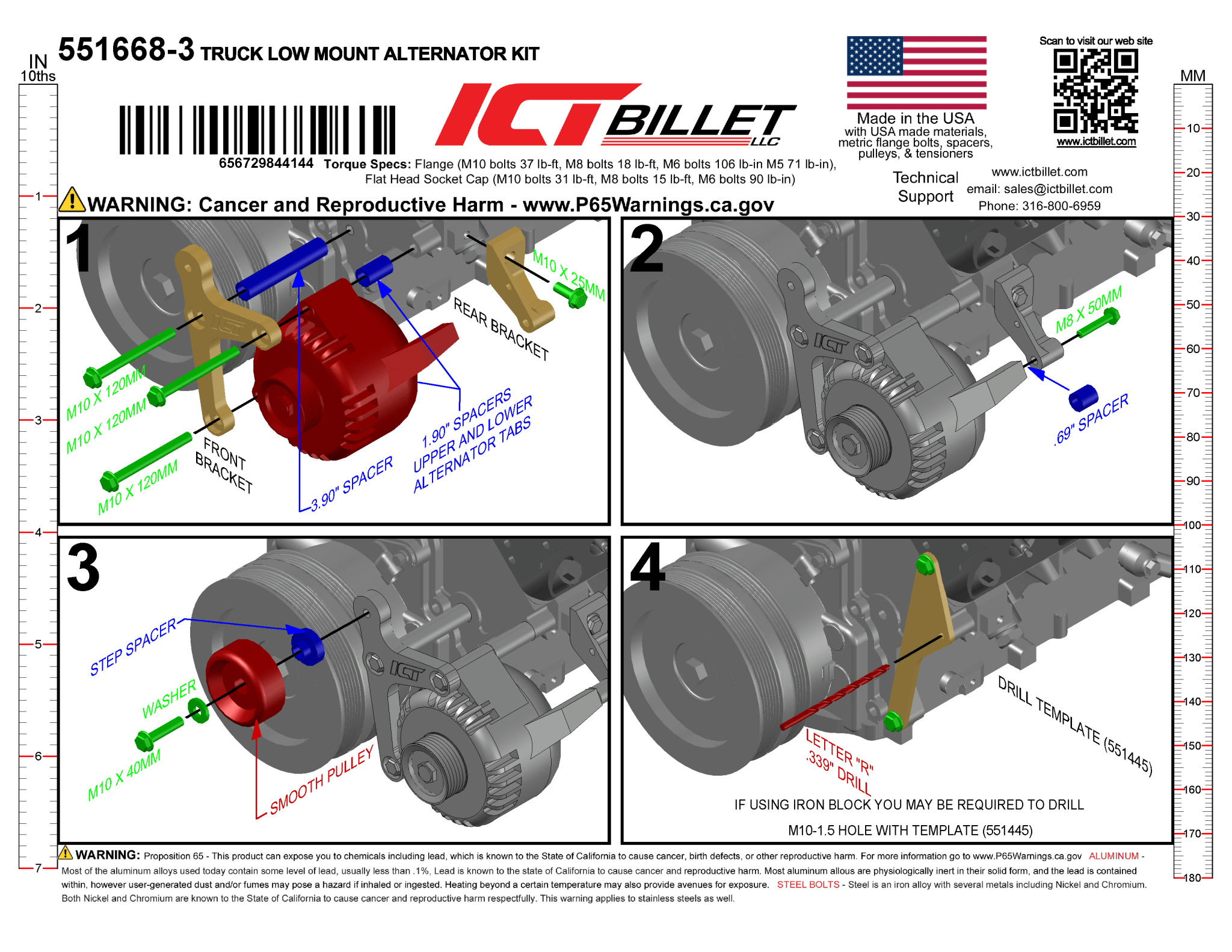

**On "truck" engine blocks with only 1 mounting hole in the block, you will be required to drill a second mounting hole using drill template 551445

790K6 (79.0 inch) belt with 105 amp alternator and factory belt tensioner

965K6 (96.5 inch) belt with 105 amp alternator and ICT Billet 551472LS-3 Sandn 7176 A/C Kit

987K6 (98.7 inch) belt with 105 amp alternator and ICT Billet 551474-3 Sanden 508 A/C kit

980K6 (98.0 inch) belt with 105 amp alternator and ICT Billet 551585X-3 R4 A/C kit
