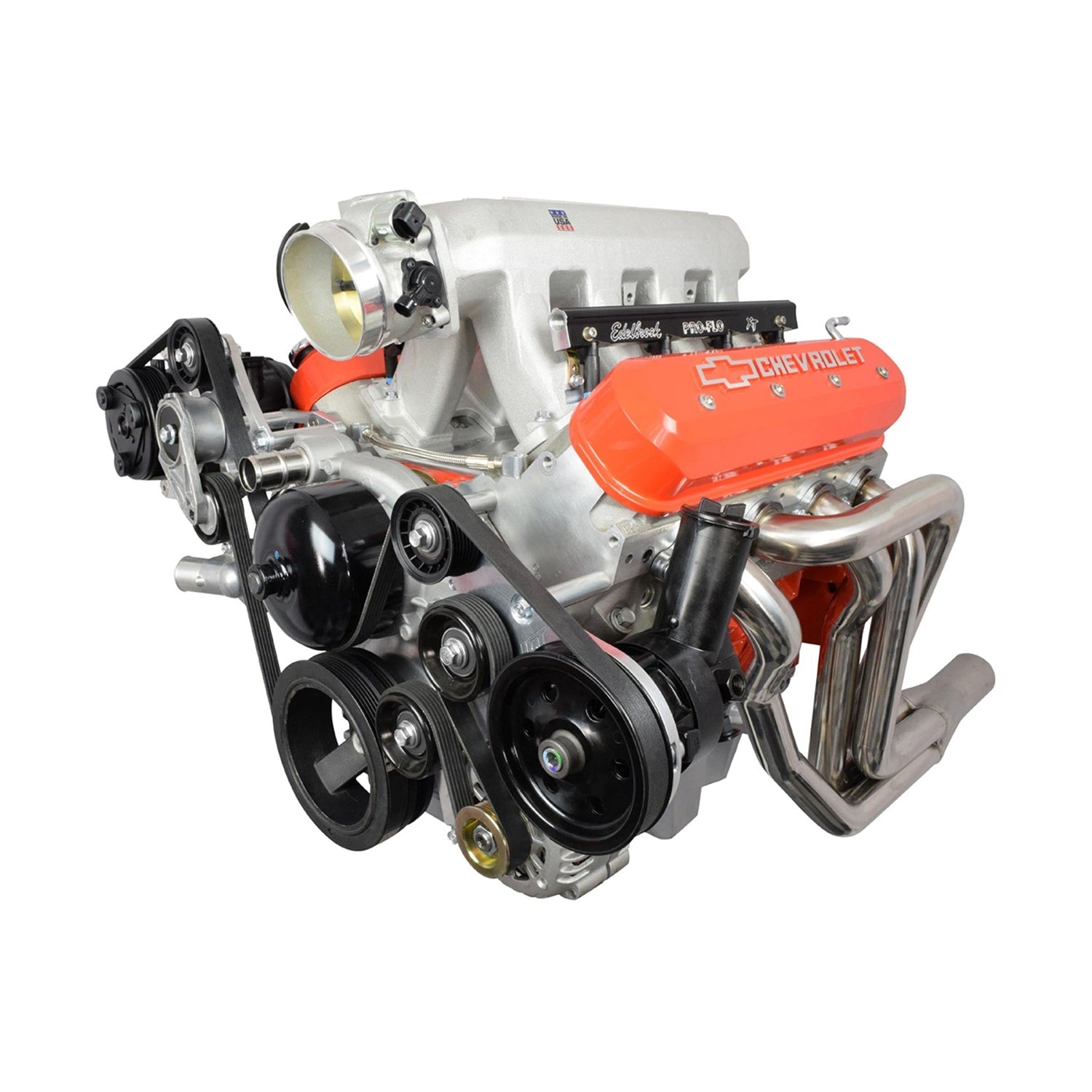

LS OEM Fox Body A/C Compressor Alternator Power Steering Bracket Swap Mustang AC

Price
$359.99
SKU#: 551795-2
5 in stock

Product Description

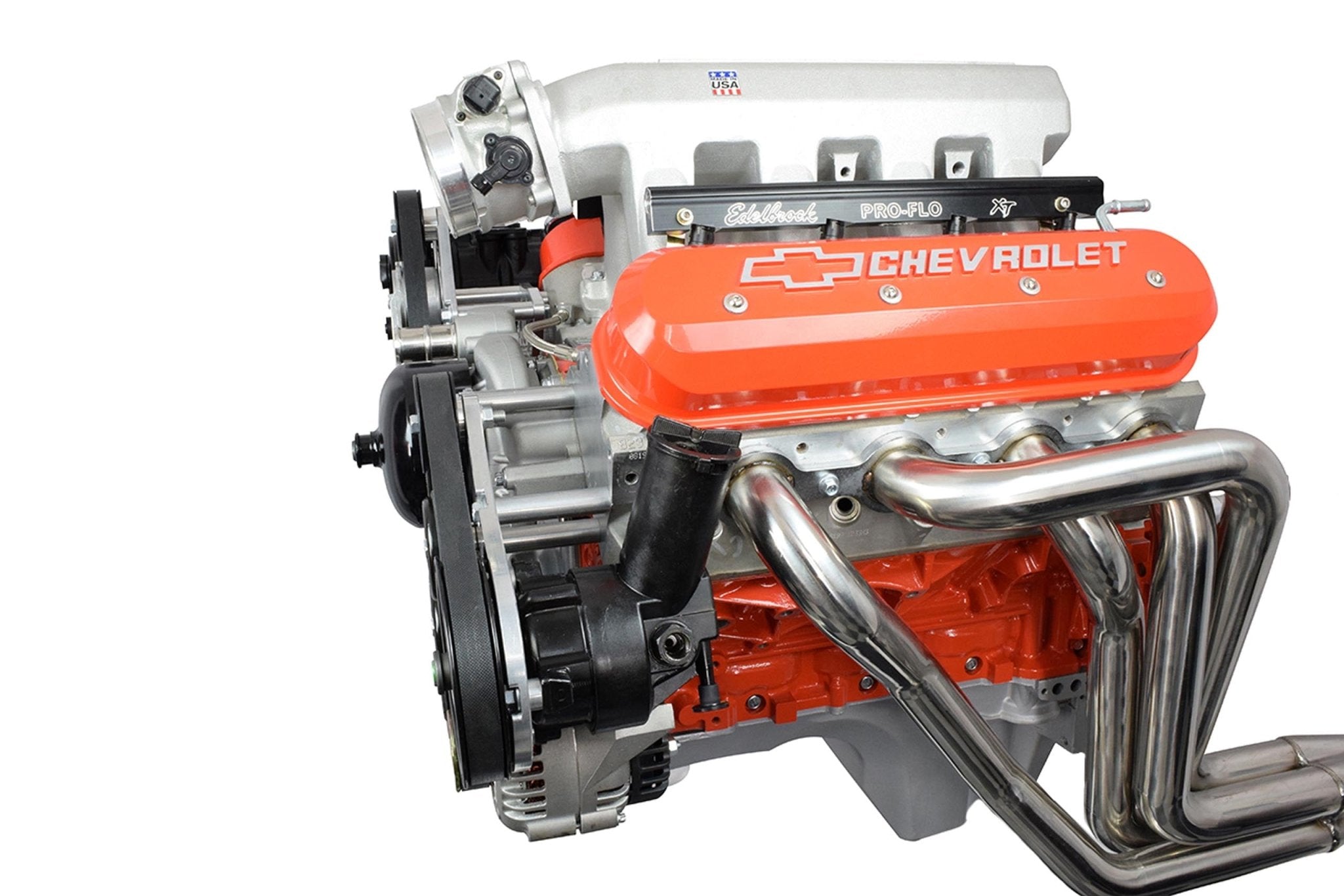

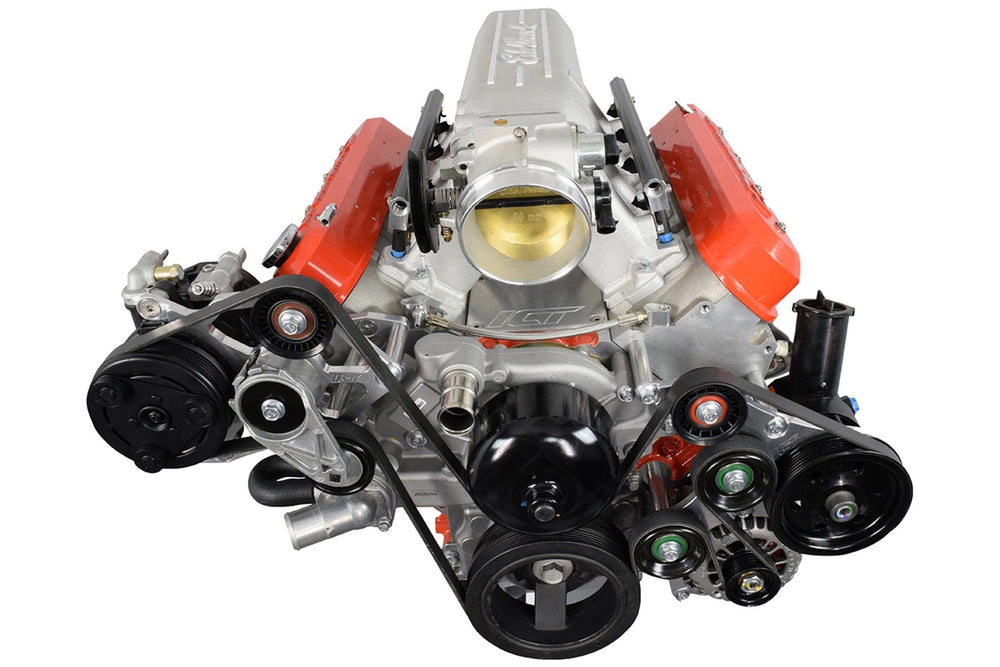

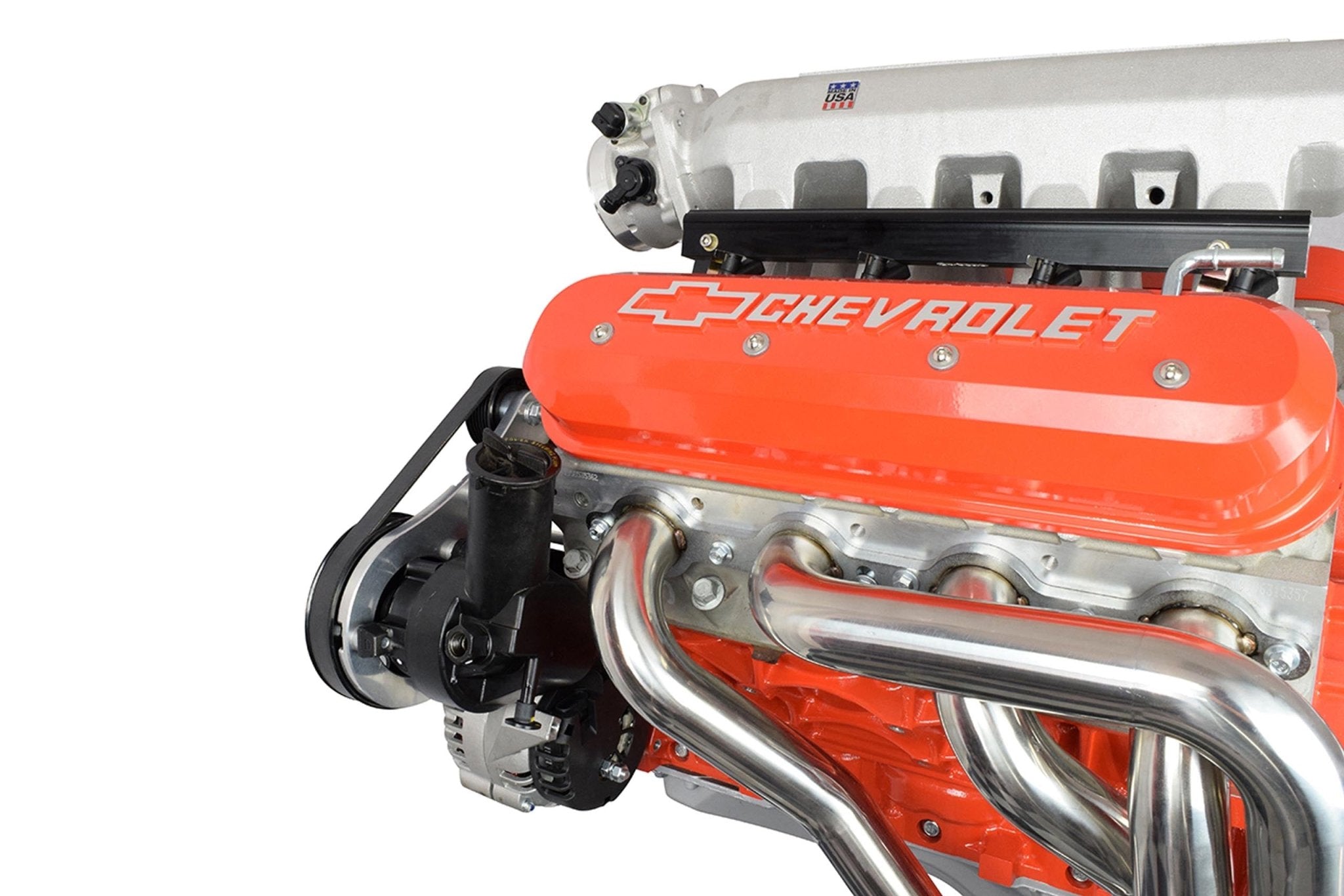

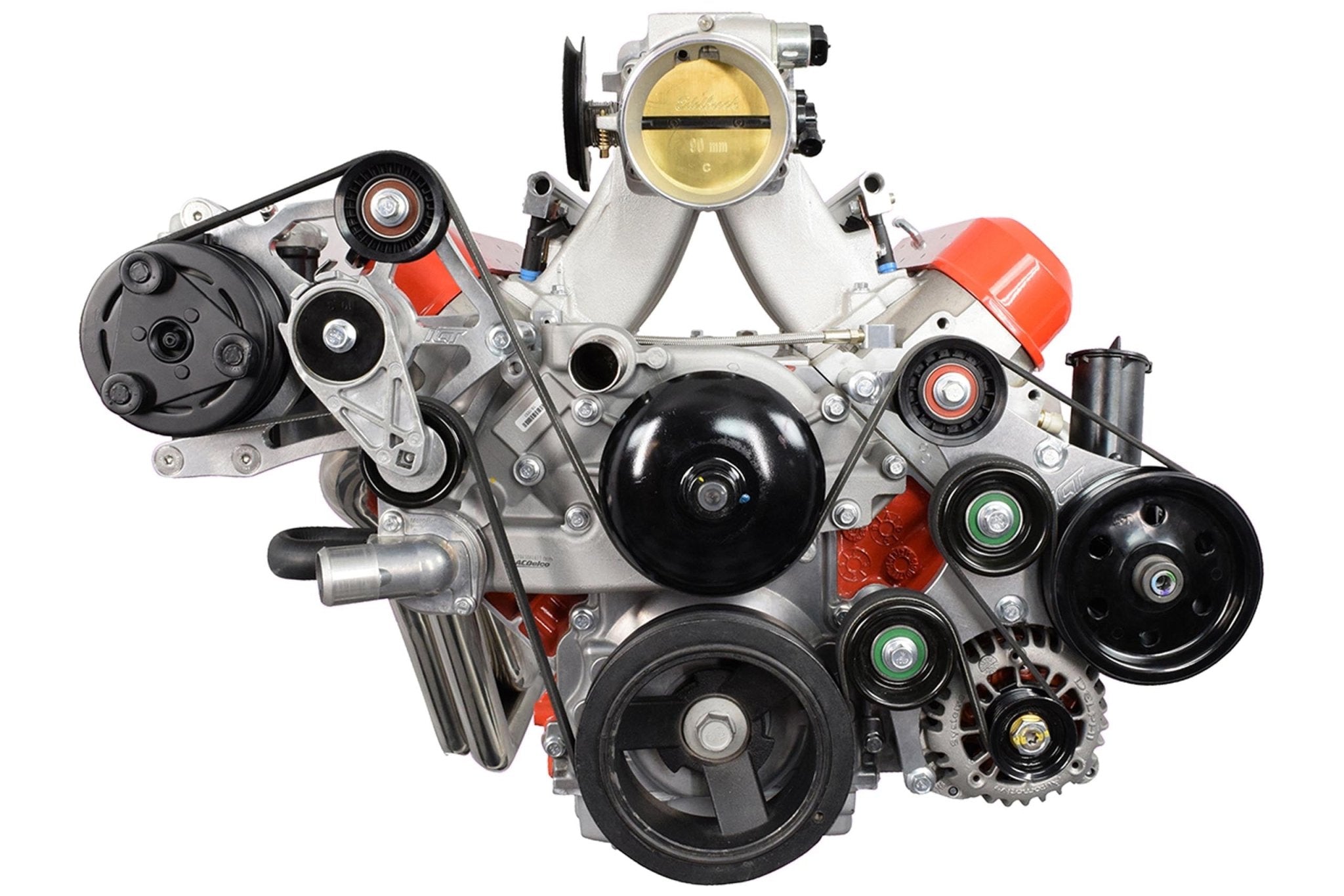

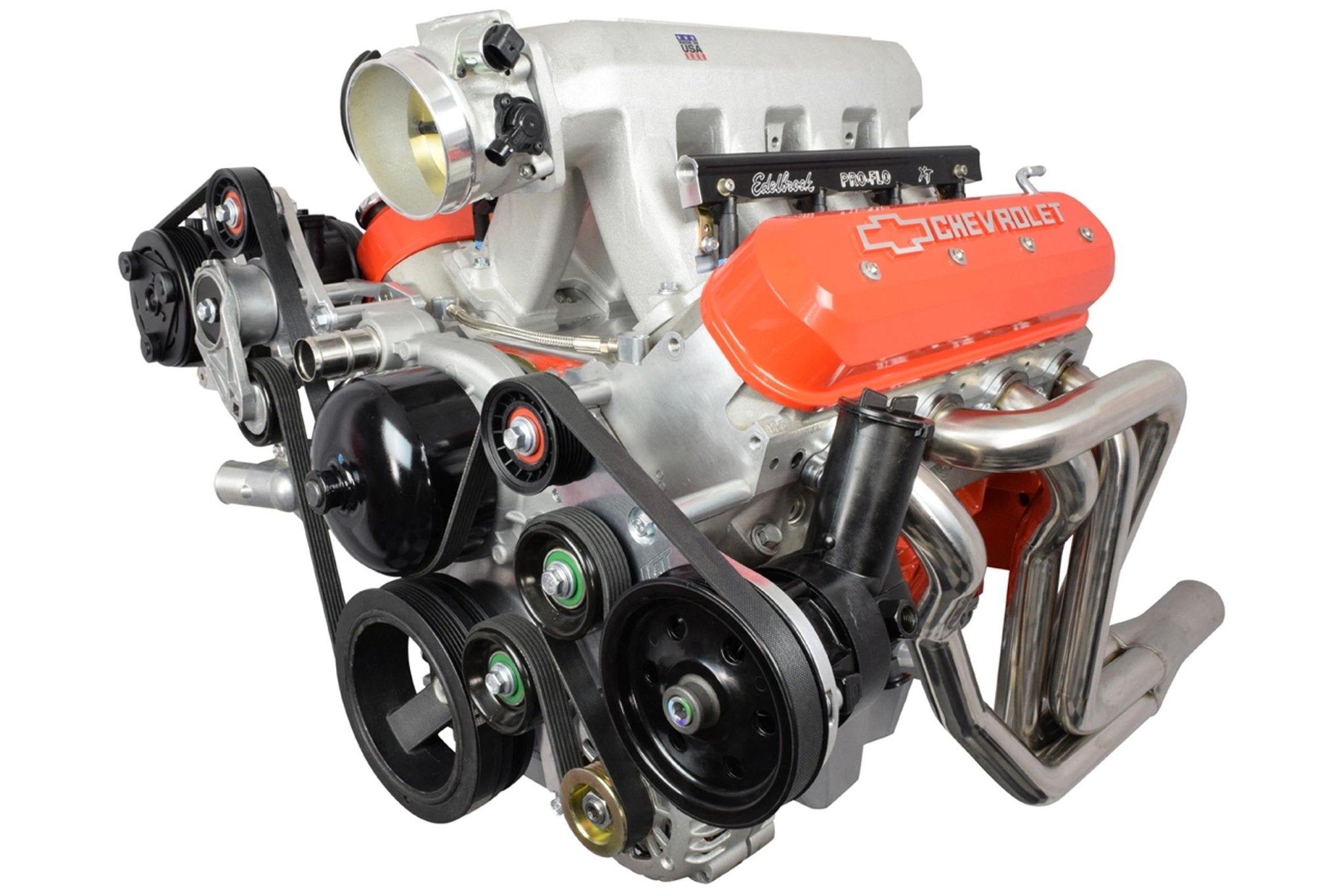

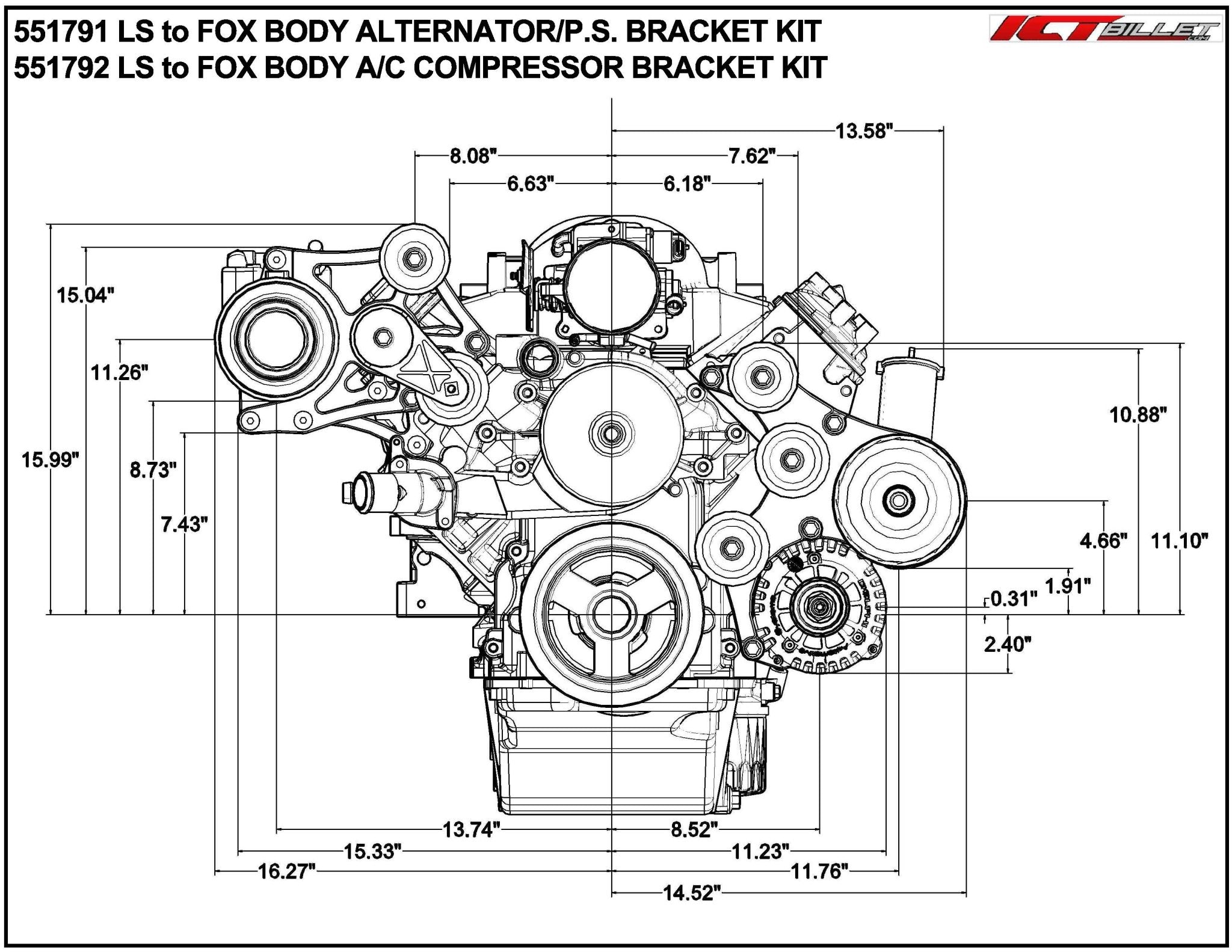

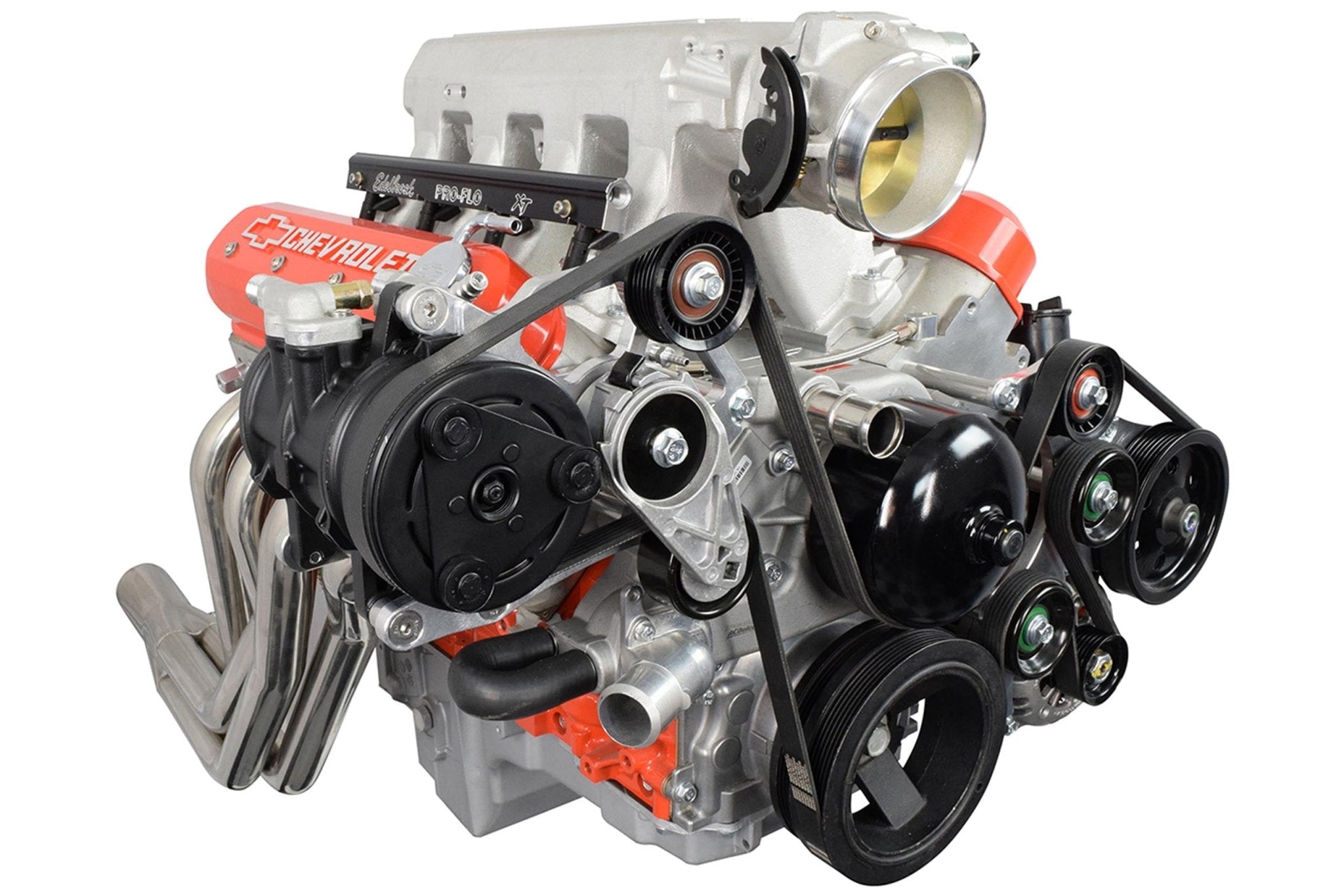

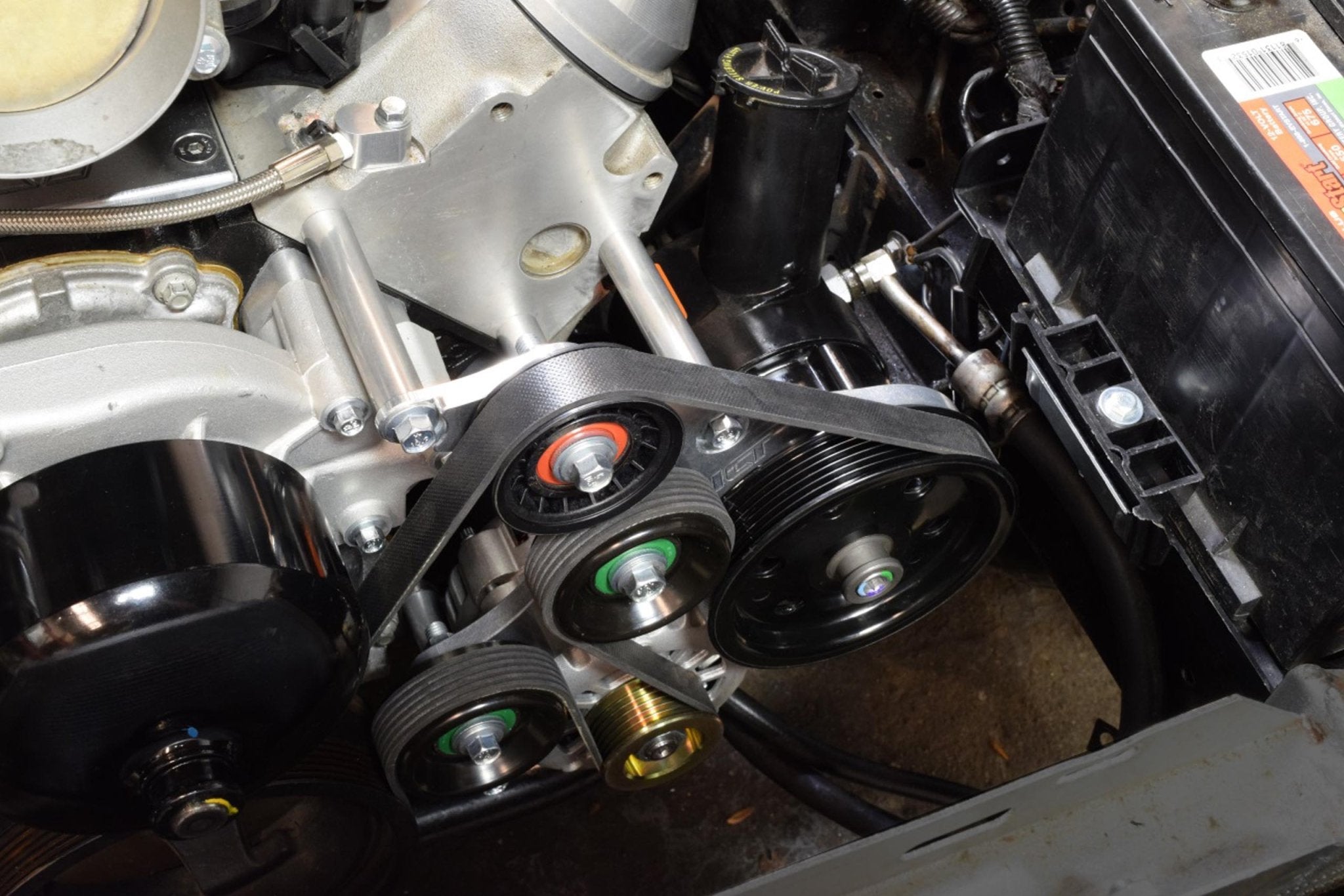

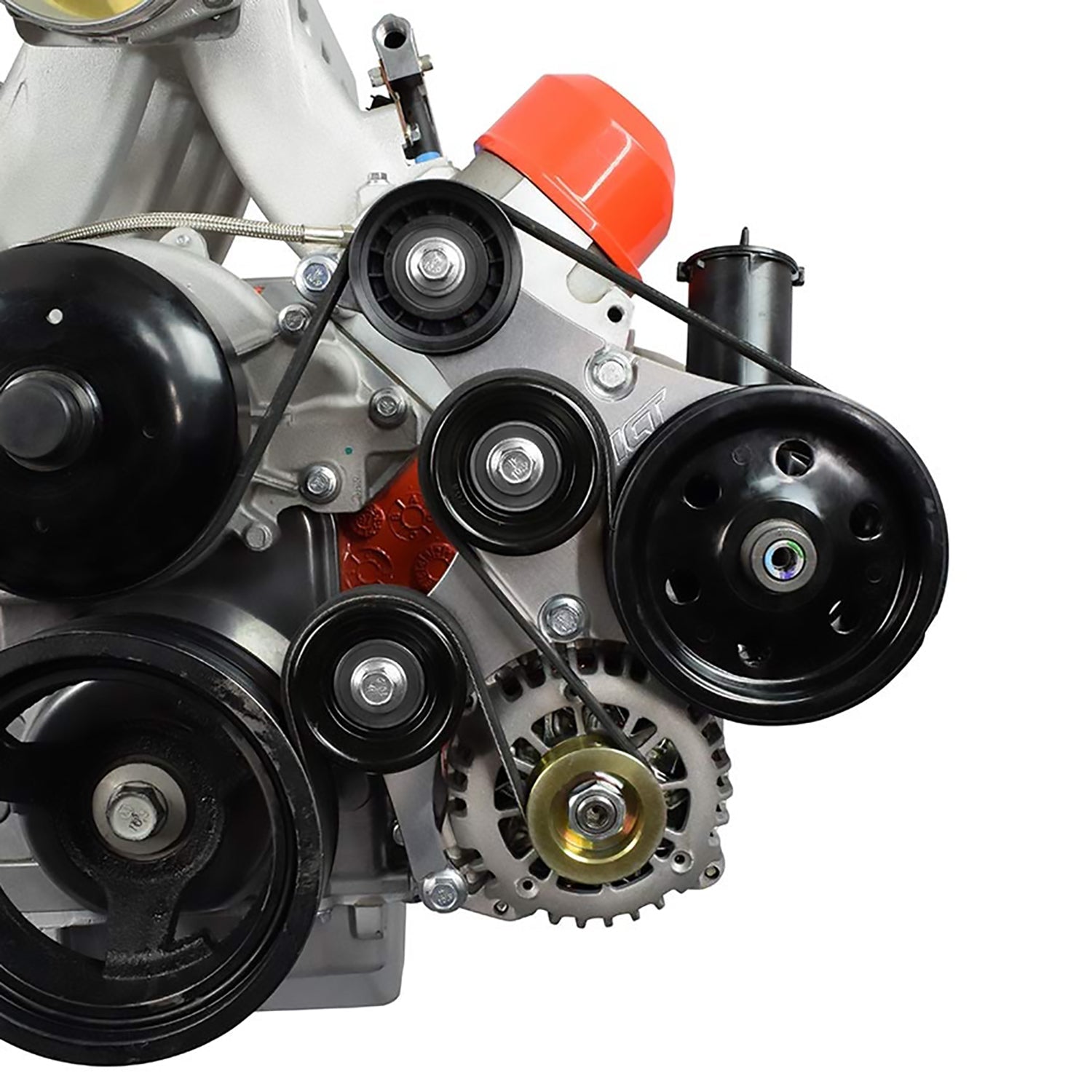

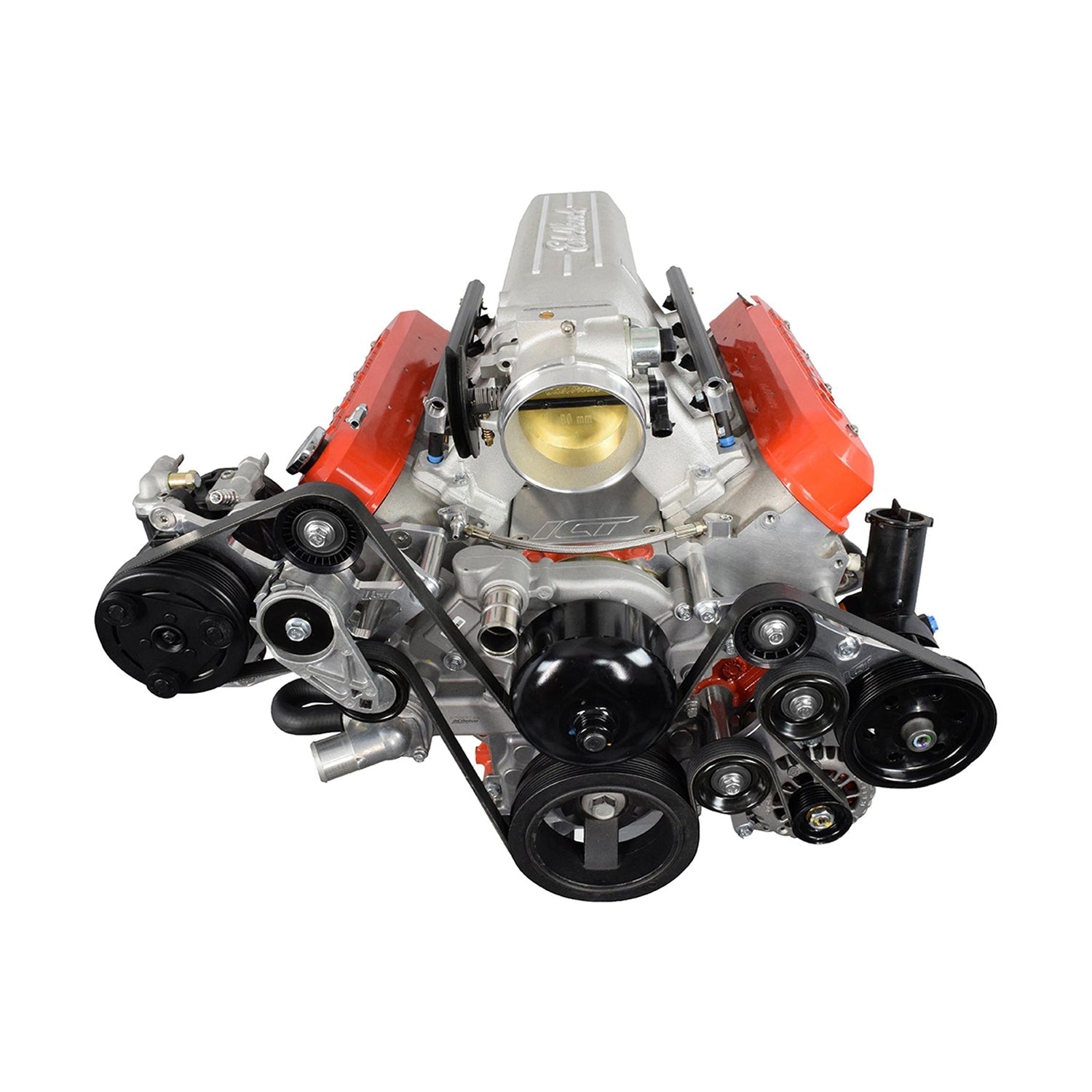

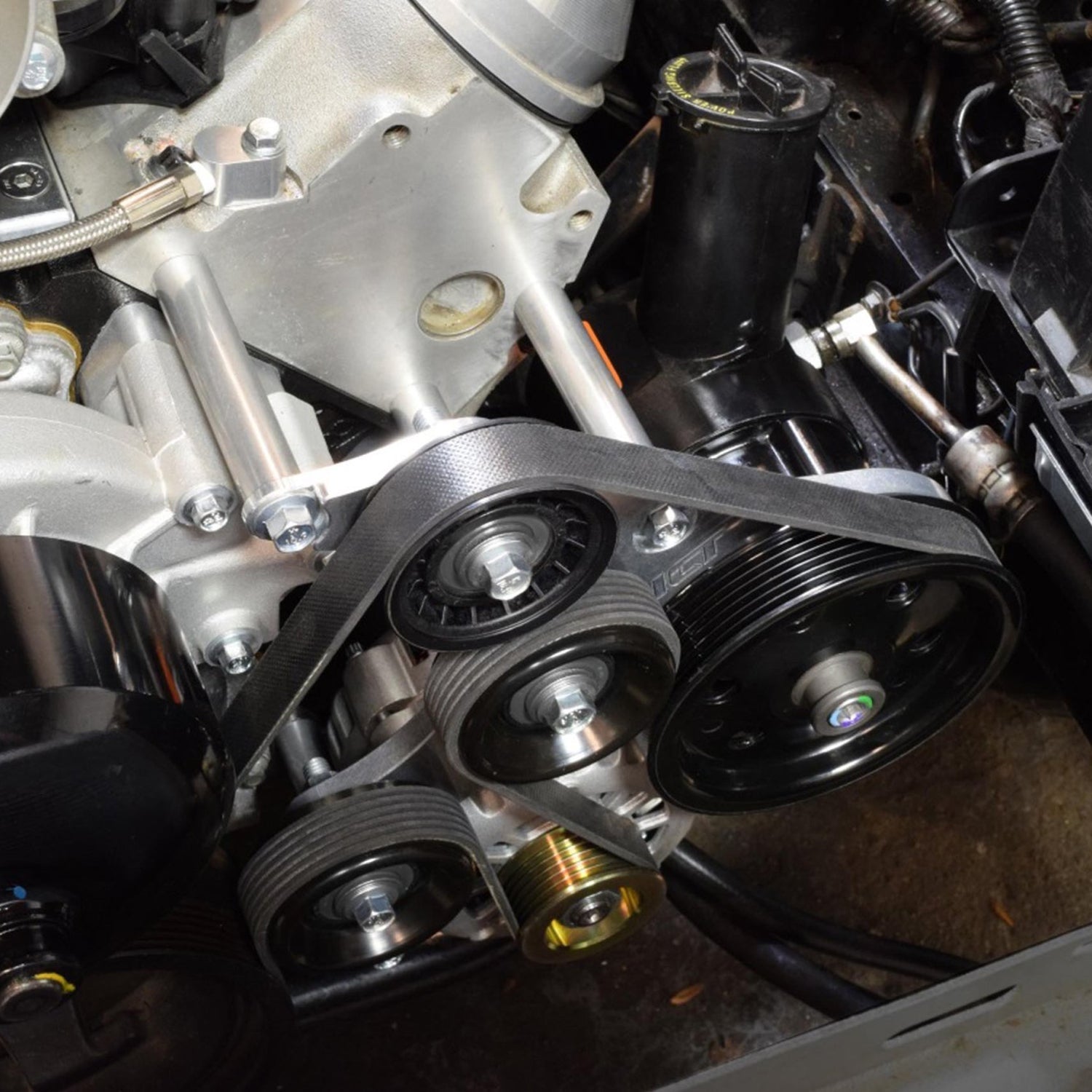

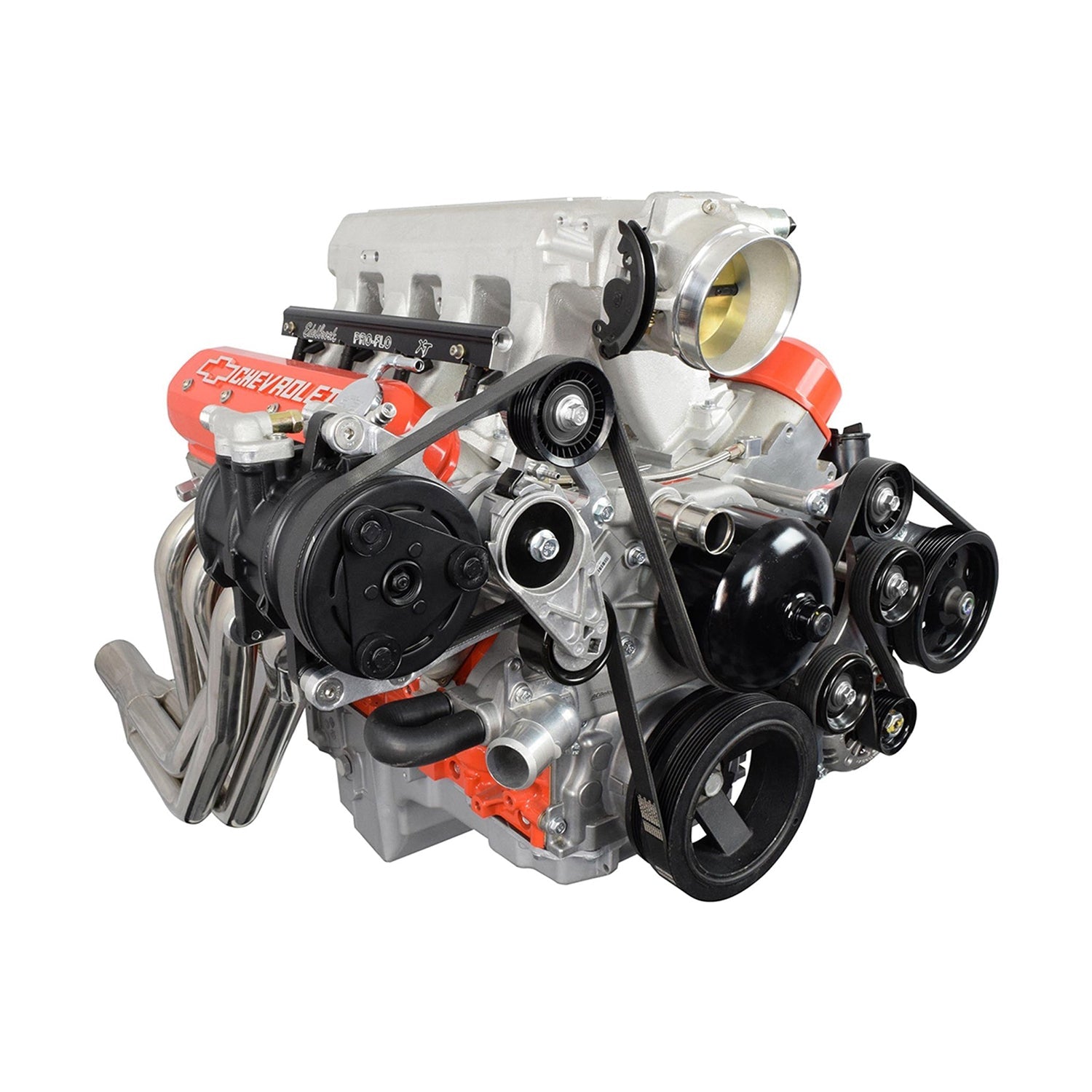

LS to Fox Body Power Steering, Alternator, and A/C Compressor Bracket Kit

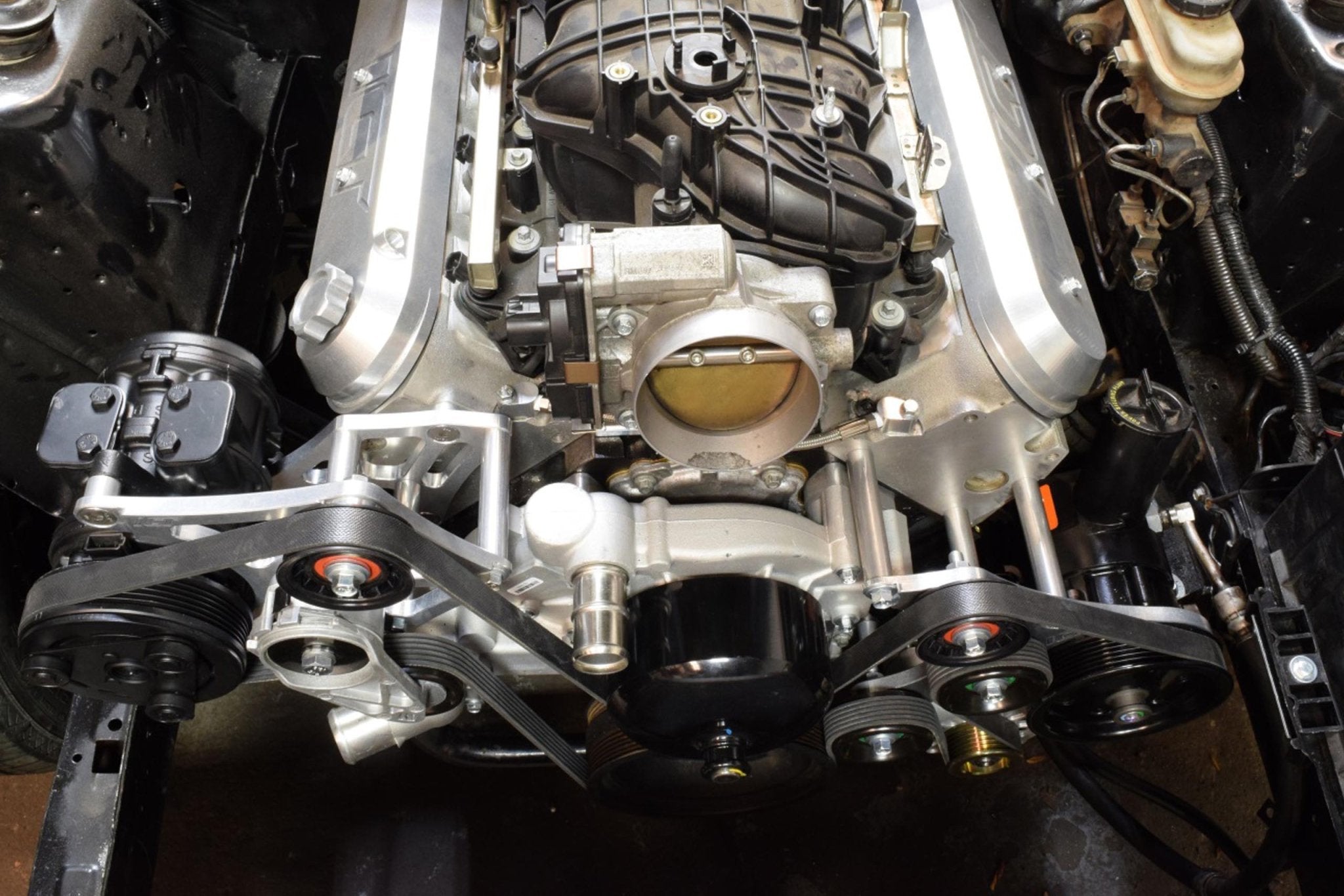

This kit is designed specifically for an LS swapped Fox Body Mustang (1979-1993)(Third Generation)

  • This kit uses the LS1 Camaro Crank Pulley

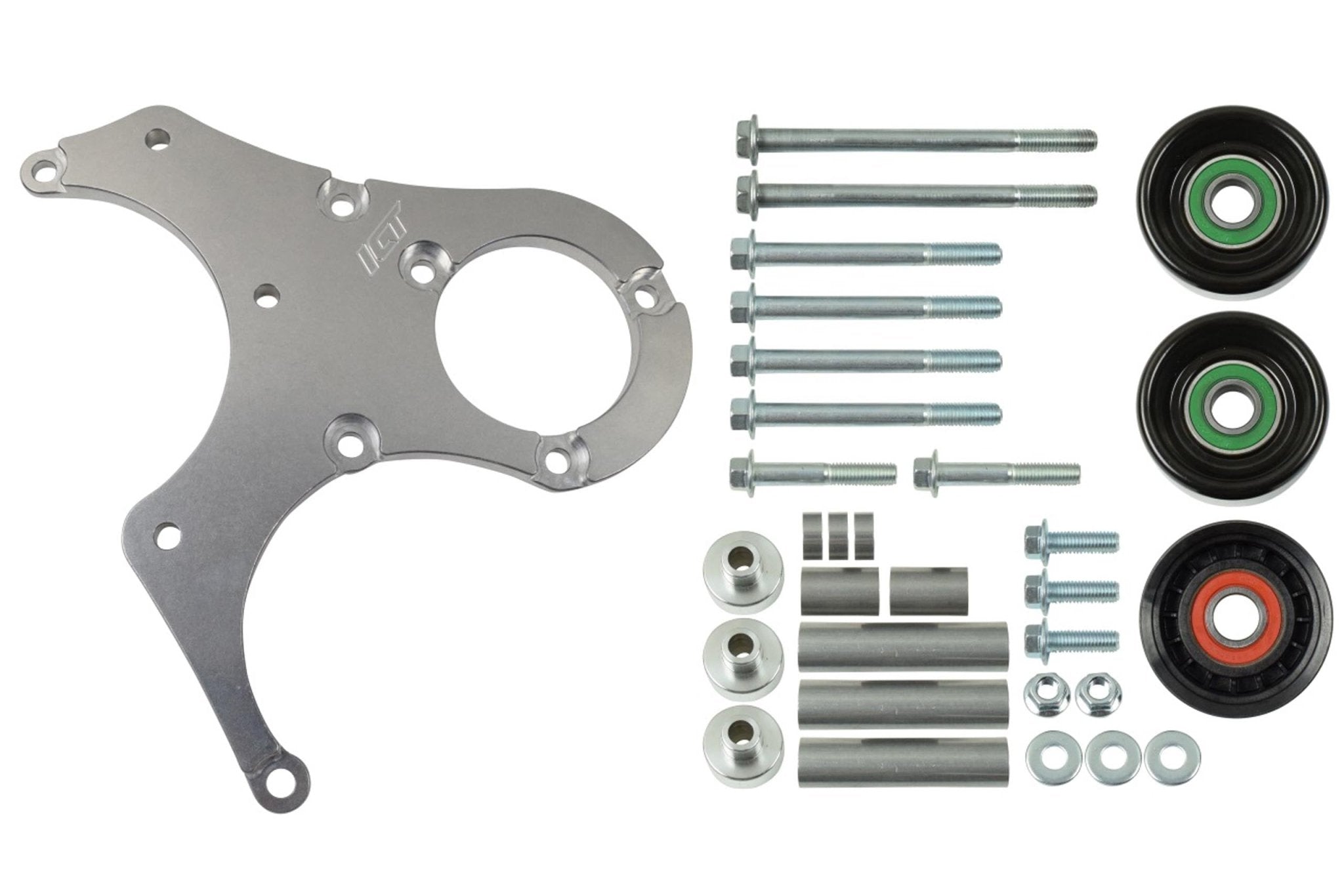

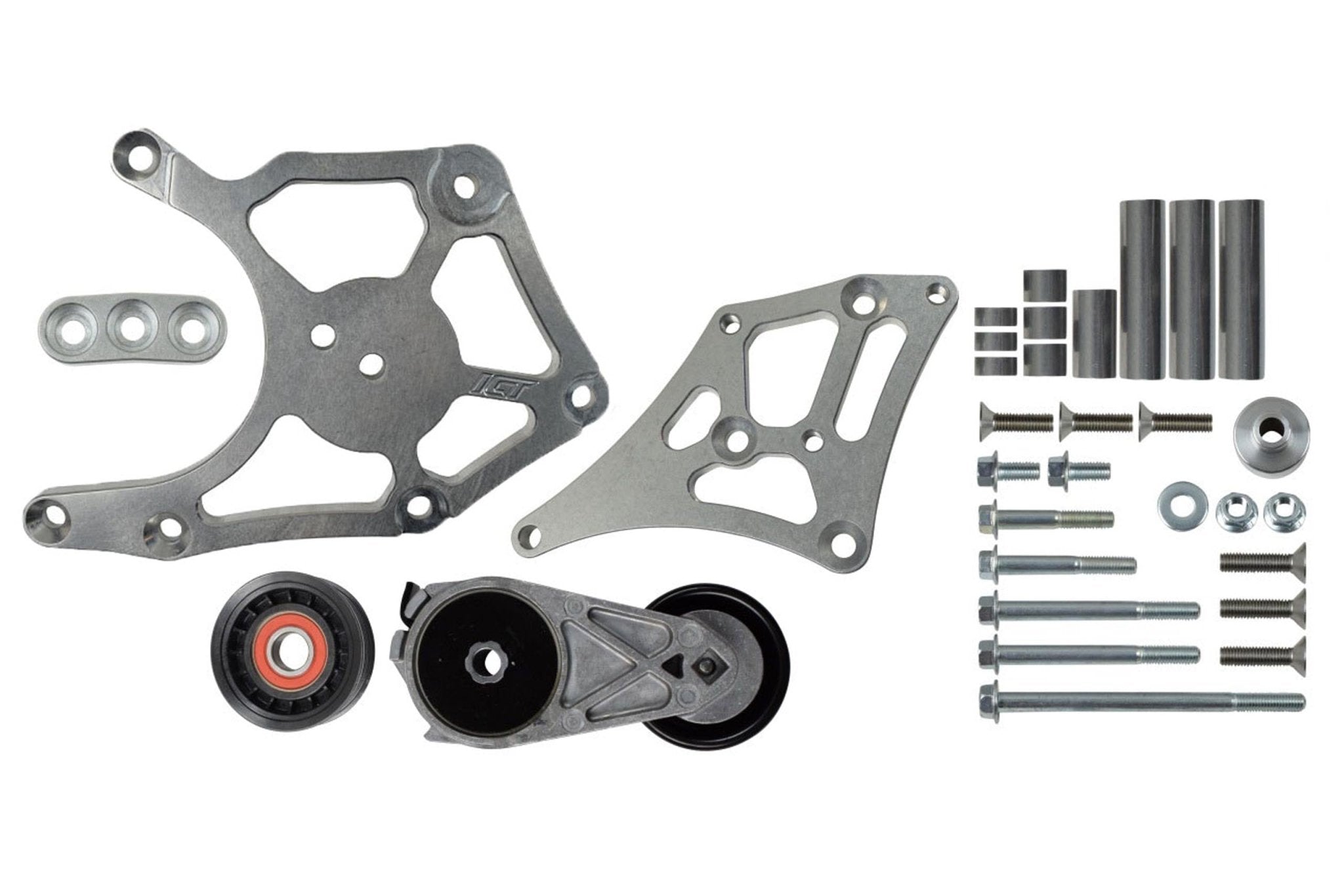

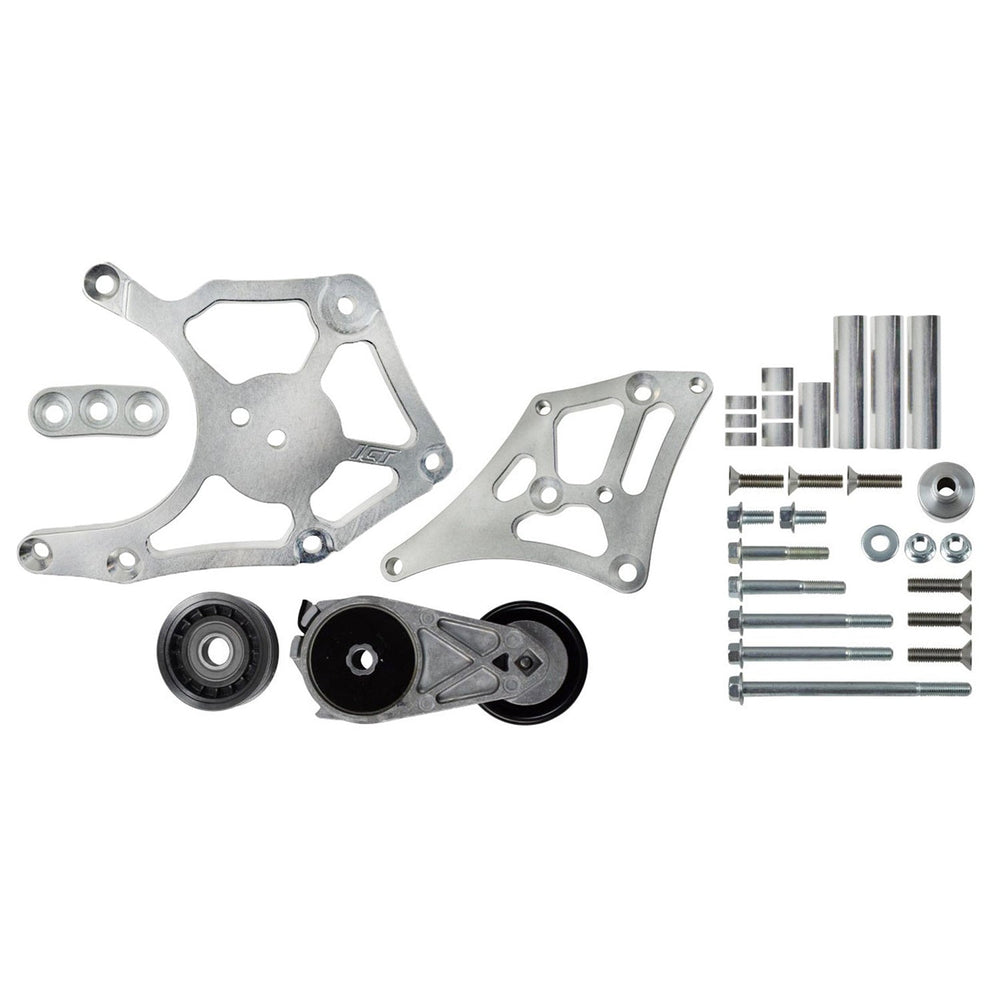

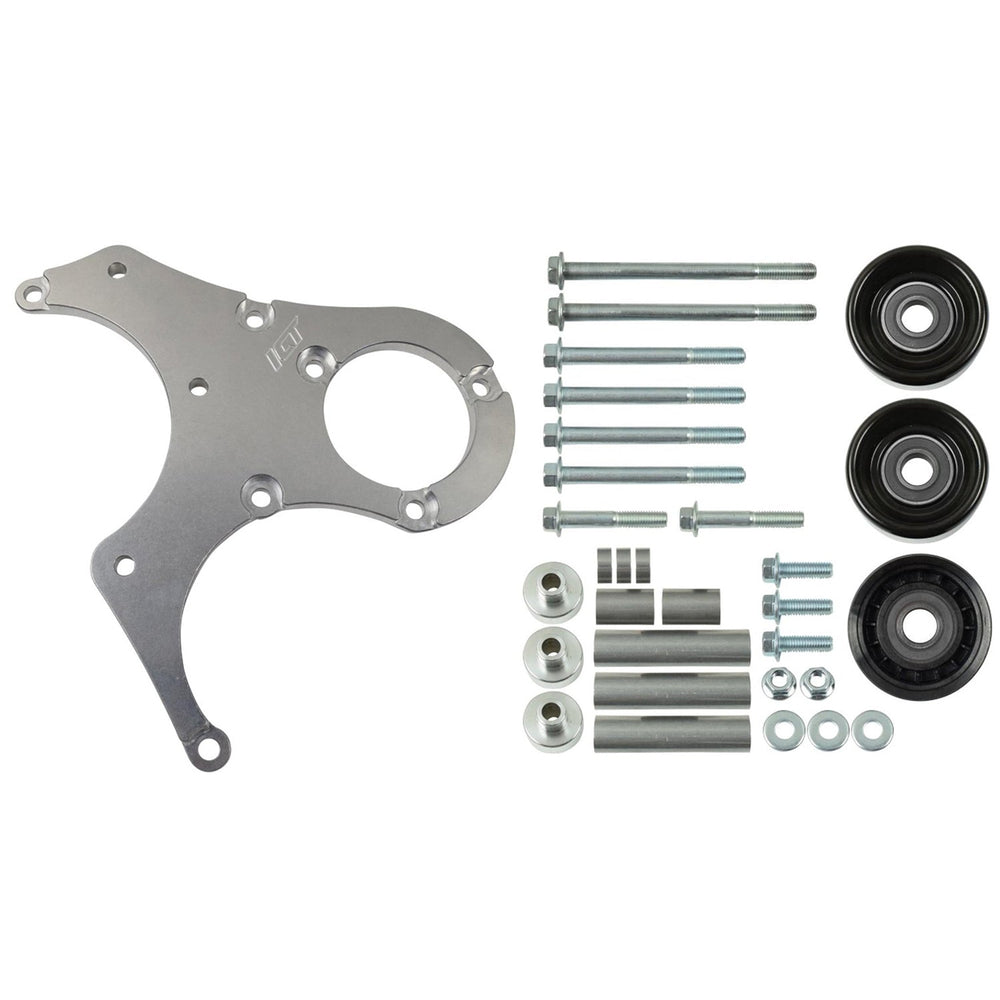

  • Includes: bracket, idler pulleys, tensioner, and mounting hardware
  • Compatible with a 1990-2004 Mustang factory power steering pump and pulley. (F1ZZ3A674BBRM & D9ZC3D673A3A)
  • **LS Alternator See Below: Suggested Part #: ICT# ALT300. ((Will not fit Corvette/CTS-V Alternators or 2010-15 Camaro) large bolt-pattern, or high amp alternators). Will only work with 105 amp LS alternators

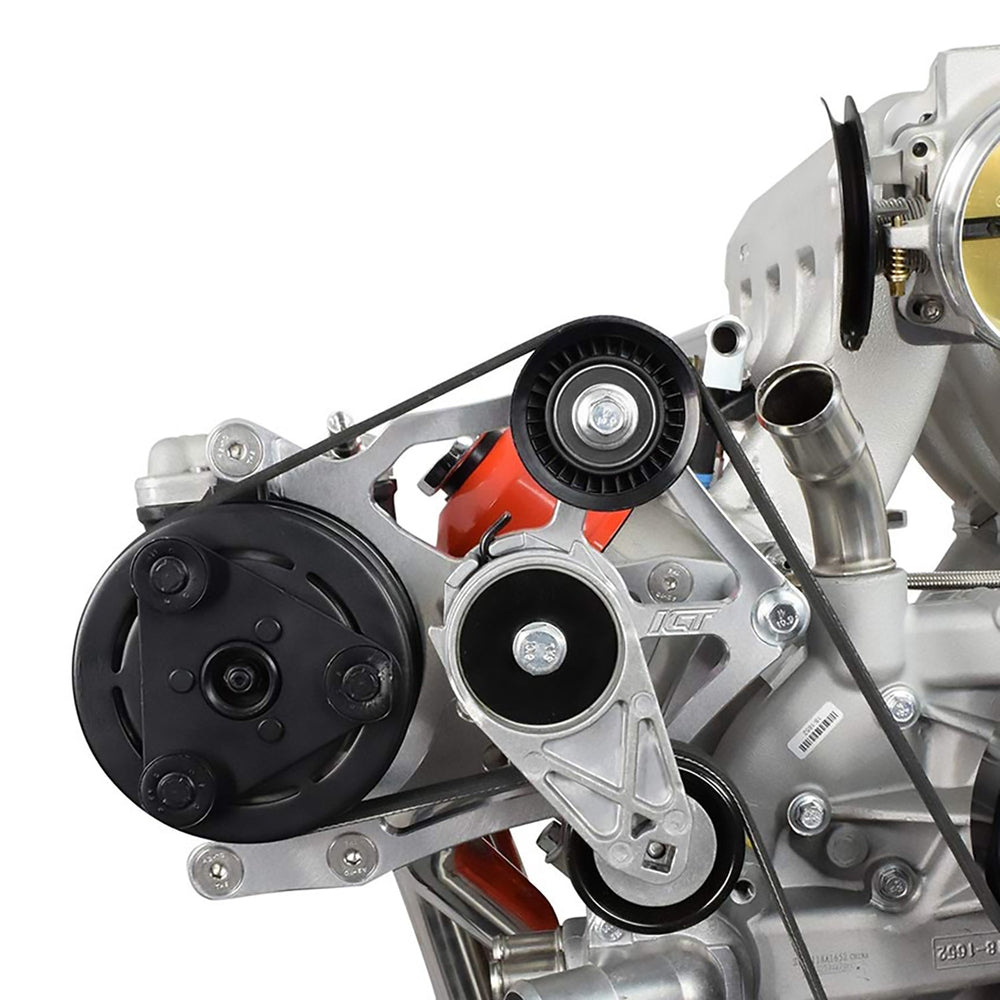

  • Compatible with a 1982-1993 Mustang Factory A/C Compressor - 6P148A (Ford "factory" installed) Compressor
  • (Does Not Work with Ford "dealer" (Installed A/C Compressor - SD709 Compressor)
  • If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
  • Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

**This can only be used on blocks with at least 2 mounting holes on the front of the block. Blocks that only have 1 mounting hole will require drill template 551445 to drill and tap the second M10-1.5mm hole. This is in a non critical part of the engine block, with no risk of drilling into the cylinder, oil, or water jacket.
WARNING Prop 65 >>

More Information

PRODUCT SPECIFICATION

ICT Manufacturer Manufacturer Part Number UPC Weight Length Inches Width Inches Height Inches Downloadable PDF for Vehicle
ICT Billet 551795-2 657814753624.0 12.65 lb No
