Placa adaptadora de alimentación de aceite de salida doble LS/LS1 1/8 de 90 grados

Precio de venta
$28.99
Precio regular
$32.99
Ahorras
12%
SKU#: 551533
En stock y listo para enviar

Descripción del Producto

Placa adaptadora de puerto de enfriador de aceite para motores GM V8 de la serie LS con SALIDA SUPERIOR doble (2) - puertos NPT de 1/8-27"

Agrega dos puertos de suministro NPT de 1/8" para líneas de alimentación de aceite del turbocompresor

  • Compatible con todos los cárteres de aceite LS, excepto los cárteres de aceite de cárter delantero GTO debido a la arquitectura del enrutamiento interno del aceite en el cárter, y los cárteres de aceite de cárter seco (LS7, LS9, etc.) y los cárteres de aceite LS4
  • Especificación de torque: 106 in lbs (NO APRIETE DEMASIADO)
  • Fabricado en Wichita, Kansas, a partir de aluminio macizo de calidad aeroespacial, producido en EE. UU.
  • Aluminio macizo de 1" de espesor

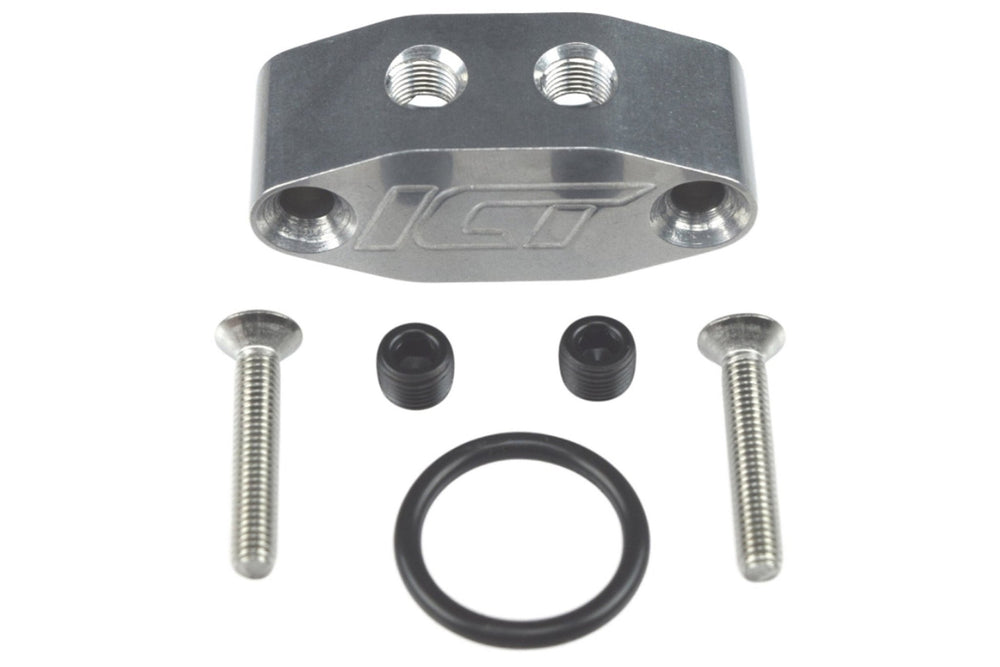

  • Incluye puerto de aceite, sello de junta tórica, dos tapones de tubería de 1/8" y pernos de montaje
  • Los puertos pueden estar orientados hacia arriba o hacia abajo.

Earn 144 Points when you buy this item.

WARNING Prop 65 >>

More Information

PRODUCT SPECIFICATION

Manufacturer Part Number UPC Weight Length Width Height Made in
ICT Billet 551533 656729845332 0.25 lb 3 in 1 in 1 in USA
